CF-120 18HP Centrifugal Pump

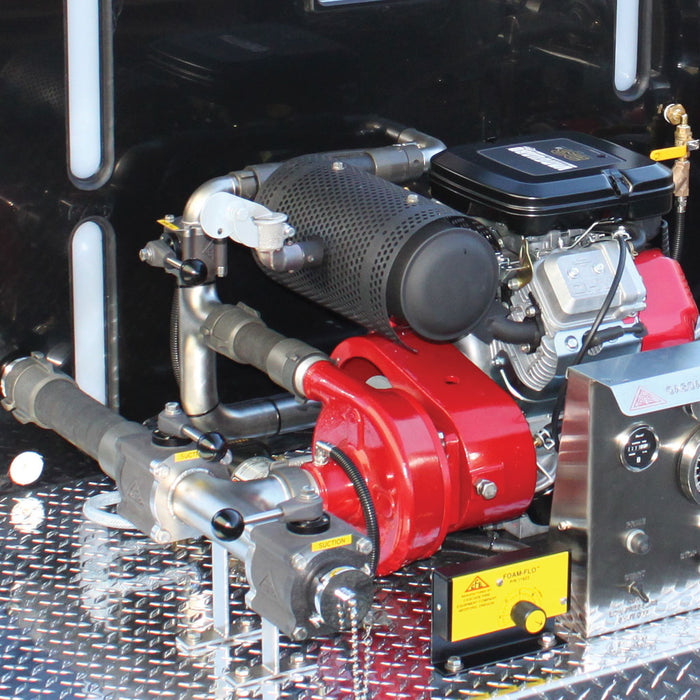

Designed and manufactured by Cascade Fire Equipment, the CF-120 is a pump ideally suited for use on Slip-On Units or as a high pressure, lightweight portable pump. The CF-120 can pump up to 120 GPM and up to 300 PSI. When equipped with a carrying base and integrated gas tank it makes a very good portable pump. An 18 HP Briggs & Stratton engine drives the pump, which meets the volumes and pressures needed in wildland firefighting. The CF-120 provides trouble-free service under firefighting conditions and replacement parts available at a reasonable price with easy installation.
Includes integrated 3-gallon gas tank, hand primer, and liquid-filled pressure gauge when used as a portable pump. The truck mount model has a ¾” thick polypropylene mounting base, remote 4-gallon gas tank with fuel line, and quick-connect hand primer.
CF-120 PERFORMANCE
|
PSI
|
50 | 100 | 150 | 200 | 250 | 300 |
| GPM | 120 | 110 | 100 | 80 | 50 | 23 |
CF-120 PUMP & ENGINE SPECIFICATIONS
|
TYPE
|
Single Stage Centrifugal |
| SUCTION | 2" NPS Male |
| DISCHARGE | 1-½” NH Male |
| VOLUTE/BODY | High strength aluminum alloy, hard coat anodized for extra corrosion resistance |
| IMPELLER | Fully enclosed all bronze construction, double hubs to balance hydraulic thrust, balanced to prevent vibration |
| WEAR RING | Bronze, long-wearing |
| SEAL | Carbon/ceramic mechanical |
| BEARINGS | Sealed ball bearings |
| PRIMER | Manual |
| DIMENSIONS |
30-¼” (24” without carry frame) L x 19-½” W x 18-½” (17-¼” without carry frame) |
| ENGINE | Briggs & Stratton Vanguard V Twin air-cooled, overhead valve design |
| OUTPUT | 3600 RPM, 4 cycle |
| STARTER | 12 Volt electric and manual recoil |
| LUBE | Full pressure lubrication system with automotive style filter |
