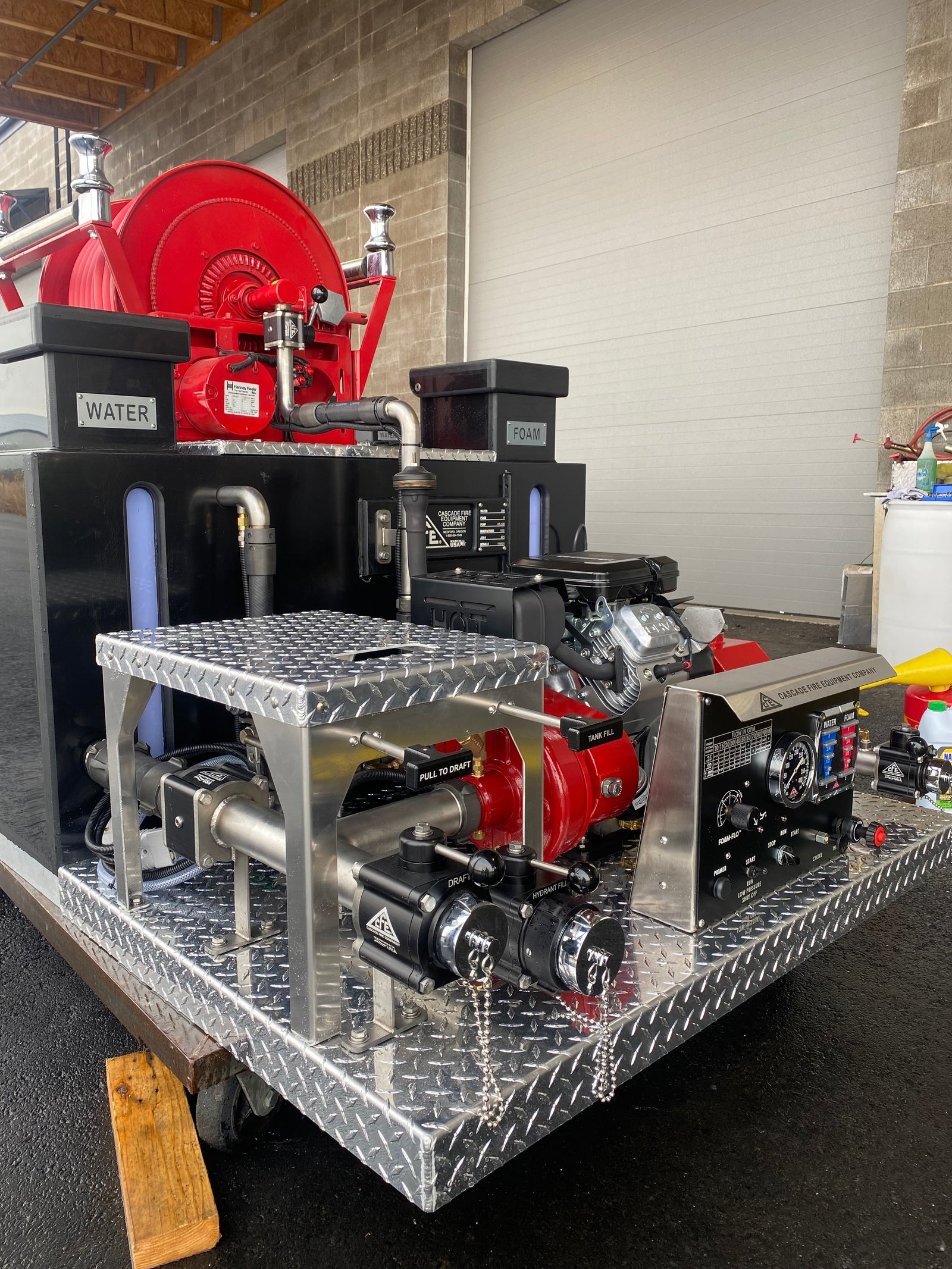

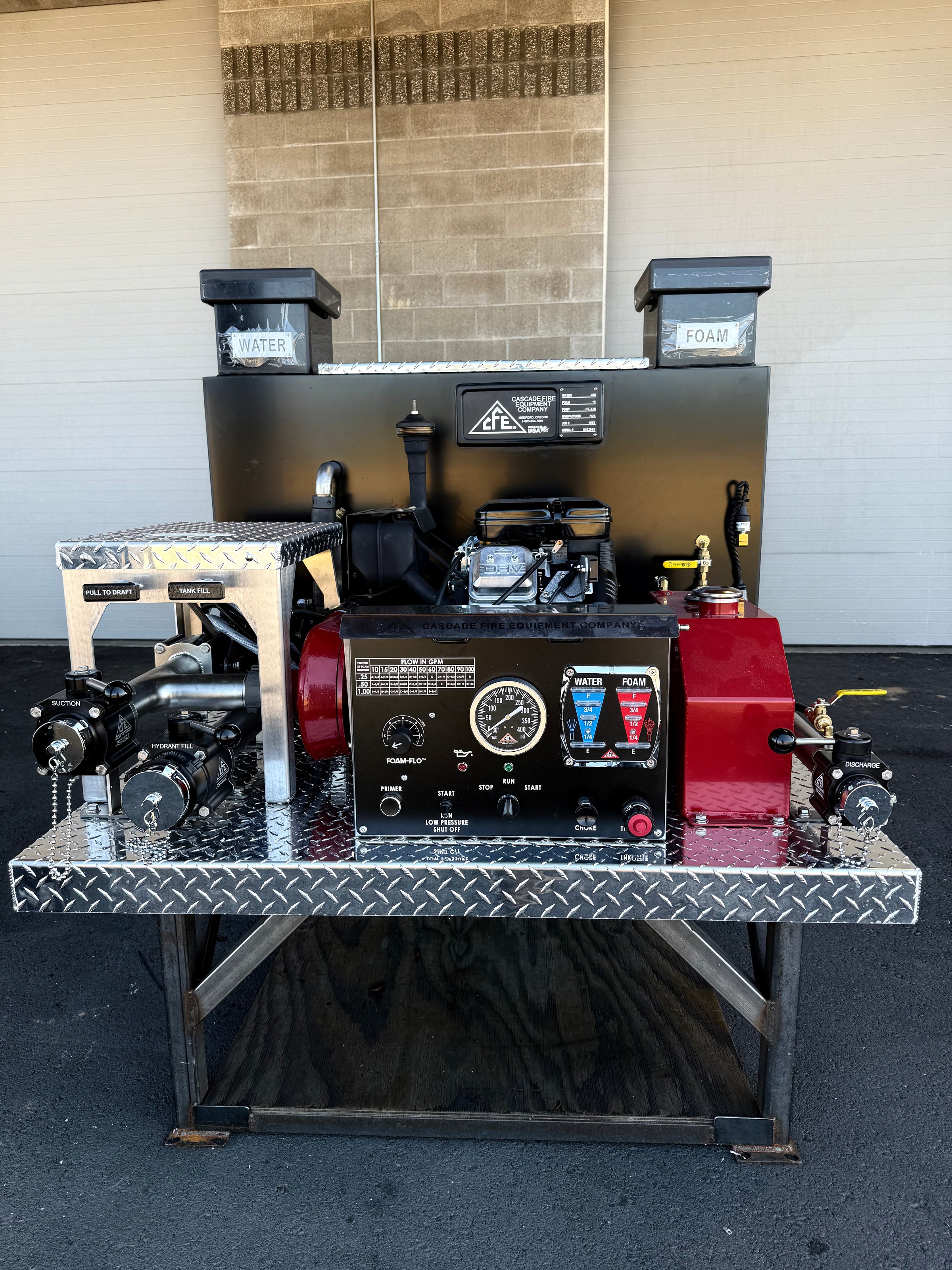

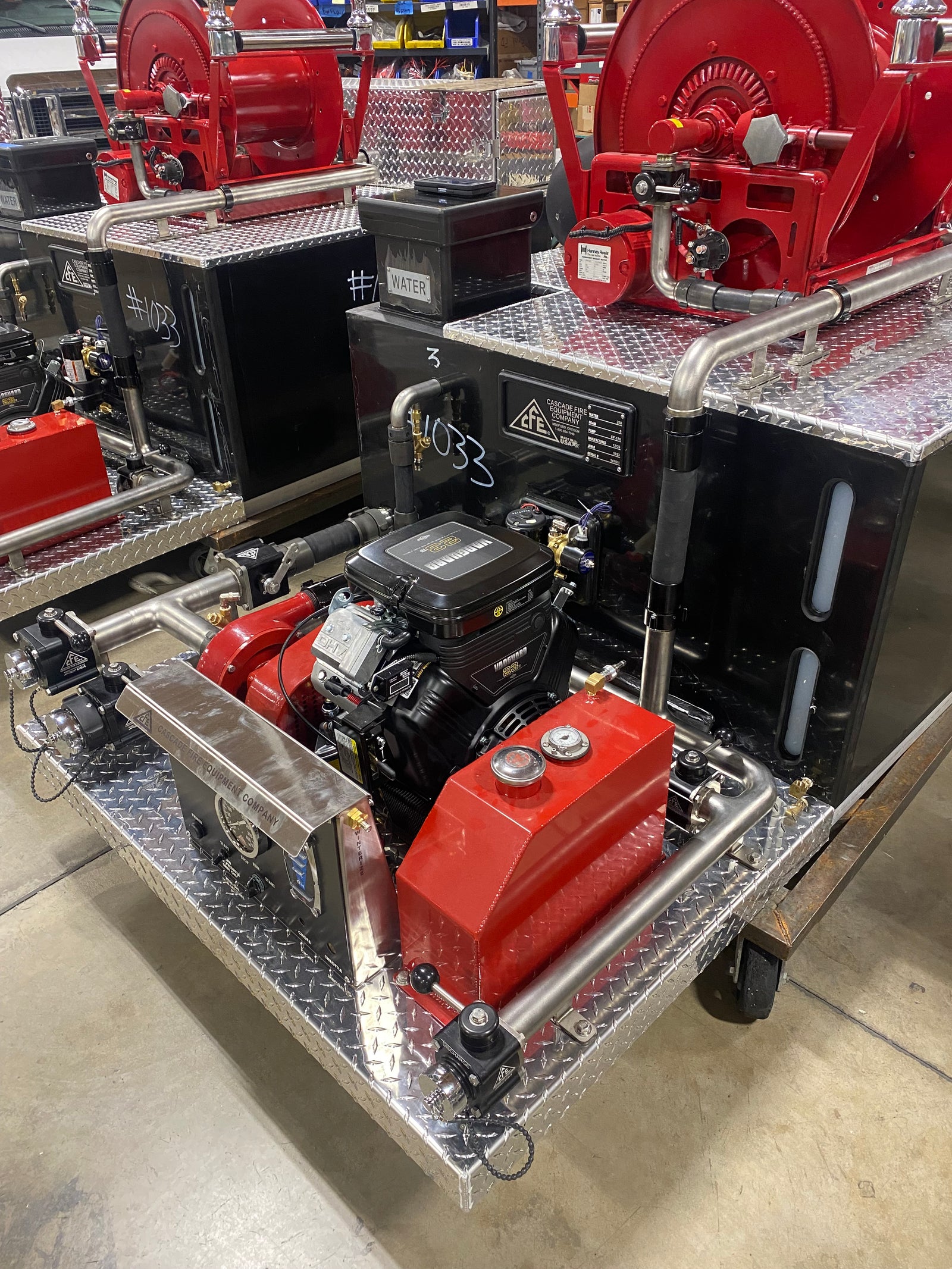

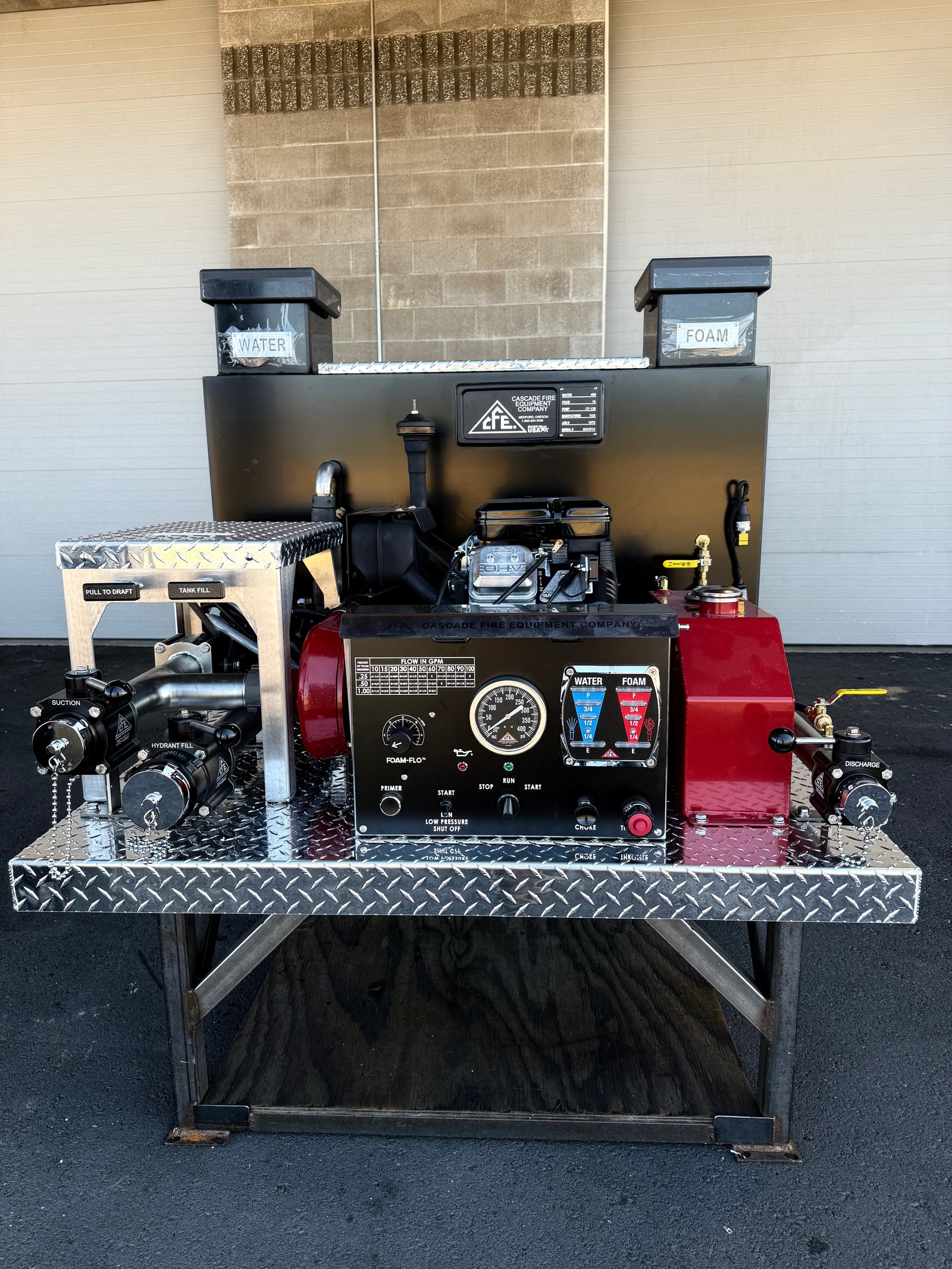

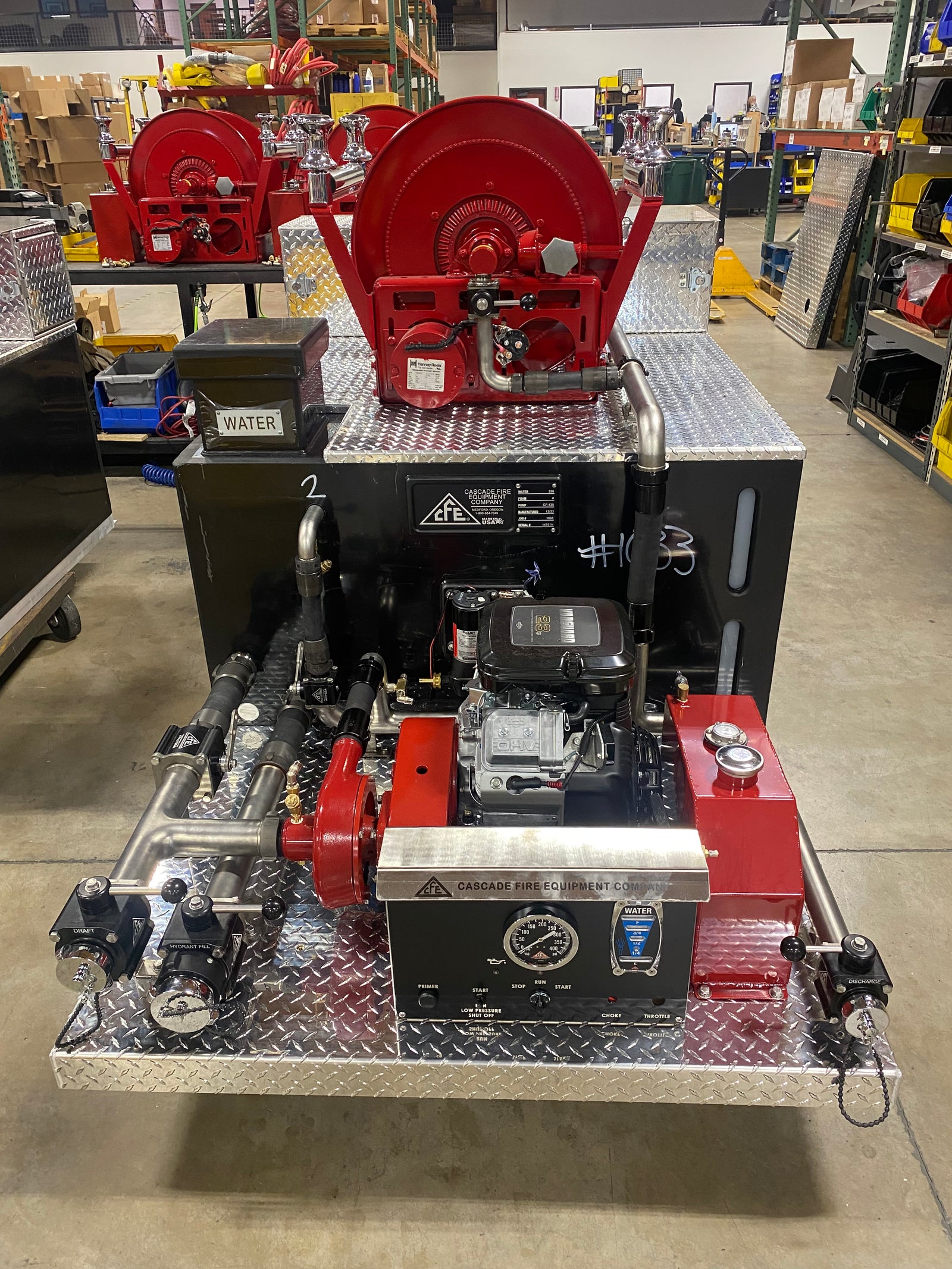

Slip-On Units

Standard features

• Polypropylene Tank: Manufactured in house and includes vent, manual fill towers
• CF-120 Single Stage Pump - pumps up to 120 GPM and 300 PSI and meets wildland firefighting volumes and pressures. Attached to 18 HP Briggs & Stratton Motor
• Hannay Hose Reel - painted steel reel with electric rewind. Comes with 200 ft. of hose. a 1" shutoff and a 1" Ranger nozzle

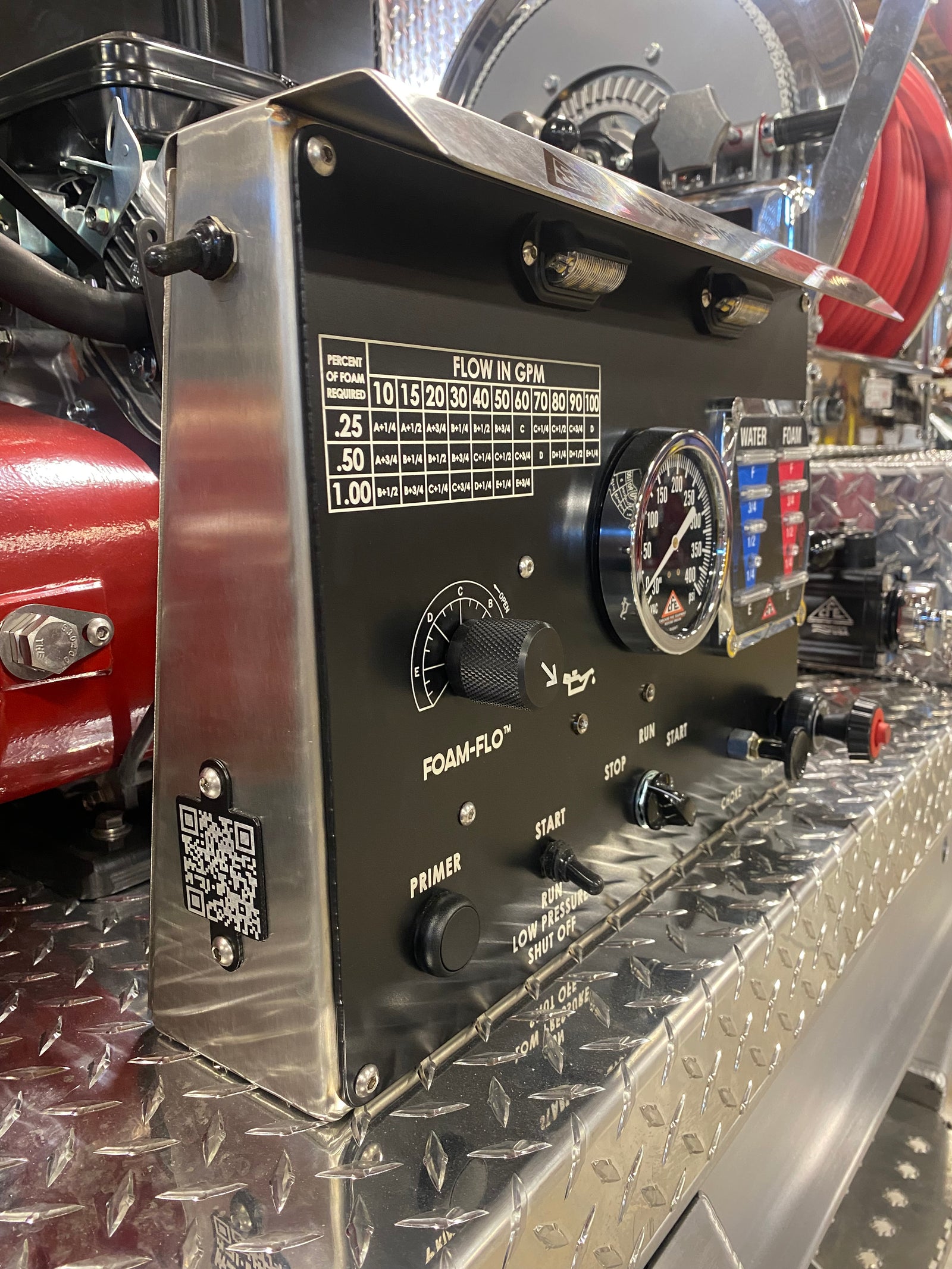

• Control Panel - Stainless steel housing with a removable powder coated faceplate. All text is fiber laser finished. Includes electronic liquid level gauges, panel light, hour meter, electric primer, auto shut-off, engine starter switch, pressure gauge, choke and throttle.
• 2” square aluminum tubular frame fully supports tank and platform
• Surface covered with 0.125 aluminum diamond plate. All edges are turned, welded and finished
• Cascade manufactured Fire service grade slip-out style valves bolted to stainless steel flange. All valves identified with a laser finished tag

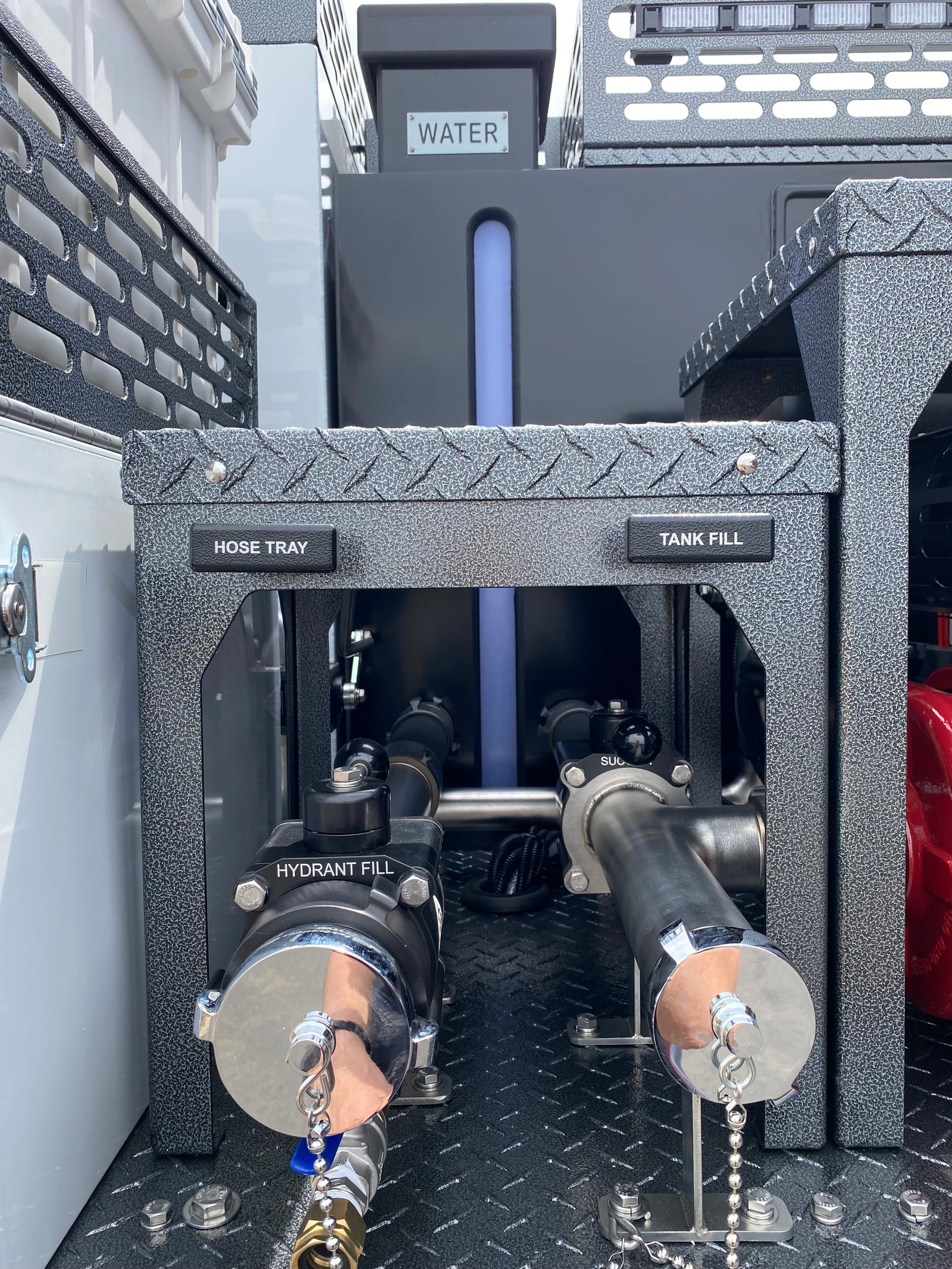

• Overboard suction port and auxiliary valved discharge with chrome cap and chain
• Full-Flo stainless steel plumbing: 304 seamless stainless steel–welded. All manifolds are single piece with no visible weld marks and a smooth finish.
• High pressure hose with reusable expansion ring couplings and bar-way style couplings
• Winterization system, complete installation kit and instruction manual
