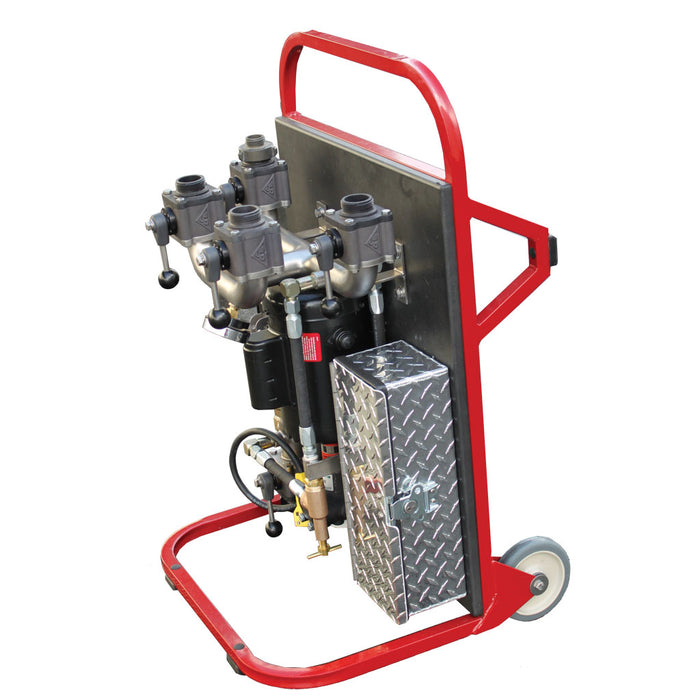

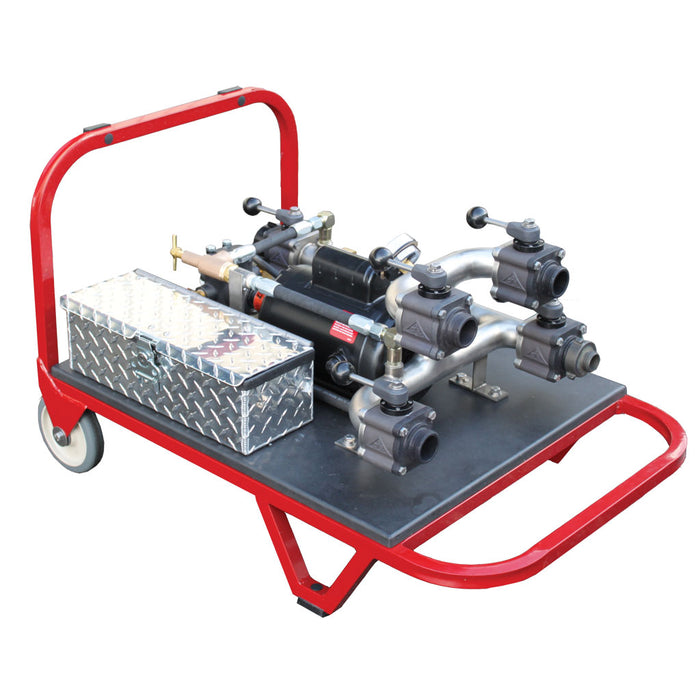

Cascade Hose Tester
EXTRA SHIPPING CHARGE APPLIES TO EACH TESTER ORDERED.
Cascade Fire Hose Test Pumps are designed to quickly and safely test large quantities of hose to standards set forth by the National Fire Protection Association (NFPA) and the Rubber Manufacturer’s Association (RMA). Cascade Test Pumps are built for professional service use by engineers, inspectors, testing laboratories, forestry agencies and fire departments where accuracy is imperative.

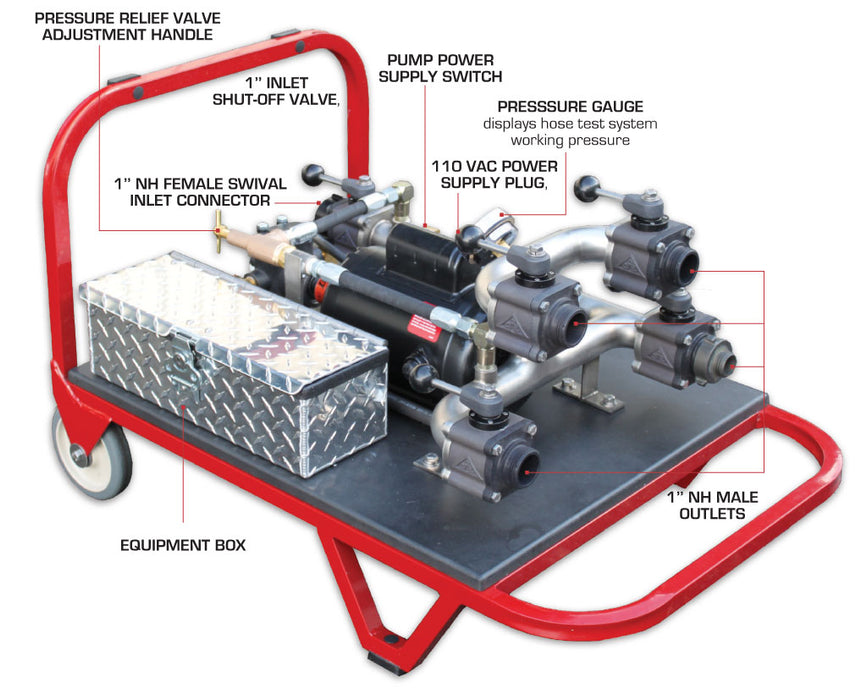

FEATURES OF CASCADE FIRE HOSE TEST PUMPS
- Four independently valved 1-½” NST discharges
- Inline 1-½” valve for static testing of hose and tester
- Test up to 4 lines simultaneously
- Use reducers or increasers to test hoses from 1” to 6”
- Regulating Valve allows pressure adjustments up to 500 PSI
- Silicon-filled Gauge permits easy reading of pressure setting
- Stainless steel manifold and fasteners with aluminum valves
- Baked powder coat finish
- GFCI
- Equipment box
-
Convenient dolly style with wheels
SPECIFICATIONS
| DIMENSIONS | 24-½" x 39" x 24" |
| WEIGHT | 135 lbs. |
| MOTOR | 1 HP, heavy duty 115V repulsion-induction type, fully enclosed and fan cooled |
| PUMP | High pressure twin piston, delivers 3 GPM at 500 PSI |
| VALVES | Aluminum Cascade valves |
| GAUGE | 0-600 PSI liquid filled |
| FRAME | Mild steel with baked powder coat finish |
PLEASE NOTE:
Hose testing is recommended after extensive use, for acceptance tests, annual maintenance, or after repairs.
