FoamPro® 1601 Foam Proportioning System & Low-Level Switch
The FoamPro® 1601 is an electronically controlled, discharge-side Class A foam proportioning system for slip-on pumpers, brush rigs and other fire apparatus. It measures water flow and injects concentrate to maintain the selected percentage as flow changes. Select the FoamPro 1601 System (SKU 11914) or the separately sold Side-Mount Low-Level Switch (SKU 11915). Each selection is a separate item.
Availability note: FoamPro discontinued the legacy S107-1601 model on August 14, 2026. SKU 11914 is listed as manufacturer part S107-1601-1.0. Contact Cascade Fire Equipment to confirm remaining availability before ordering. The specifications below apply to this legacy 1601 model.
Ordering options
| Item | SKU | Manufacturer part |
|---|---|---|

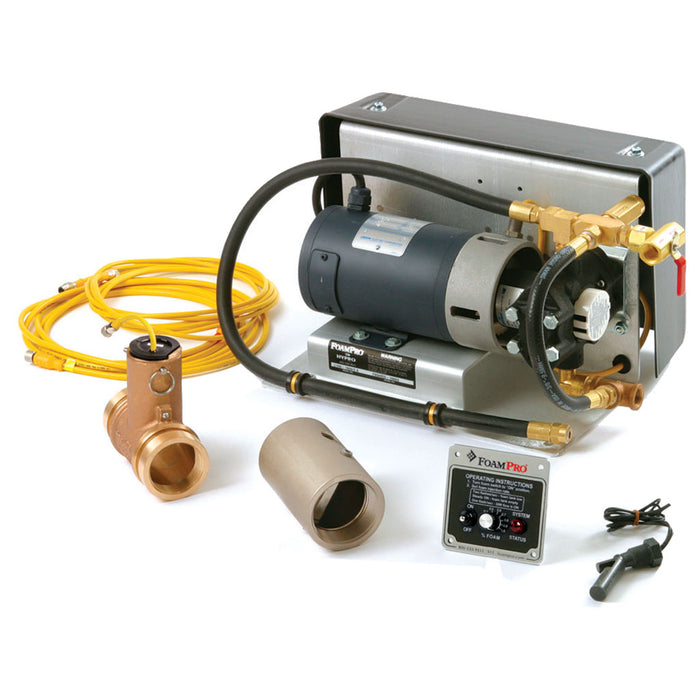

| FoamPro 1601 System | 11914 | S107-1601-1.0 |
| Side-Mount Low-Level Switch | 11915 | 2510-0032 |
Low-level sensor sold separately: FoamPro’s 1600/1601 installation manual specifies that one low-level sensor is required and is not packaged with the system. SKU 11915 is the side-mount sensor identified in that manual as part 2510-0032. Selecting the switch purchases the sensor only.
FoamPro 1601 specifications
| Specification | Details |
|---|---|
| Foam concentrate | Class A |
| Injection percentage | 0.1%–1.0% |
| Foam output | Up to 1.0 GPM at 200 PSI (1601 model) |
| Maximum system pressure | 400 PSI |
| Concentrate lift | Up to 3 ft |
| Pump | Twin-plunger, electrically driven |
| Injection | Discharge side; no in-line waterway restriction |
Controls and options
- On/off and foam percentage selection on control module
- Low concentrate warning and simulated-flow function
- Optional remote start/stop and related accessories depend on configuration

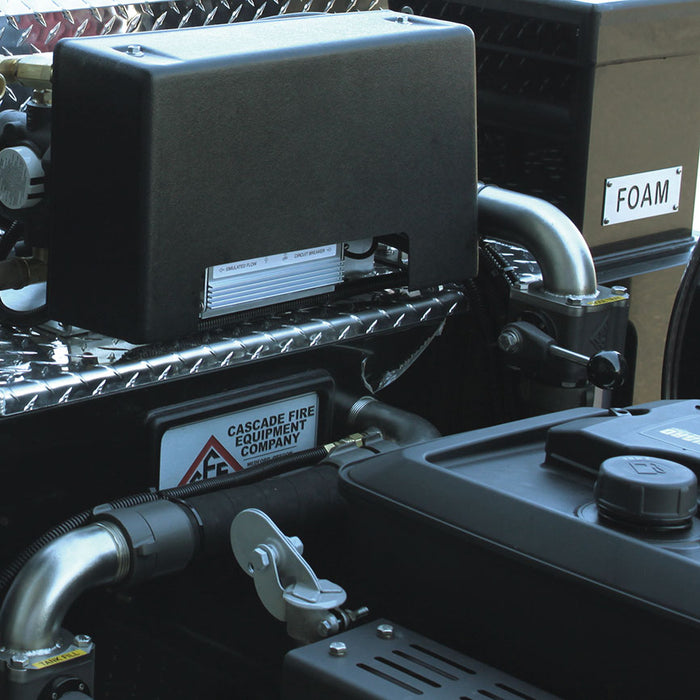

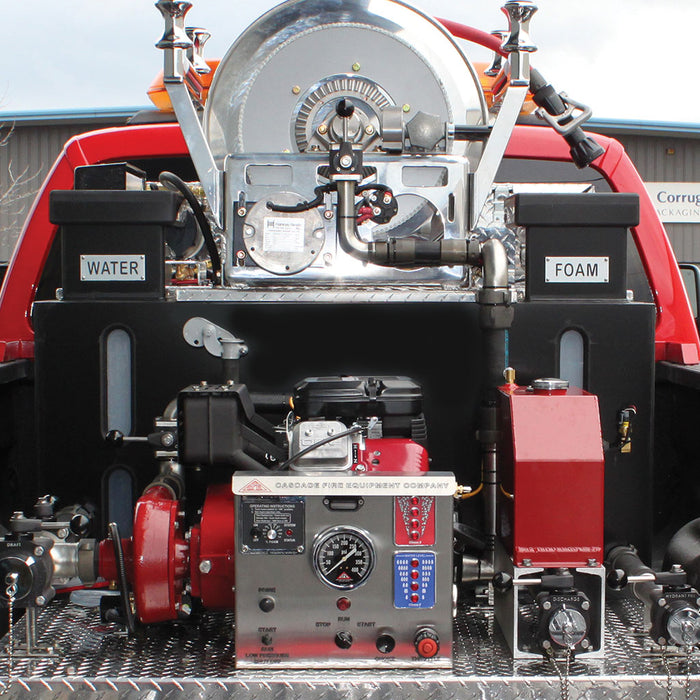

Confirm the electrical voltage and exact component package for S107-1601-1.0 before installation. Installation photos show example apparatus arrangements; tanks, piping and other apparatus equipment shown are not an itemized list of supplied components. Installation requires additional installer-supplied piping, hoses, wiring and fittings.
FoamPro product change notice | 1600/1601 installation manual
