Two-way power. Impossible for hydraulics, exemplary for EDD.
By providing equivalent power in both opening and closing, the FX-Series are designed to maximise cutting and spreading performance.

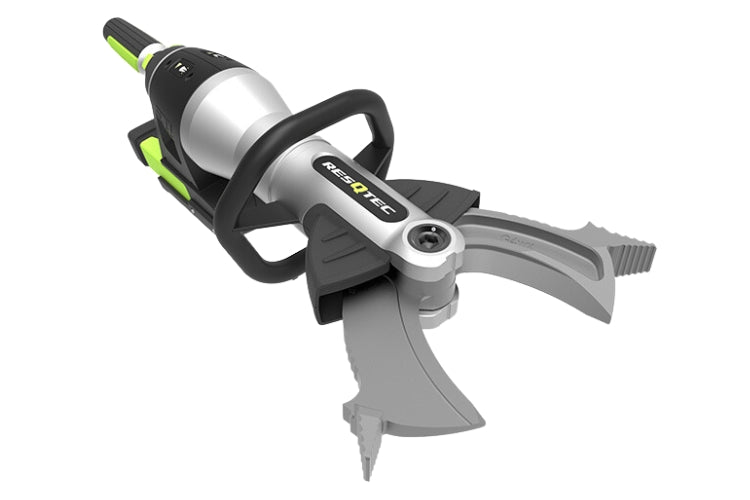

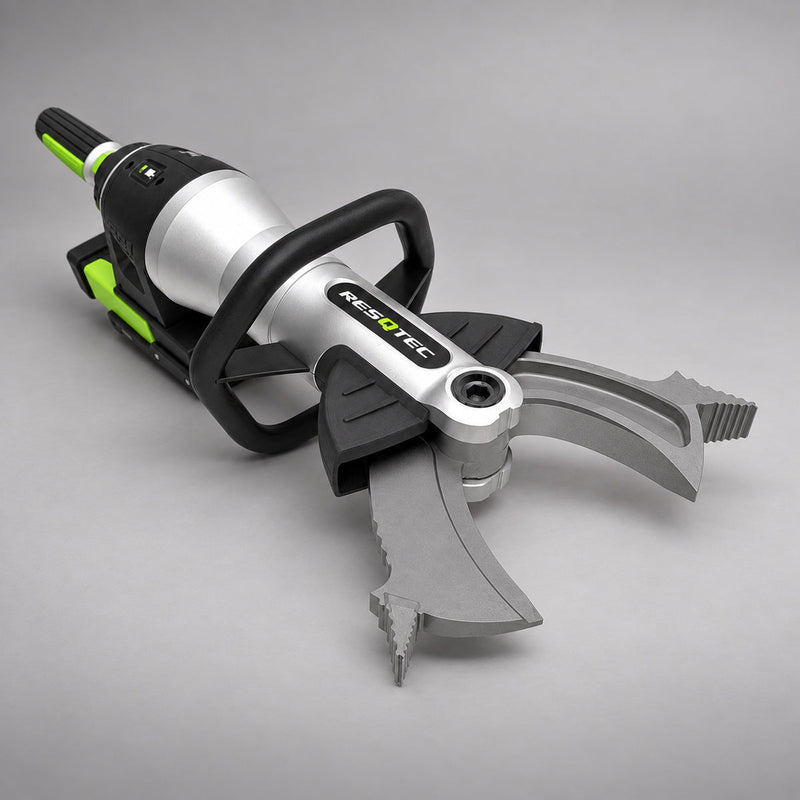

| G4WX EDD COMBI TOOL | |
| Operational weight (incl. PP1) | 17.0 kg (±0.2) |
| Weight (excl. Battery) | 16.0 kg (±0.2) |
| Max. cutting opening | 156 mm |
| Reach | 128 mm |
| Max. cutting force | 554 kN / 56.5 ton |
| IP rating | IP 54 |
| EN 13204 classification | BK33.8-369F-17.0 |
| NFPA 1936 | Compliant |

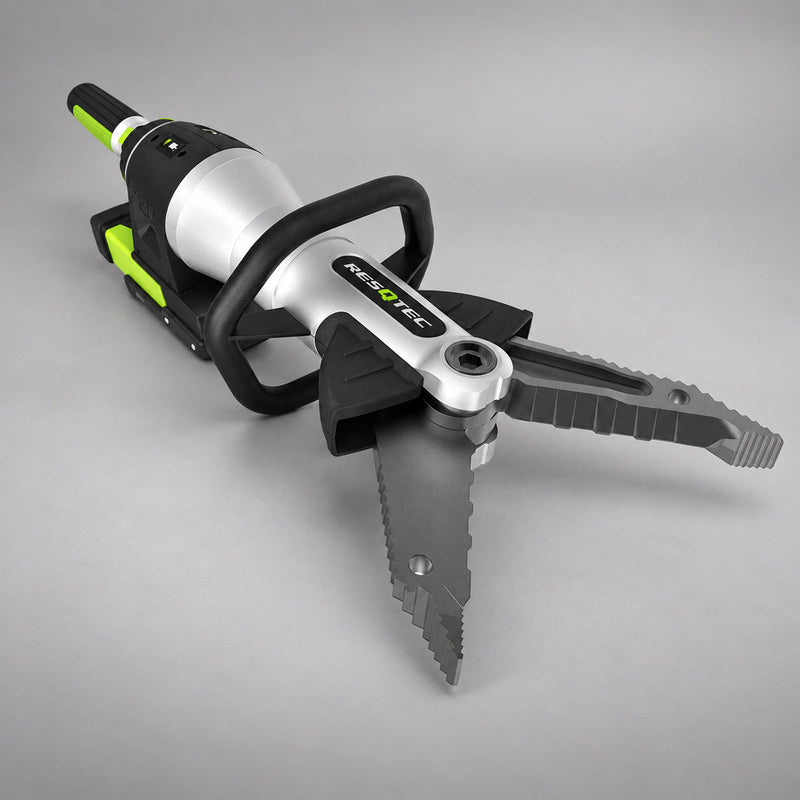

| FX4 DJ EDD COMBI TOOL | |
| Operational weight (incl. PP1) | 17.4 kg (±0.2) |
| Weight (excl. Battery) | 16.4 kg (±0.2) |
| Spreading force at base of blade (last tooth) | 117 -1075 kN/ 11.9 -110 ton |
| Pulling force (in pulling eyes) | 50.6 –59.7 kN / 5.2 –6.1 ton |
| Squeezing force 25 mm from tips | 38.8 –43.6 kN/ 4.0 –4.4 ton |
| Max. cutting force | 725 kN / 73.9 ton |
| IP rating | IP 54 |
| EN 13204 classification | CK32.5-354H-17.4 |
| NFPA 1936 | Compliant |

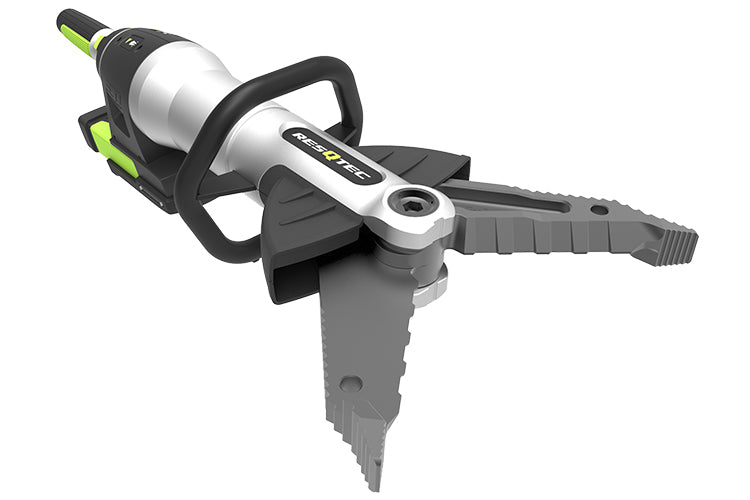

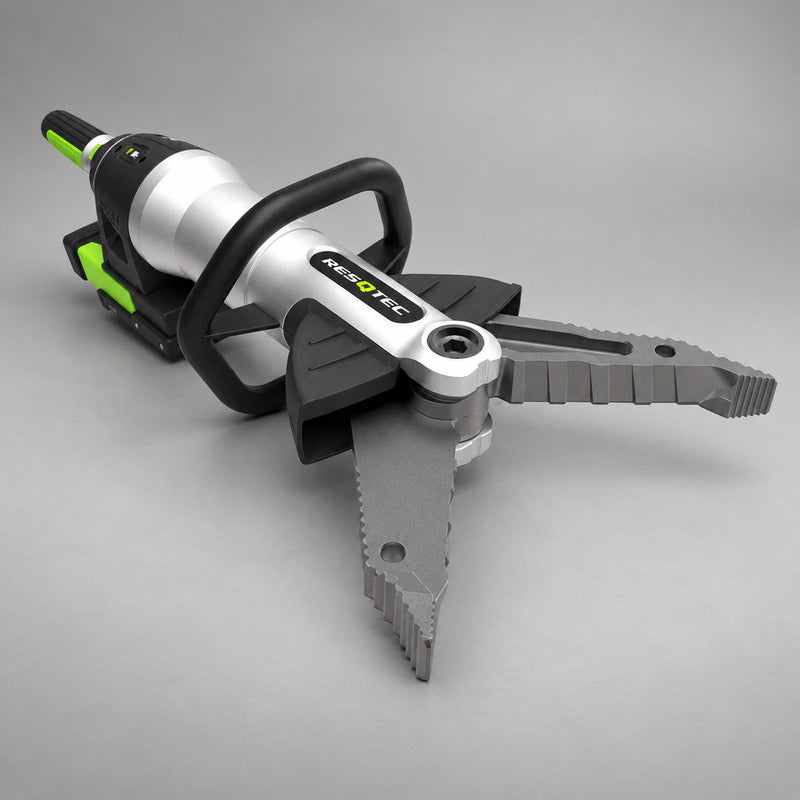

| FX6 DJ EDD COMBI TOOL | |
| Operational weight (incl. PP1) | 21.4 kg (±0.2) |
| Weight (excl. Battery) | 20.8 kg (±0.2) |
| Spreading force at base of blade (last tooth) | 107 - 1357 kN / 10.9 -138.3 ton |
| Pulling force (in pulling eyes) | 65.9 - 82 kN / 6.7 – 8.4 ton |
| Squeezing force 25 mm from tips | 47.2 – 55.2 kN / 4.8 – 5.6 ton |
| Max. cutting force | 1107 kN / 112.8 ton |
| IP rating | IP 54 |
| EN 13204 classification | CK44.8-432J-21.4 |
| NFPA 1936 | Compliant |
