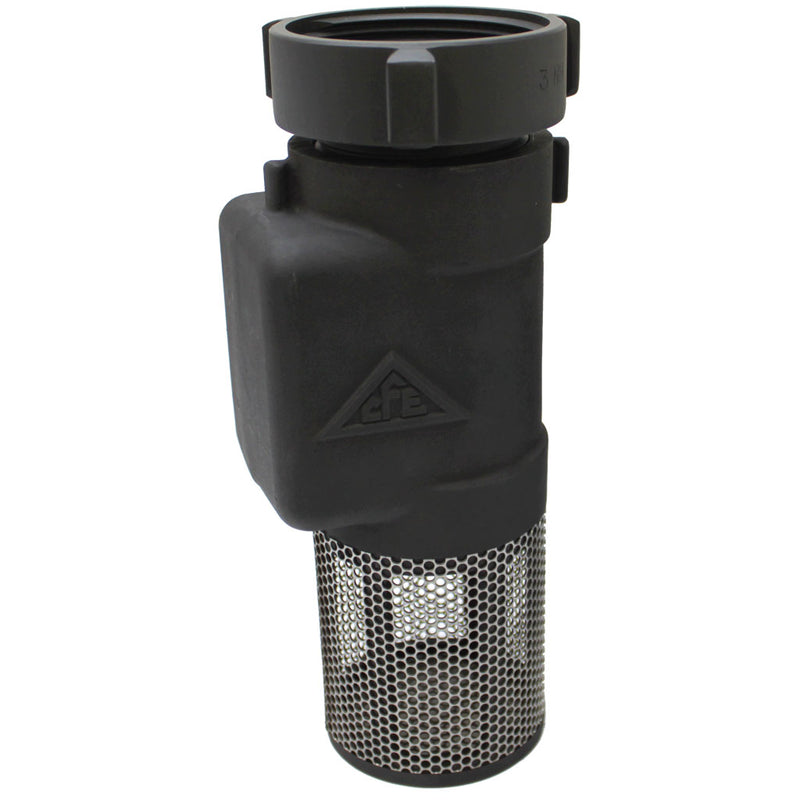

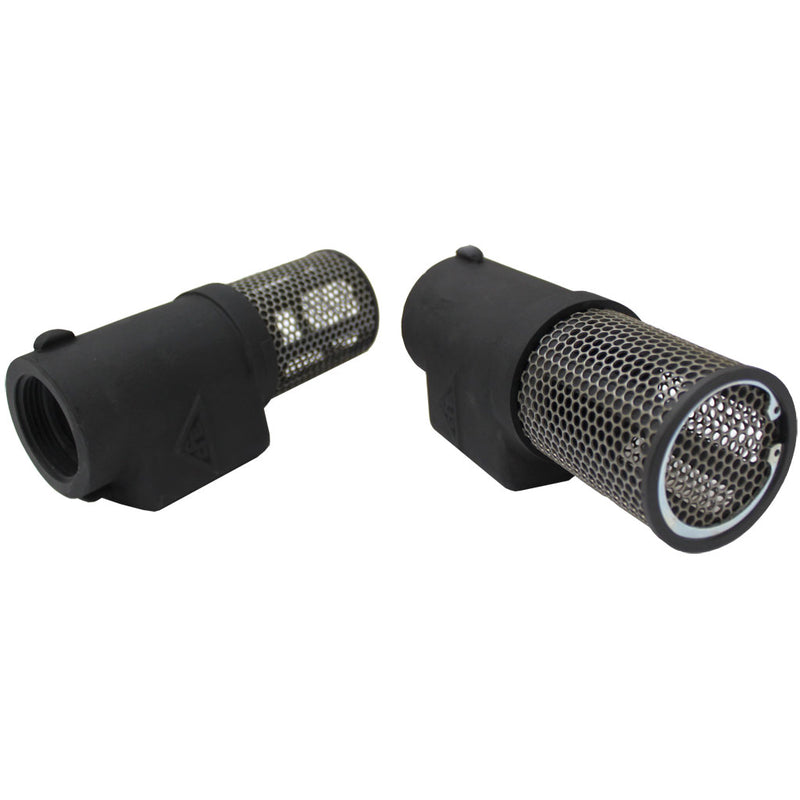

Cascade Fire Equipment manufactures Foot Valves & Strainers in 1-1/2”, 2”, 2-1/2”, and 3” threads. A full flow clapper valve assures maximum flows with no restriction. Adhered to the end of suction hose for drafting, the valve assures that the pump does not lose its prime and holds its prime once the pump is turned off.


FEATURES OF CASCADE FOOT VALVE & STAINERS

  • Manufactured from hard anodized aluminum
  • Reinforced stainless steel screen



SIZE DIMENSIONS WEIGHT
1-1/2" 7-1/2" x 3-1/2" 1.6 lbs.
2" 8-1/2" x 3-1/2" 1.65 lbs.
2-1/2" 10" x 2-1/2" 3.05 lbs.
3" 11-15/16" x 4-1/2" 3.85 lbs.

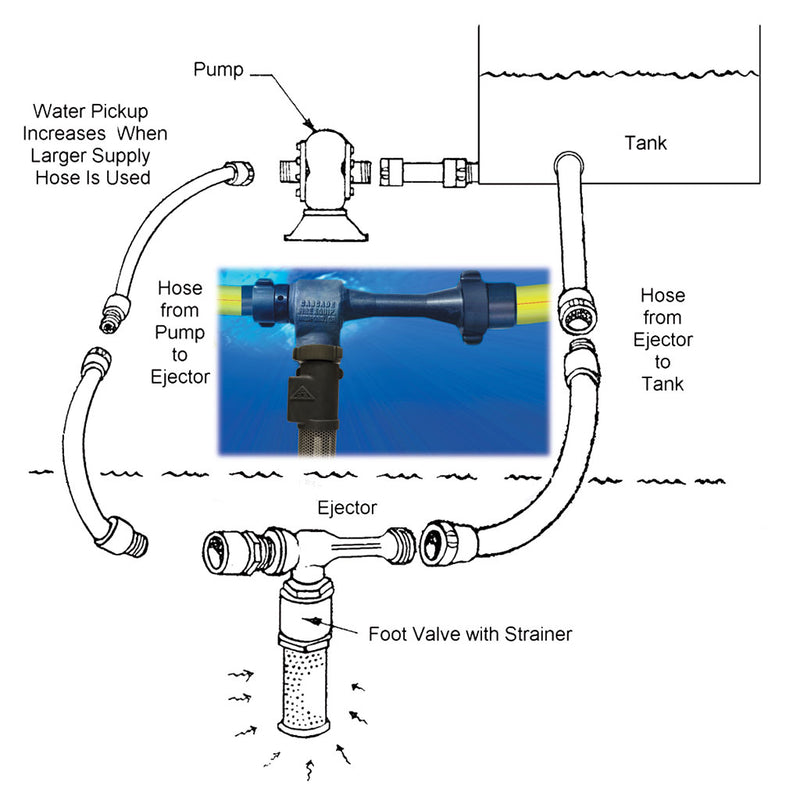

Attaching the suction port on Cascade's High Performance Ejector to a Foot Valve & Strainer is recommended to prevent the loss of prime and keep foreign objects from entering the water supply.
