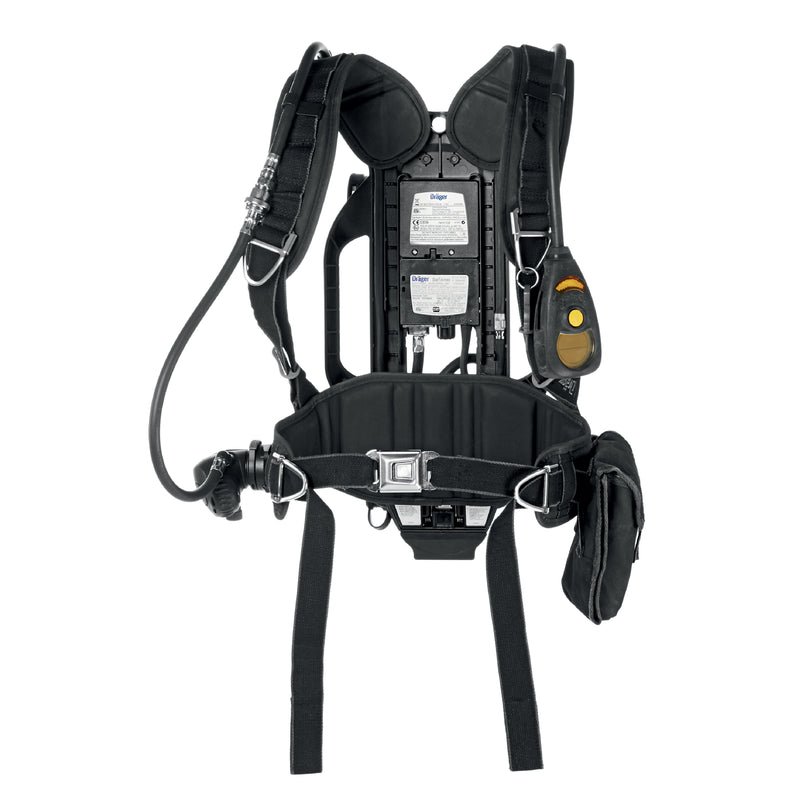

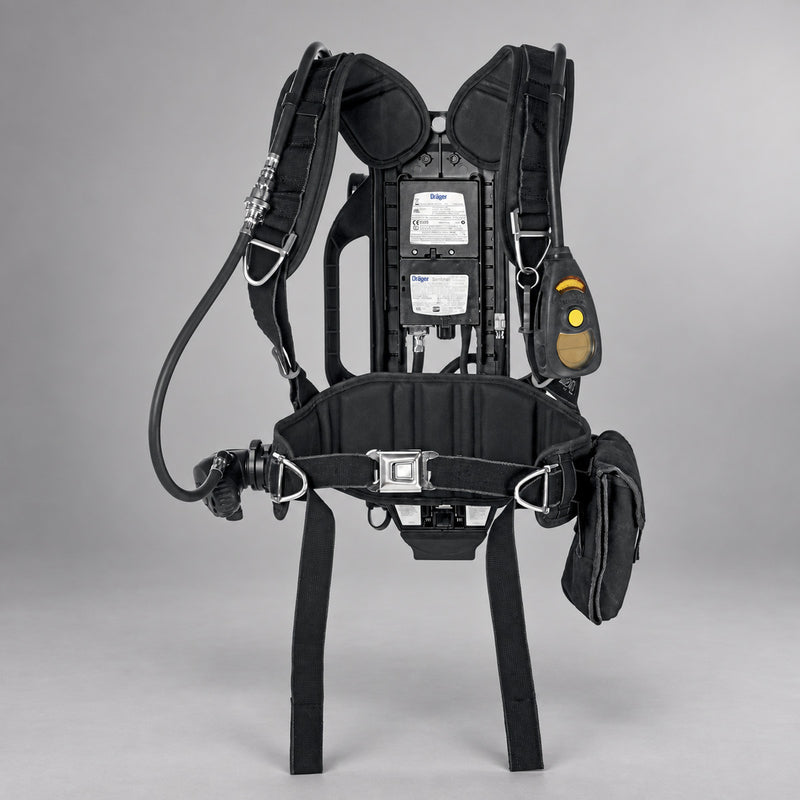

Dräger PSS® 5000 NFPA-Certified SCBA
The Dräger PSS® 5000 is an NFPA-certified self-contained breathing apparatus engineered for professional firefighting. Its ergonomic carrying system, configurable hose routing and service-friendly construction provide dependable respiratory protection with a comfortable, adaptable fit.
Key Features
- Pivoting lumbar-support waist belt helps maintain freedom of movement
- Chloroprene-rubber harness with abrasion-, flame- and water-resistant Aramid-blend webbing
- Integrated bilateral hose routing helps reduce snag hazards
- Quick Connect or CGA cylinder-connection configurations
- Tool-free harness removal and slide-and-lock service access
- Dräger Sentinel 7000 electronic monitoring with integrated PASS, data logging and 360° alarms
Technical Specifications
| Specification | Details |
|---|---|
| Approvals | NFPA 1981 and NFPA 1982, 2018 edition |
| Input pressure | 2,216 psi low-pressure or 4,500 psi high-pressure configurations |
| Weight | 24.8 lb with empty 45-minute cylinder |
| First-stage output pressure | 108 psi nominal |
| First-stage output flow | Greater than 1,000 L/min |
| LDV output flow | Greater than 500 L/min |
| Whistle activation pressure | 510 psi low-pressure; 1,215 psi high-pressure |
| Whistle sound level | Greater than 90 dBA |
| PASS main alarm | Greater than 95 dBA |
| Electronic monitoring | Dräger Sentinel 7000 |
Configuration Information
The PSS® 5000 is configurable with cylinder connection, pressure rating, hose routing, facepiece, head-up display, communications and UEBSS options. Contact Cascade Fire Equipment for configuration assistance and a quote.
Cylinder, facepiece, communications equipment, Buddy Breather/UEBSS and other accessories are included only when specified in the quoted configuration. Inspect, maintain and use SCBA equipment in accordance with Dräger instructions, department policy and applicable standards.
