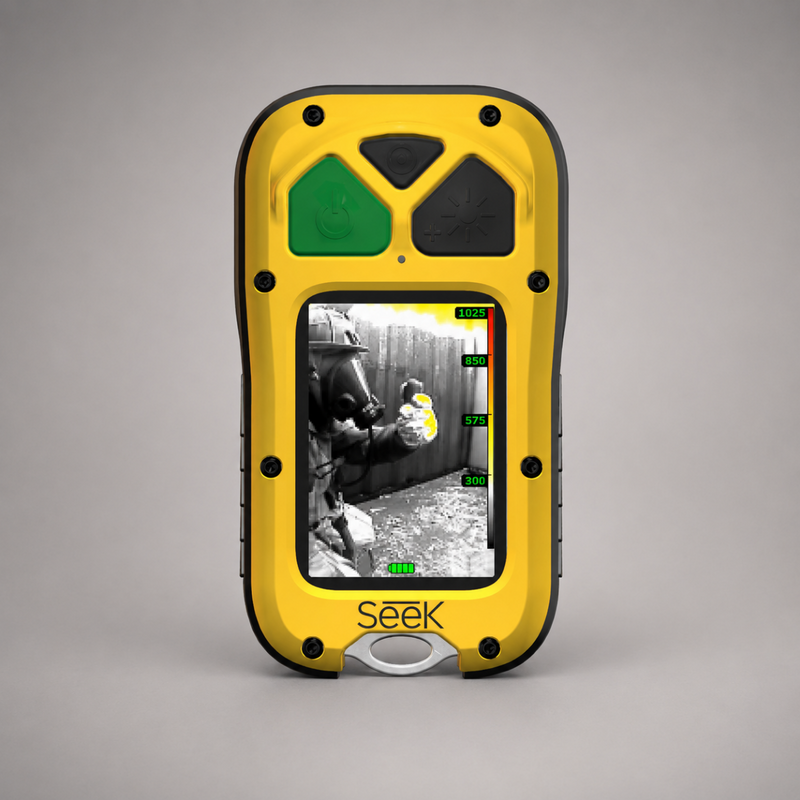

Seek FirePRO 200 Personal Thermal Imaging Camera

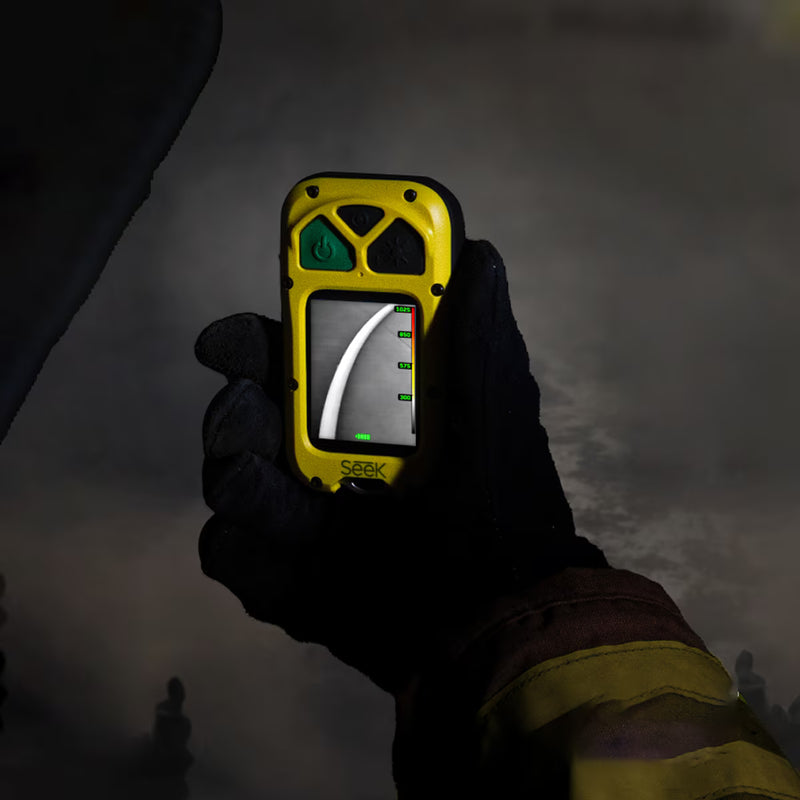

Designed to improve firefighter situational awareness in smoke, darkness, and low-visibility conditions, the Seek FirePRO 200 Personal Thermal Imaging Camera combines lightweight portability with fast, detailed thermal imaging. Its 200 × 150 thermal sensor provides 30,000 temperature pixels at a refresh rate greater than 25 Hz, helping firefighters regain orientation, identify hazards, locate victims and hot spots, and navigate more effectively.

Seek's Mixed Gain technology with SV1 Image Optimization displays detail in both hotter and cooler areas of a scene at the same time without freezing or switching gain modes. At just 0.7 lb. (325 g), the FirePRO 200 is designed as a compact personal thermal camera that can be carried by firefighters throughout an incident.

Key Features

• 200 × 150 thermal sensor with 30,000 temperature pixels
• Greater than 25 Hz FastFrame refresh rate
• Mixed Gain technology with SV1 Image Optimization
• 27° HFOV × 35° VFOV field of view
• Captures thermal still images
• FIRE Mode with TI Basic and TI Basic+ imaging
• Survey Mode for investigative and overhaul applications

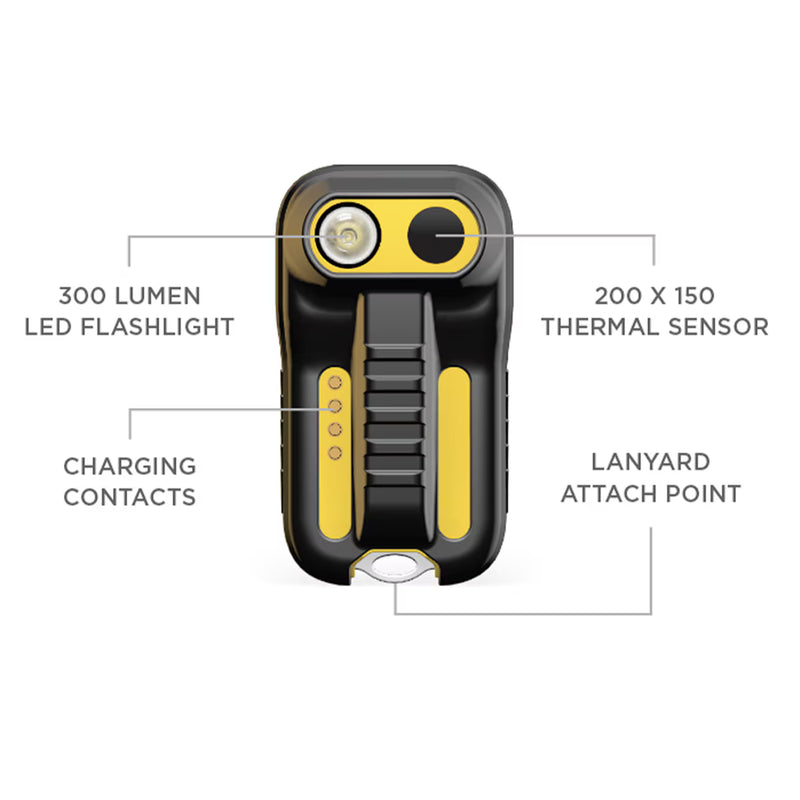

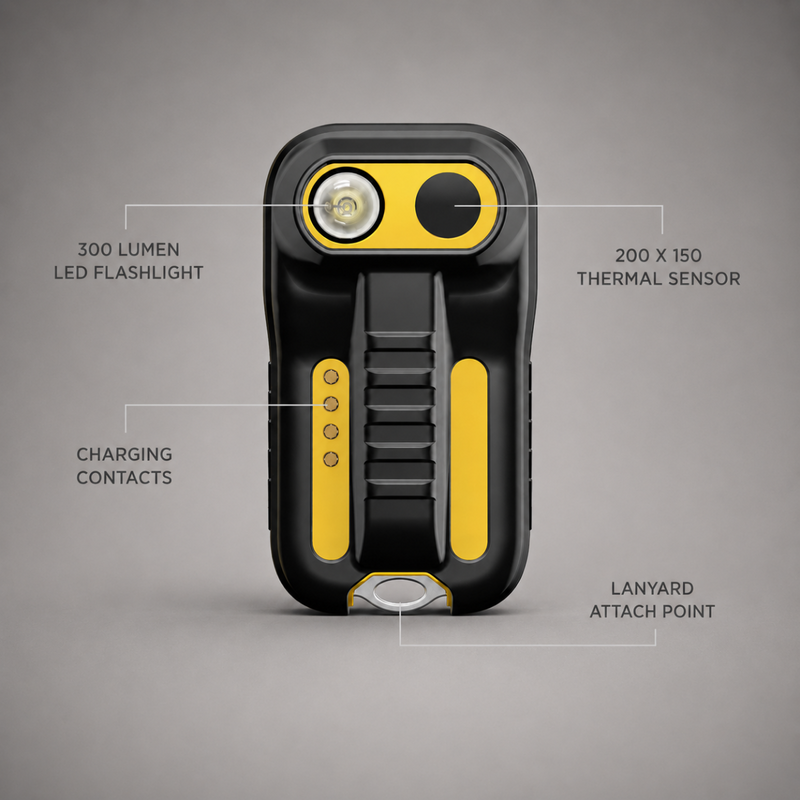

• Integrated 300-lumen LED flashlight

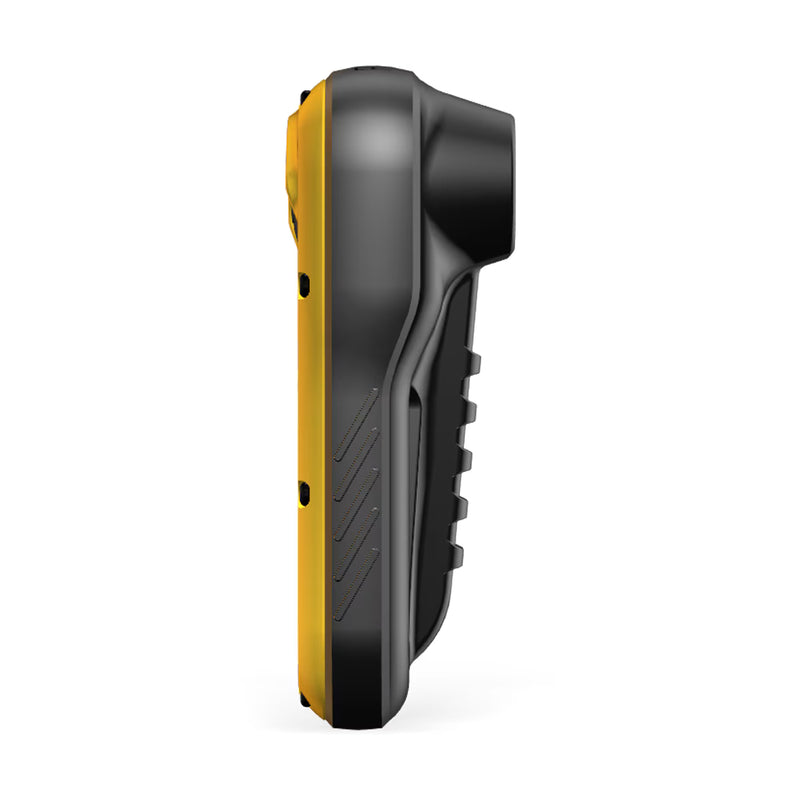

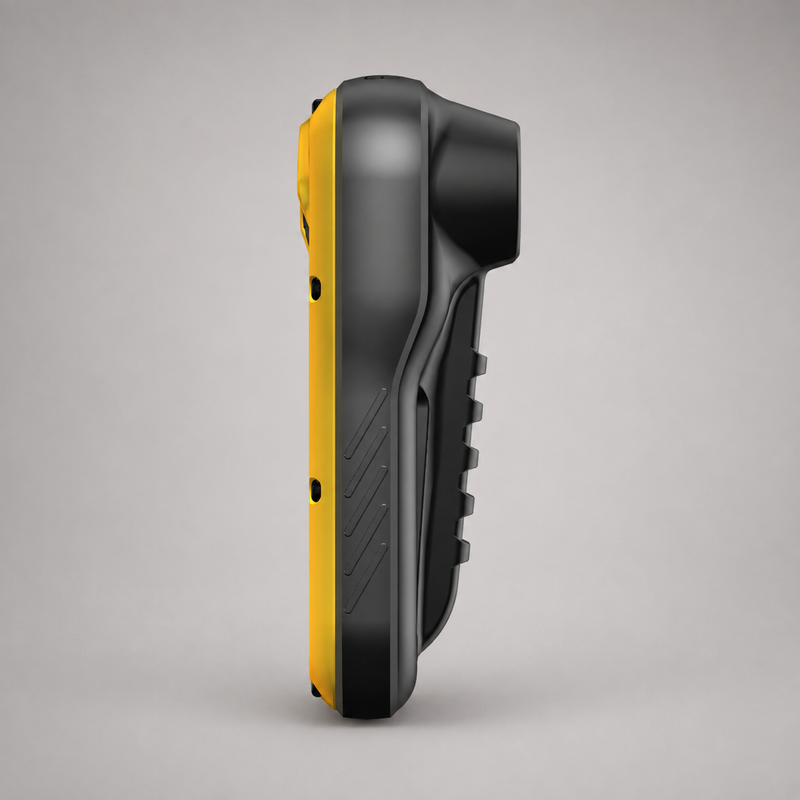

• Ergonomic 90° viewing angle

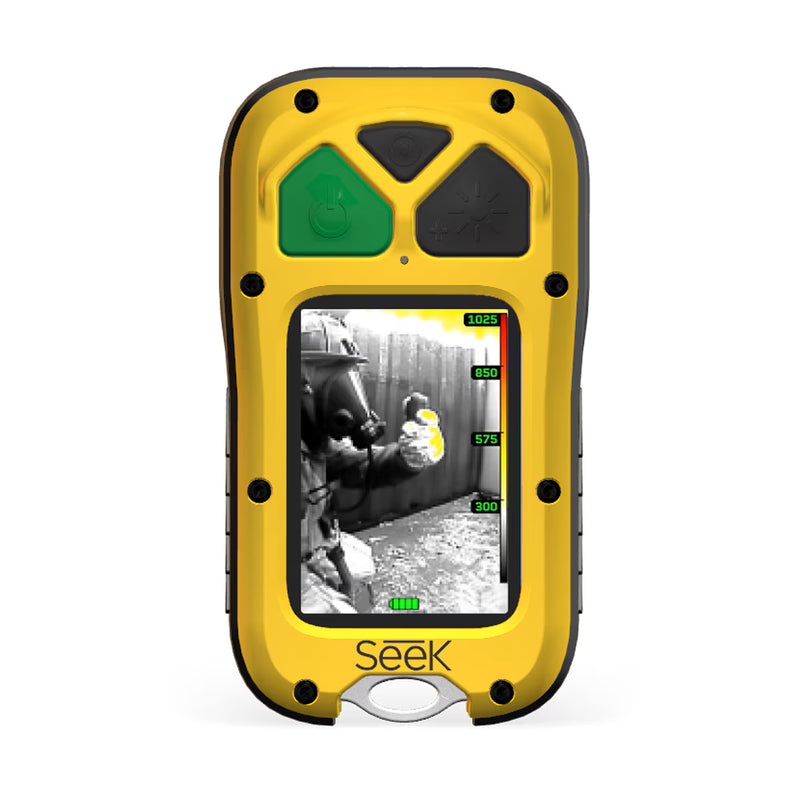

• 2.8" TFT display with 320 × 240 screen resolution
• Temperature range from -4°F to 1,022°F (-20°C to 550°C)
• Thermal sensitivity <35 mK with SV1
• IP67 waterproof rating
• 2-meter drop resistance onto concrete
• Up to 6 hours of thermal imaging on a single charge
• Up to 3.5 hours of thermal imaging with the flashlight on
• Lightweight 0.7 lb. (325 g) design

Built for Firefighter Situational Awareness

• Regain orientation in smoke, darkness, and low-visibility conditions
• Identify hazards that may not be visible to the naked eye
• Locate victims and hot spots during fireground operations
• Monitor fire behavior and changing conditions
• Use Survey Mode during size-up and overhaul to identify potential hot spots
• Provide a lightweight personal thermal imaging option for individual firefighters

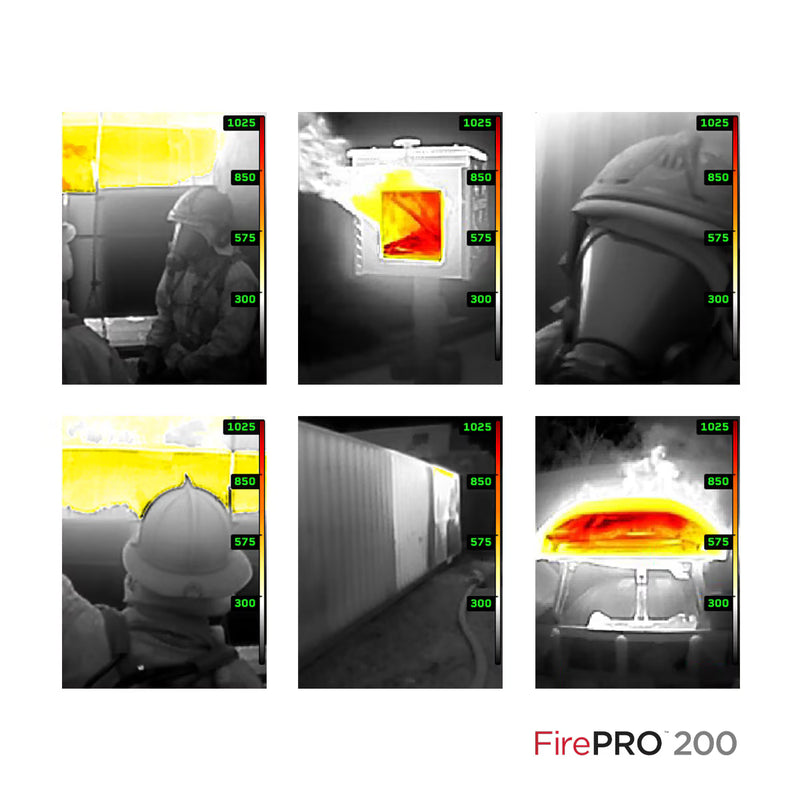

Imaging Modes

TI Basic: Simplified FIRE Mode without spot temperature.

TI Basic+: FIRE Mode with spot temperature while maintaining Mixed Gain thermal imaging.

Survey Mode: Investigative mode with spot temperature for lower-temperature applications such as size-up and overhaul.

Image Capture: The FirePRO 200 captures thermal still images. It does not record video.

Durability & Operating Temperature

• IP Rating: IP67 waterproof
• Impact Resistance: 2-meter drop onto concrete
• Operating Temperature – No Time Limit: -4°F to 185°F (-20°C to 85°C)
• Operating Temperature – 5 Minutes: Up to 302°F (150°C)
• Operating Temperature – 1 Minute: Up to 500°F (260°C)

What's Included

• Seek FirePRO 200 thermal imaging camera
• Charging dock with retaining strap
• Charging cable
• Quick Start Guide
• Safety Information Booklet

SKU: FW-AAAX

Designed and manufactured in the USA with global components. The thermal sensor is designed and manufactured by Seek Thermal in Santa Barbara, California.
