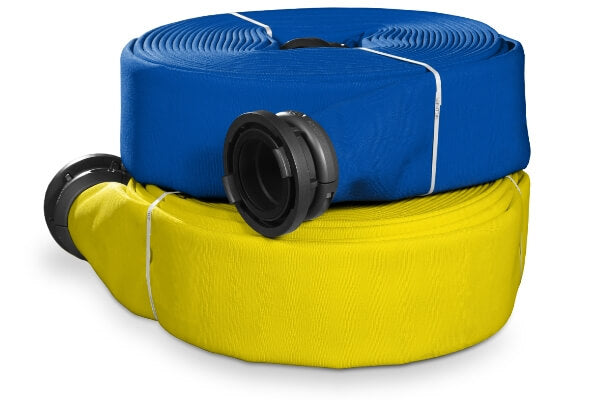

Niedner Ready LDH Hose
DELIVERING WATER FASTER
Fire departments and emergency response teams across North
America rely on our field-proven firefighting hose technology for
superior water flow on the fireground. NIEDNER READY is the large
diameter hose (LDH) fire departments wish they always had.
NIEDNER READY is a 100% polyester, double jacket, TPU
elastomer-lined hose with a service test pressure rating of 300 PSIG
(2100 kPa). Compared to traditional rubber LDHs, NIEDNER READY
is lighter, more compact, flexible to -60°F (-51°C), more abrasion and
puncture resistant, and can be loaded without hanging to dry.
NIEDNER READY is also used as a Soft Suction hose in shorter
lengths. The ENCAP™-treated outer jacket improves durability,
reduces water absorption up to 40%, increases chemical resistance
and allows for color options.
HIGHEST LEVEL OF QUALITY
NIEDNER maintains the highest levels of quality in the design,
manufacturing, and testing of all our hose products. As a result, our
solutions exceed the recognized international standards.
UNIQUE SERVICES
Our solutions have many advantages; quality, design, and
engineering support, which is second to none.
• Ultimate abrasion and puncture
resistance
• High pressure performance
• Kink resistant
• Ozone and age resistant
• Mildew and bacteria resistant
• Increased chemical resistance
• Double jacket made of 100%
spun polyester
• Lined with TPU elastomer
• ENCAP™ treatment DESIGN
• Lightweight and compact
• Easily packed and carried
• Flexible to -60°F (-51°C)
• Reduced water absorption up to 40%
• Can be loaded without hanging to dry
| Nominal Diameter (ID) | Spec # | Weight 50 ft (w/ aluminum couplings) |
Weight 100 ft (w/ aluminum couplings) |
Flat Width (layflat) | Thickness | Coil Diameter (all lengths) |
Coupling — Bowl Size | Coupling — Diameter | Internal Diameter | Service Test Pressure |
|---|---|---|---|---|---|---|---|---|---|---|
| 4" (102 mm) | 5040 | 43 lb (19.50 kg) | 77 lb (34.93 kg) | 6.625 in (16.83 cm) | 0.35 in (0.89 cm) | 18 in (45.72 cm) | 4 – 3/8 in | 4 – 1/32 in | 102.4 mm | 300 PSI (2,100 kPa) |
| 5" (127 mm) | 5050 | 55 lb (24.95 kg) | 97 lb (44.00 kg) | 8.125 in (20.64 cm) | 0.35 in (0.89 cm) | 28 in (71.12 cm) | 5 – 3/8 in | 5 – 1/32 in | 127.8 mm | 300 PSI (2,100 kPa) |
Available Colors: White, Green, Red, Orange, Blue, Beige-Tan, Purple, Yellow.
