Cascade polypropylene water tanks are built for slip-on firefighting units, with custom dimensions and configurations available. Select a water capacity and an optional foam cell to suit your build.
AVAILABLE OPTIONS
| OPTION | SELECTIONS |
|---|---|
| Water capacity | 50, 75, 100, 150, 200, 250, 300, 400, 500, 600, 700, or 800 gallons |
| Foam cell | None, 5, 10, 15, or 20 gallons |
CONSTRUCTION & FEATURES
- ½-inch, black, UV-stabilized, stress-relieved polypropylene sheet construction
- Extrusion double-welded and tested joints and seams
- Interlocking ½-inch transverse baffles extend from the tank floor to the cover and are welded to each other and the tank walls
- Partition openings allow water and air movement between compartments
- Fill-connection deflectors diffuse incoming water
- Vertical translucent sight gauge
- Combination vent and manual fill tower with a removable ¼-inch polypropylene screen and a cover with stainless steel hinge
- Sump with anti-swirl plate to help limit vortex formation
WATER TANK EQUIPMENT
| COMPONENT | INCLUDED |
|---|---|
| Fill tower | One, with removable screen and cover |
| Sump | One, with anti-swirl plate and drain fitting |
| Vent | One overflow pipe |
| Tank fill fitting | One 1-inch NPT |
| Tank suction fitting | One 2-inch NPT |
| Level indication | One sight gauge |
OPTIONAL FOAM CELL
- Fill tower with removable screen and cover
- Sight gauge
- Drain
CUSTOM CONFIGURATIONS
Options include reel mount blocks, wheel wells, and diamond plate. Confirm final dimensions, mounting provisions, loaded weight, and compatibility with your intended foam, retardant, or wetting agent when ordering.

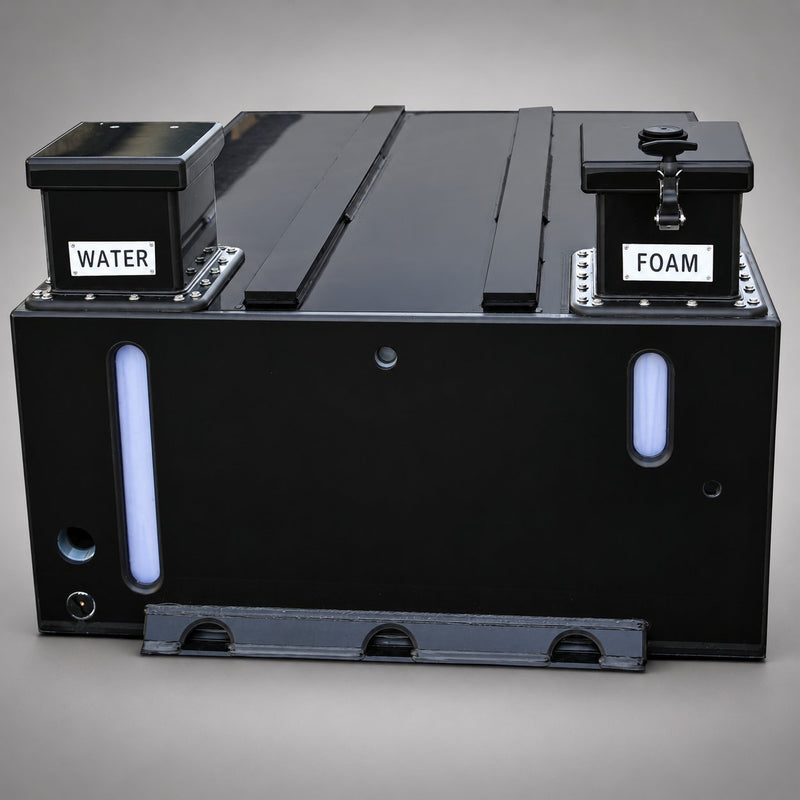

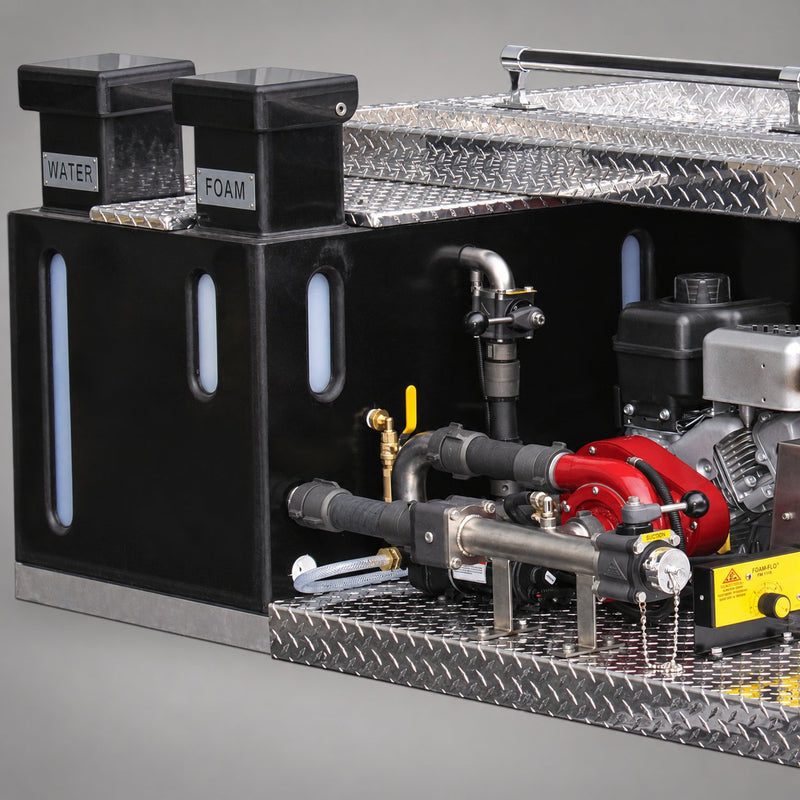

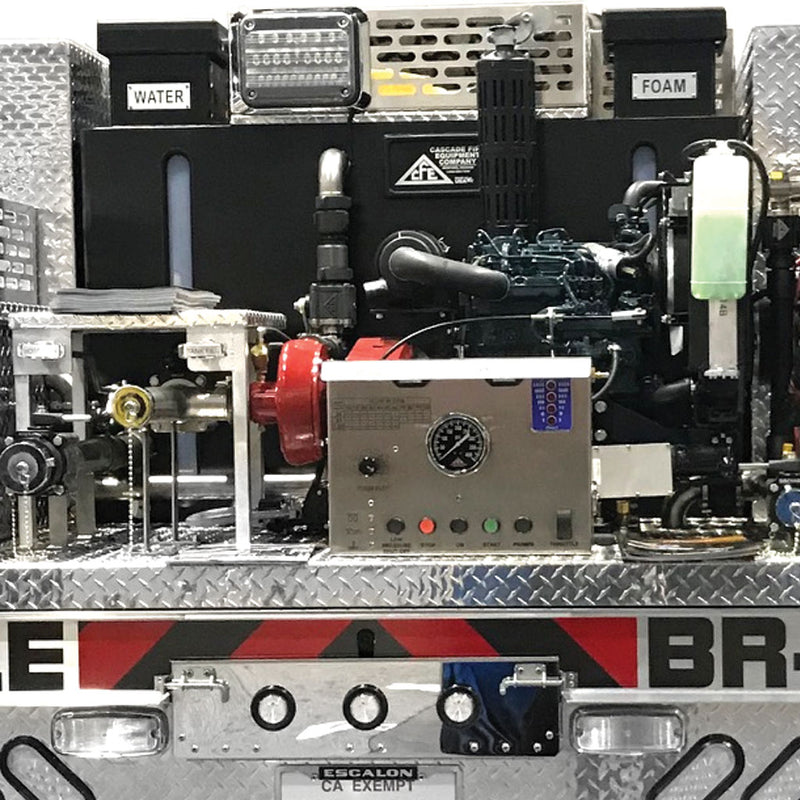

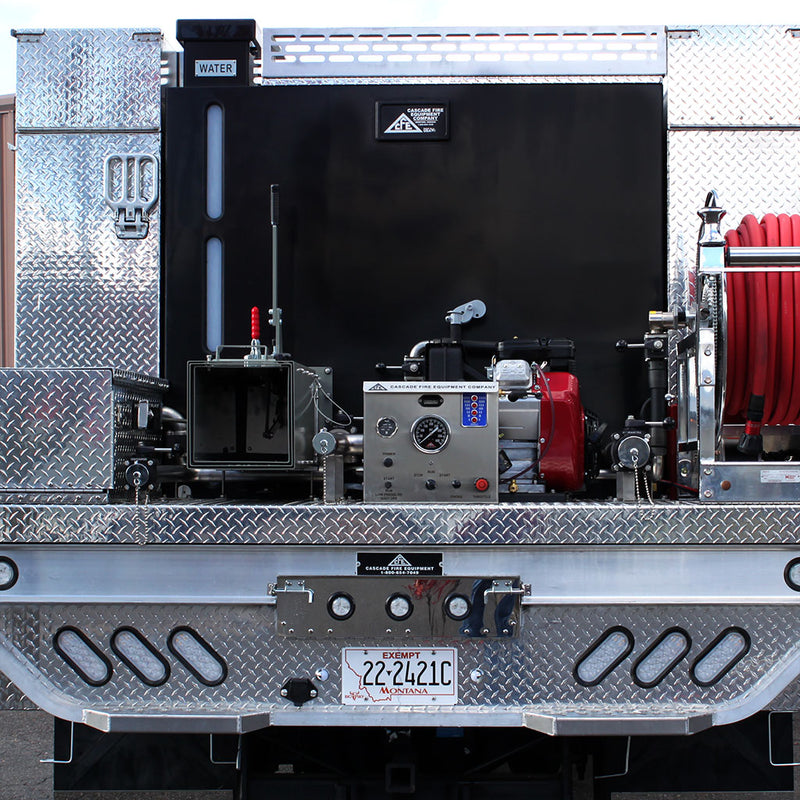

Photos show example tank configurations and completed installations. Pumps, reels, plumbing, and apparatus shown are not included in the tank selection unless specified in your quote.
For a customized quote, call (800) 654-7049.
