Cascade CF-120 18 HP Centrifugal Pump
Designed and manufactured by Cascade Fire Equipment, the CF-120 is an 18 HP centrifugal pump for slip-on firefighting systems and portable applications when equipped with a carrying frame and fuel tank. A Briggs & Stratton Vanguard V-twin engine powers the single-stage pump.
The published performance ranges from 120 GPM at 50 PSI to 23 GPM at 300 PSI. Maximum flow and maximum pressure occur at different operating points.
FEATURES
- Hard-anodized aluminum-alloy pump body
- Enclosed bronze impeller and bronze wear ring
- Carbon/ceramic mechanical seal and sealed ball bearings
- Electric start and manual recoil
PUMP PERFORMANCE
| PRESSURE (PSI) | FLOW (GPM) |
|---|---|
| 50 | 120 |
| 100 | 110 |
| 150 | 100 |
| 200 | 80 |
| 250 | 50 |
| 300 | 23 |
PUMP & ENGINE SPECIFICATIONS
| SPECIFICATION | DETAIL |
|---|---|
| Model / SKU | CF-120 / 24191T |
| Pump type | Single-stage centrifugal |
| Suction inlet | 2 in. male; confirm thread specification before ordering |
| Discharge | 1½ in. NH male |
| Engine | 18 HP Briggs & Stratton Vanguard V-twin; air-cooled, overhead valves |
| Engine operation | 4-cycle; 3,600 RPM |
| Starting | 12-volt electric and manual recoil |
| Lubrication | Full-pressure system with automotive-style filter |
| Priming | Manual |
| Dimensions without carry frame | 24 in. L × 19½ in. W × 17¼ in. H |
| Dimensions with carry frame | 30¼ in. L × 19½ in. W × 18½ in. H |
CONFIGURATION & ACCESSORIES
The truck-mount configuration uses a ¾-inch polypropylene mounting base. Portable configurations use a carrying frame and integrated 3-gallon fuel tank. Confirm the included fuel tank, primer, gauge, and mounting hardware for SKU 24191T with Cascade Fire Equipment before ordering.

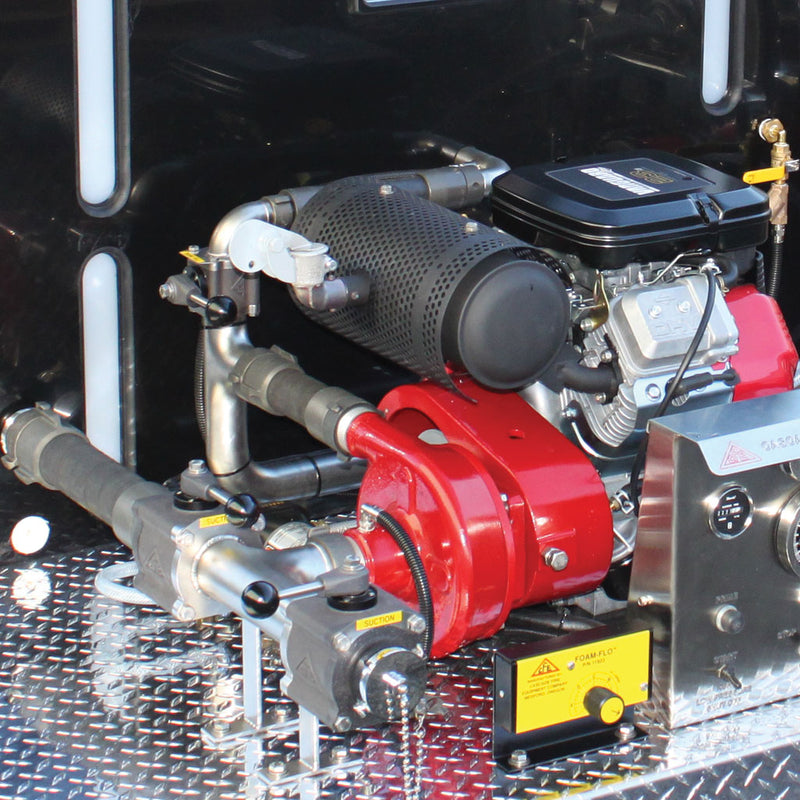

Photo: shows a pump installed in a firefighting system; surrounding plumbing, controls, and foam equipment illustrate an installation.
