BE Pump Replacement Parts
Original price
$1.65
-
Original price
$55.00
Original price
$1.65
$1.65
-
$55.00
Current price
$1.65
SKU

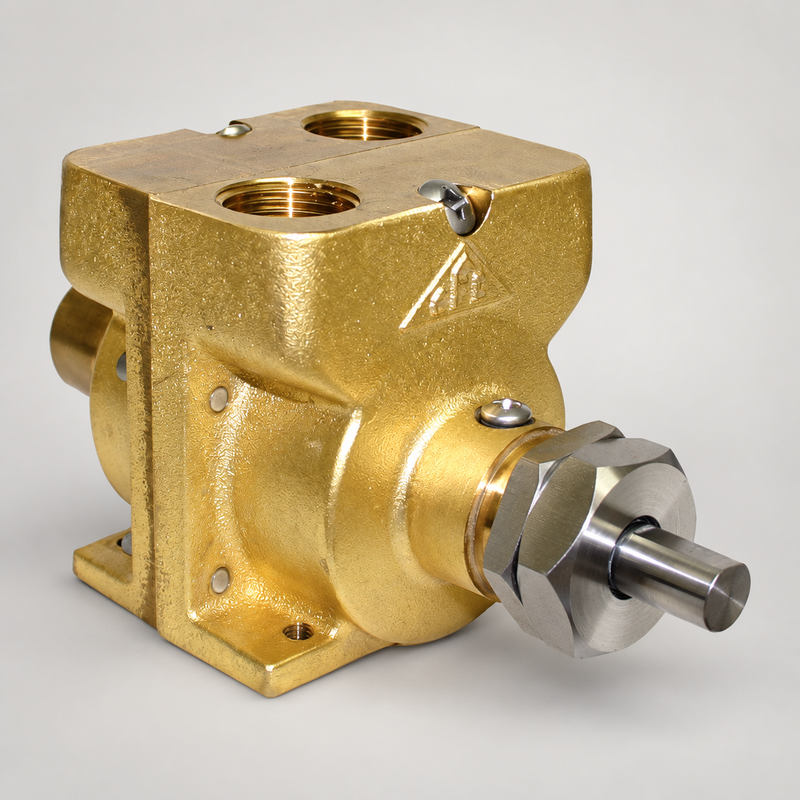

Replacement components for the BE pump used in Cascade Fire Equipment slip-on firefighting systems. Each selection is one named replacement part; the complete pump assembly shown in the lead photo is for reference and is not included. Match the part name, diagram number and SKU to the numbered exploded view before ordering. Confirm compatibility with your pump.
Available BE pump parts
| SKU | Part / diagram reference |
|---|---|
| 24019-4 | Housing Screw (4) |
| 24019-5 | Housing Nut (for non-CFE brands) (5) |
| 24019-6 | Housing Gasket (6) |
| 24019-7 | Bushing (7) |
| 24019-8 | Impeller Guide (8) |
| 24019-9 | Impeller (9) |
| 24019-10 | Separator (10) |
| 24019-11 | Impeller Guide Screw (11) |
| 24019-12 | Shaft (12) |
| 24019-13 | Eccentric (13) |
| 24019-14 | Bushing Retainer Screw (14) |
| 24019-15 | Shaft Seal (15) |
| 24019-16 | Shaft Seal Spacer (16) |
| 24019-17 | Gland Nut (17) |
| 24019-18 | Lock Nut (18) |
The housing nut, SKU 24019-5, is identified in the Cascade catalog for non-CFE brands. Diagram numbers 1–3 (pump head and housing halves) are shown for identification but are not selectable options on this page. For those parts or the complete BE pump and engine, contact Cascade Fire Equipment at 800-654-7049 to confirm availability and compatibility.
