Hydro Force 138
At the heart of the FORCE™ product line is the HEN® HYDRO FORCE™ shutoff, an integrated shutoff, featuring a built-in TURBO™ back-pressure device. Engineered for a 75 psi inlet pressure, it maximizes hose performance while maintaining nozzle pressure between 45 to 50 psi across all 1.75-inch handline hose types. This configuration delivers a targeted flow of 175 GPM at 45 psi nozzle pressure, resulting in a manageable 60 lbs nozzle reaction force.

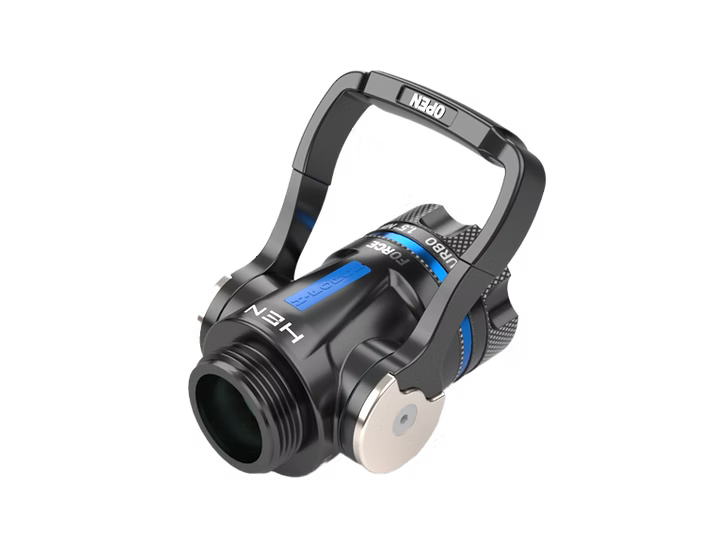

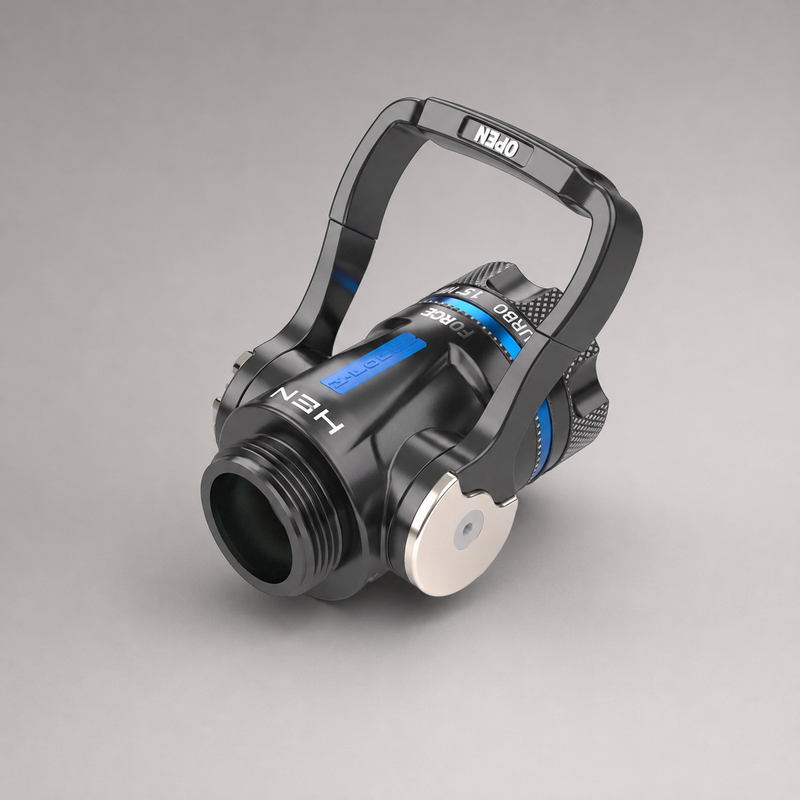

Key Features for 1.5" inlet: (blue)
-
1-⅜" waterway
-
Works with ALL 1.75" hoseline
-
175 GPM @ 45 PSI nozzle pressure
-
60 pounds of nozzle reaction
-
Reduces nozzle whip & hose kinks
-
75 PSI inlet/back pressure
-
Superior ergonomic design
-
NFPA 1964/1960 compliant
-
See the product specification guide below for compatible nozzles

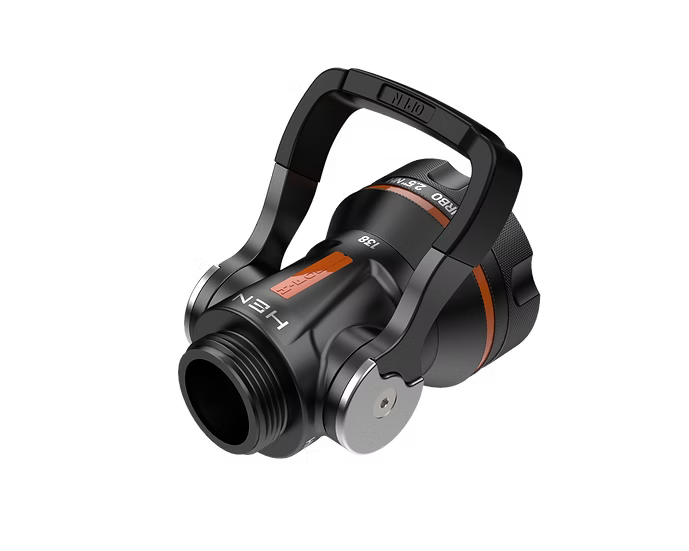

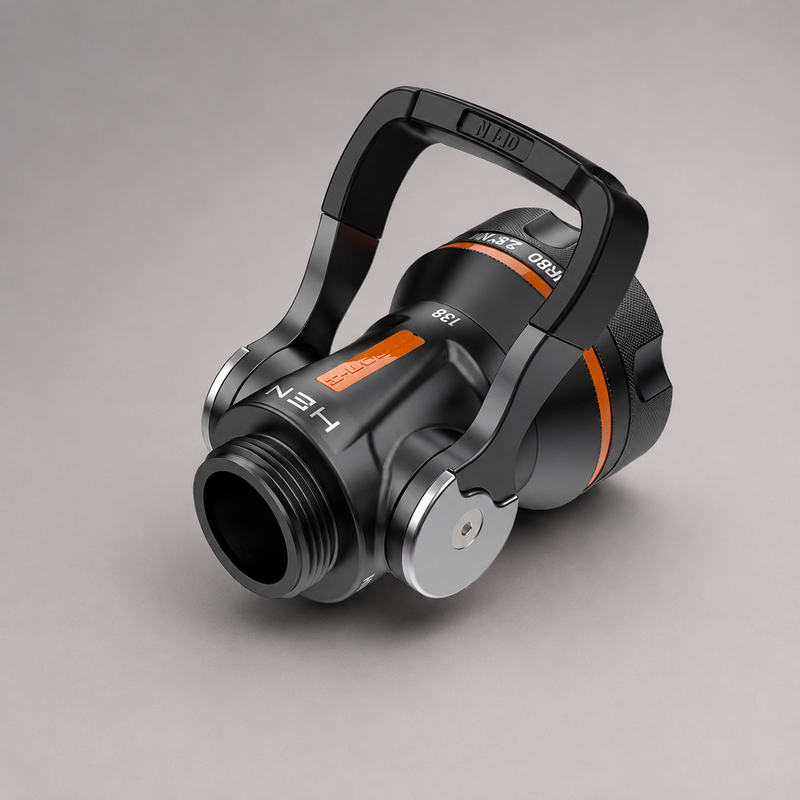

Key Features for 2.5" inlet: (orange)
-
1-⅜" waterway
-
Works with ALL 2", 2.25" and 2.5" hoselines
-
250 GPM@ 45 PSI or 265 GPM @ 50 PSI
-
99 pounds of nozzle reaction
Pistol grip sold separately.
