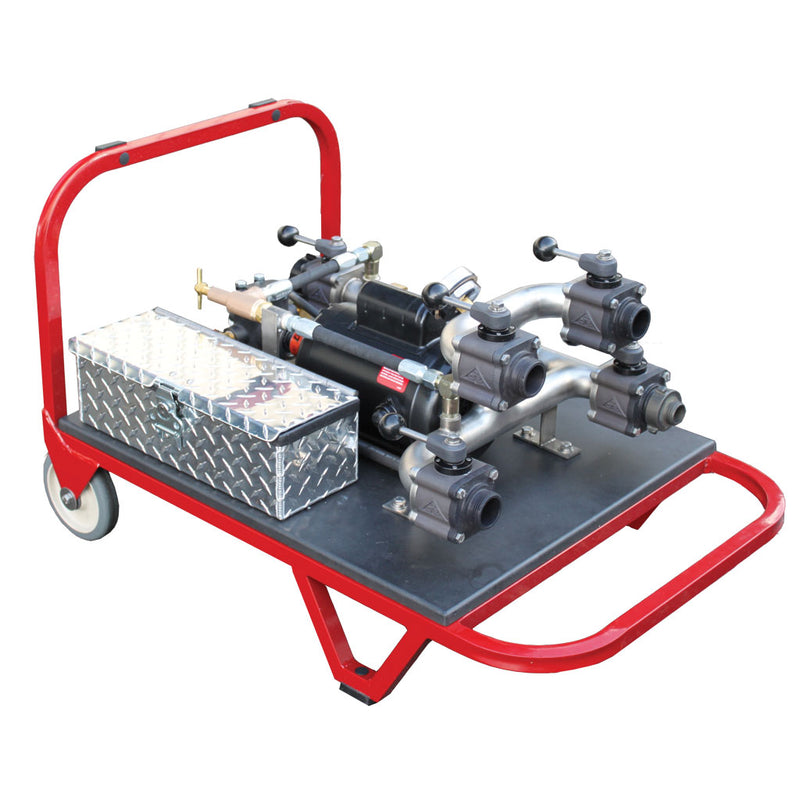

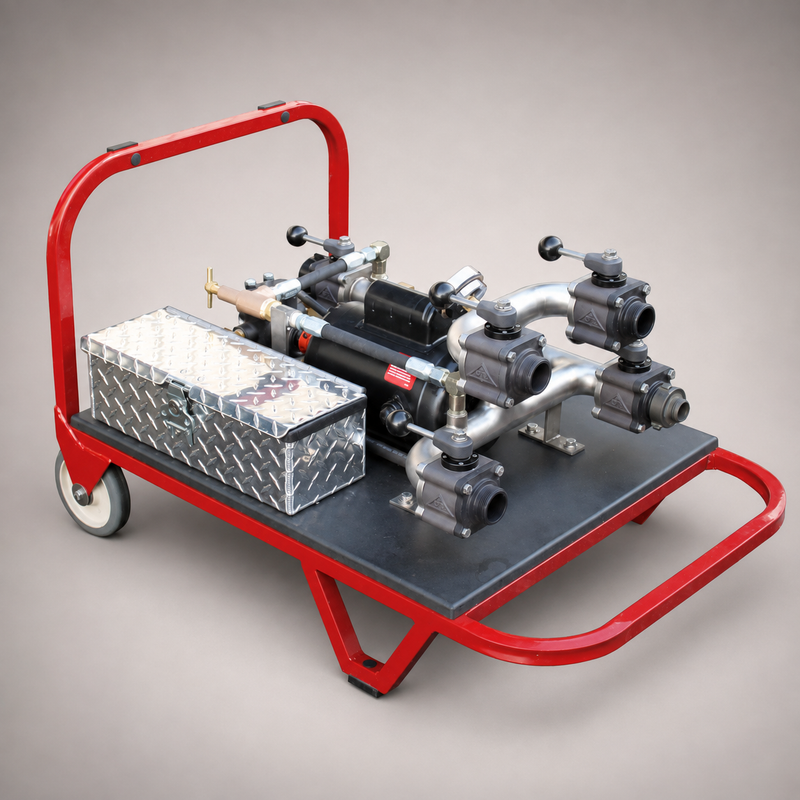

Cascade Fire Hose Tester – 4-Outlet, 500 PSI
Shipping Notice: An additional shipping charge applies to each hose tester ordered.
Built for professional fire hose service testing, the Cascade Fire Hose Tester provides fire departments, forestry agencies, and hose service professionals with a portable pressure source for testing multiple hose lines. The high-pressure twin-piston pump delivers 3 GPM at up to 500 PSI, with four independently valved outlets for testing up to four hose lines simultaneously.
Four 1½" NH (NST) outlets provide individual line control, while reducers or increasers can be used to accommodate fire hose from 1" through 6". An adjustable pressure regulator and 0–600 PSI liquid-filled pressure gauge provide pressure control and monitoring throughout the test.
BUILT FOR PROFESSIONAL FIRE HOSE SERVICE TESTING
Designed for use when conducting fire hose service testing in accordance with applicable NFPA 1930 procedures, department requirements, and hose manufacturer instructions.

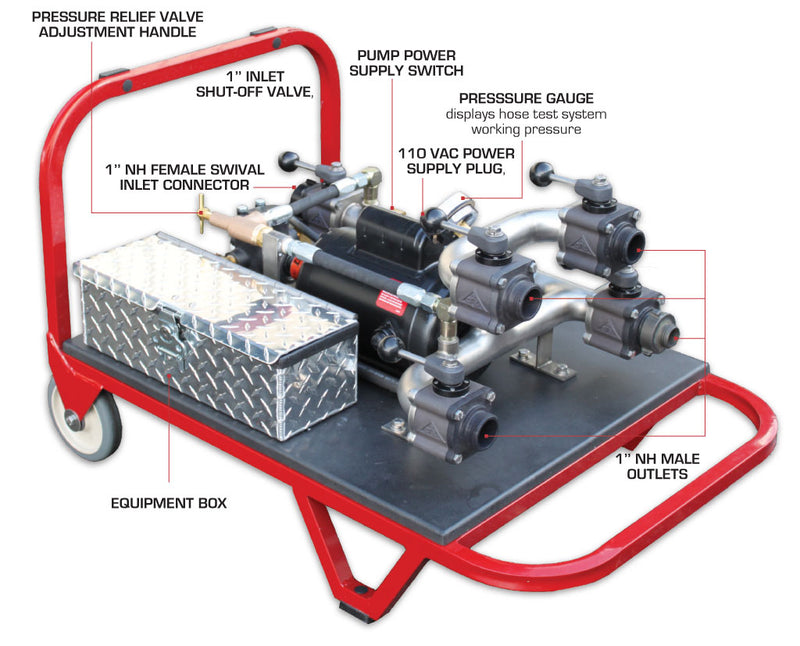

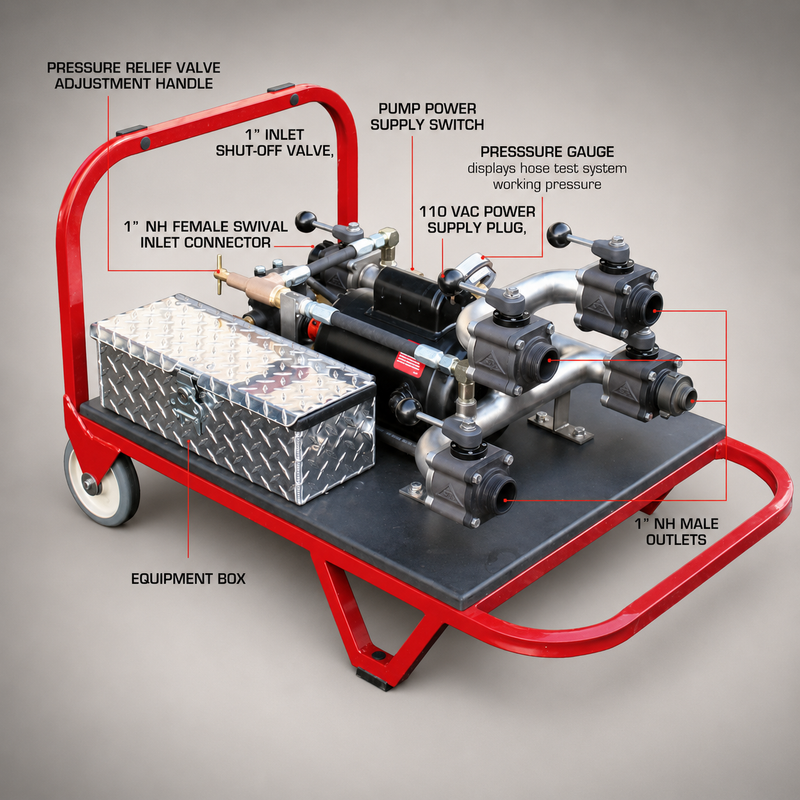

Key Features
- Four independently valved 1½" NH (NST) outlets
- Test up to four fire hose lines simultaneously
- Inline 1½" valve for static testing of the hose and tester
- Accommodates 1"–6" fire hose with appropriate reducers or increasers
- Adjustable pressure regulator for test pressures up to 500 PSI
- 0–600 PSI liquid-filled pressure gauge
- High-pressure twin-piston pump delivers 3 GPM at 500 PSI
- Stainless steel manifold and fasteners
- Aluminum Cascade valves
- 1 HP, 115V fully enclosed fan-cooled motor
- GFCI protection
- Mild-steel frame with baked powder-coat finish
- Integrated equipment box

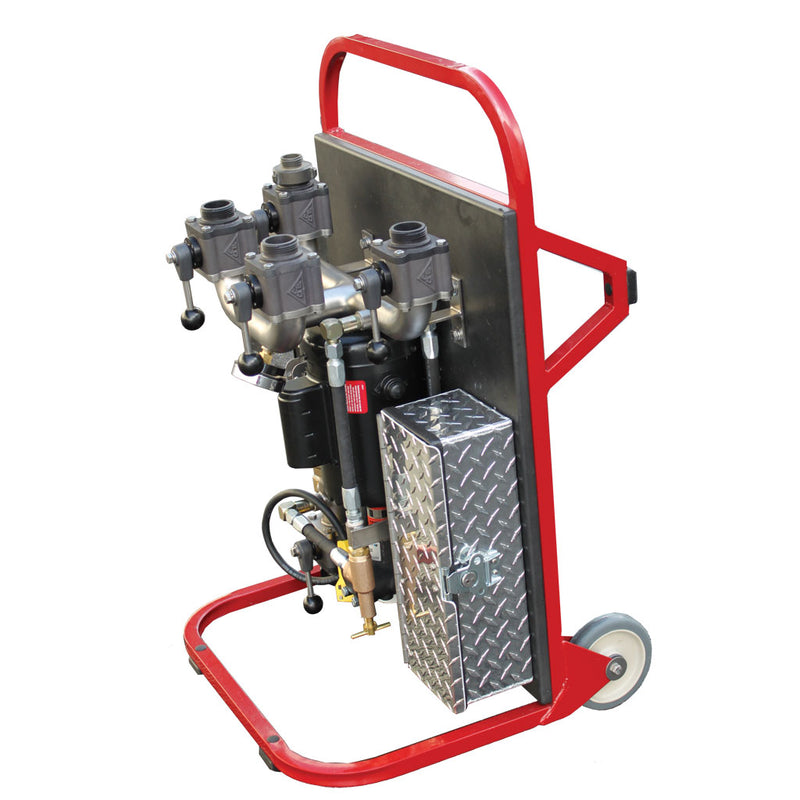

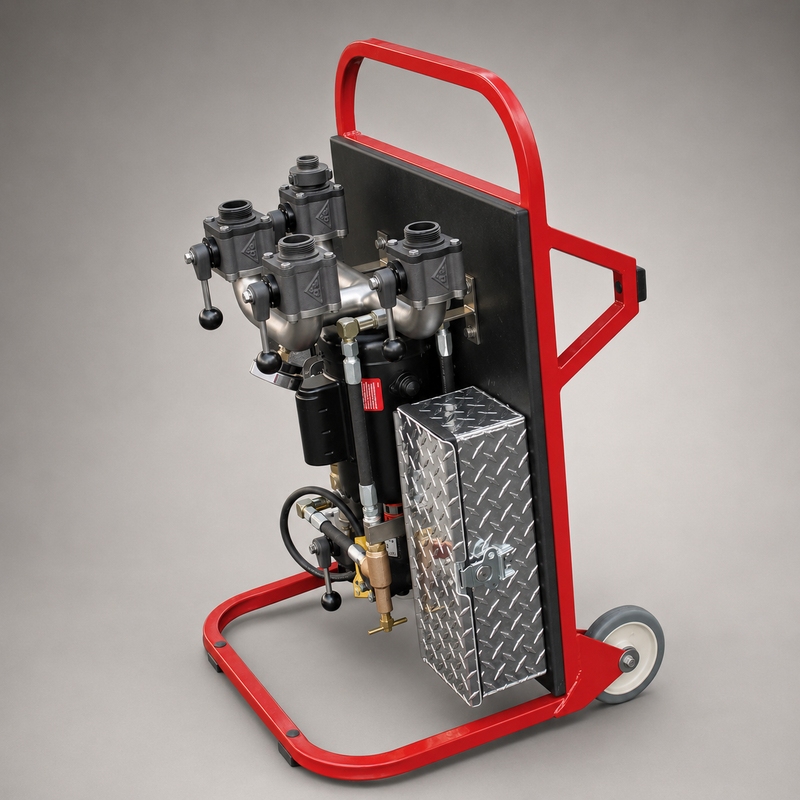

- Wheeled dolly-style frame for transport and storage
Specifications
| CASCADE FIRE HOSE TESTER | |
| SKU | 11500 |
| Dimensions | 24½" × 39" × 24" |
| Weight | 135 lbs. |
| Motor | 1 HP, 115V fully enclosed fan-cooled motor |
| Pump | High-pressure twin piston; 3 GPM at 500 PSI |
| Outlets | Four independently valved 1½" NH (NST) |
| Valves | Aluminum Cascade valves |
| Manifold | Stainless steel; 1,000 PSI test |
| Gauge | 0–600 PSI liquid-filled pressure gauge |
| Frame | Mild steel with baked powder-coat finish |
| Hose Size Capability | 1"–6" with appropriate reducers or increasers |
Fire Hose Service Testing
The Cascade Fire Hose Tester provides departments and service professionals with a dedicated pressure source for routine fire hose service testing. Four independently controlled outlets allow multiple hose lines to be tested while maintaining individual line control.
Important: Fire hose service testing should be performed by trained personnel using the appropriate service test pressure and procedures for the hose being tested. Always follow applicable NFPA 1930 requirements, department procedures, and hose manufacturer instructions.
