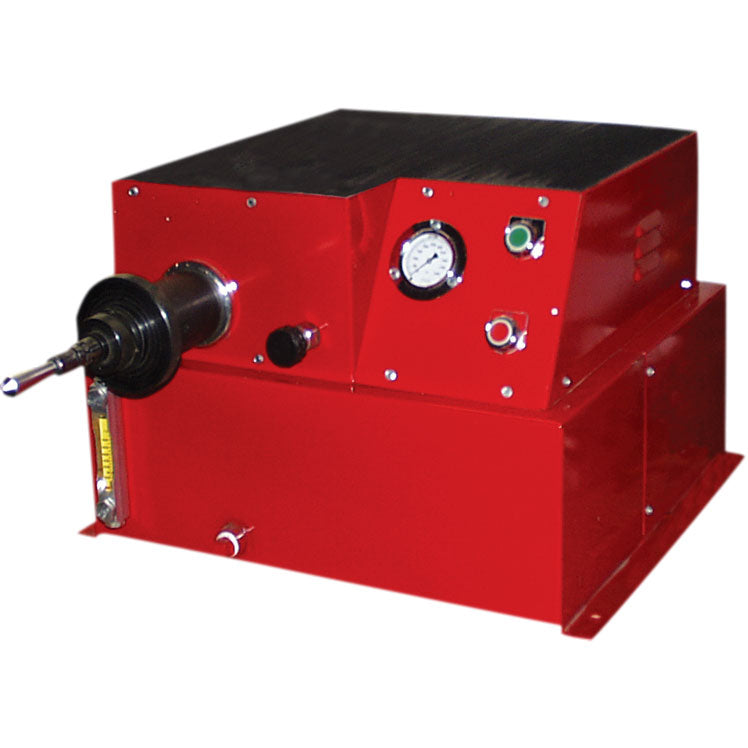

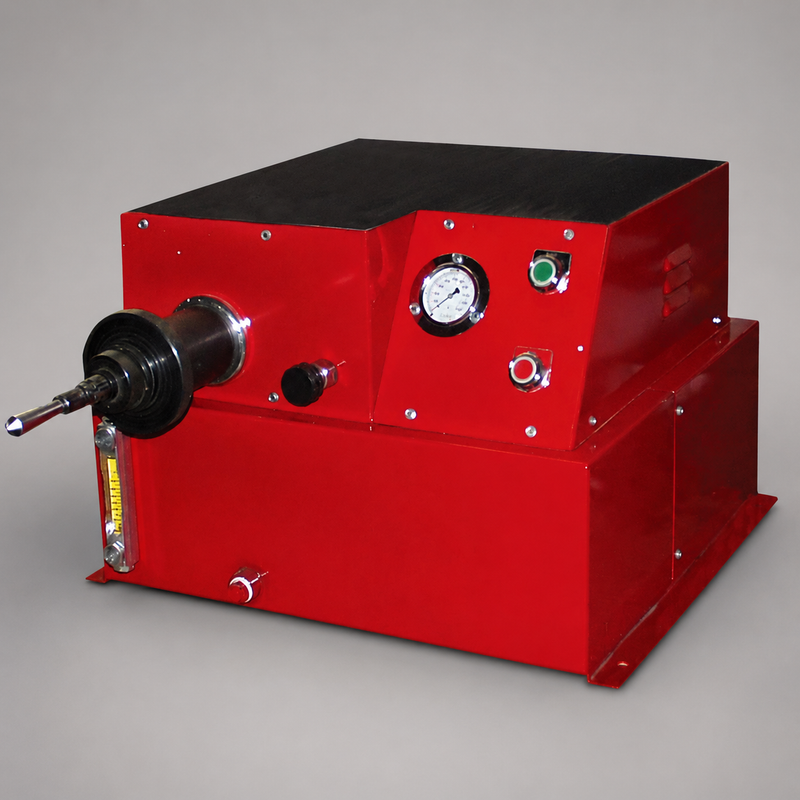

Red Head Brass Brute Model 2 Power Expander
The Red Head Brass Brute Model 2 Power Expander is a bench-model electric hydraulic machine designed for attaching expansion-ring couplings to fire hose. Built for hose manufacturers, high-volume distributors, and fire departments, it accommodates 1-inch through 6-inch couplings.
The Brute Model 2 combines a 3,000 PSI hydraulic pump, a 38,000 lb thrust cylinder, and foot-pedal control for efficient hose-coupling installation. A manually adjustable external pressure-relief valve allows the machine to be configured for different coupling and hose requirements.
Key Features
- Bench-model electric hydraulic operation
- Attaches 1-inch through 6-inch hose couplings
- Foot-pedal expand and retract control
- 3,000 PSI hydraulic pump
- Factory-set internal relief at a maximum of 2,500 PSI
- Manually adjustable external pressure-relief valve
- 38,000 lb total cylinder thrust
- Operating instructions included
Specifications
- Manufacturer: Red Head Brass
- Model: Brute Model 2
- SKU: 11275
- Coupling capacity: 1 inch through 6 inches
- Pump: 3,000 PSI
- Motor: 1-1/2 hp, 3,450 RPM, single phase
- Electrical requirement: 220 V
- Cylinder: 6-inch stroke with 4-inch bore
- Total thrust: 38,000 lb
- Oil capacity: 9.5 gal.
- Dimensions: 22 in. W × 22 in. D × 16 in. H
- Current manufacturer-listed weight: 350 lb
Expansion Units Required
Important: Expansion unit assemblies are not included with the Brute Model 2. Order the appropriate Red Head Brass expansion unit separately according to the size and type of coupling being installed.
