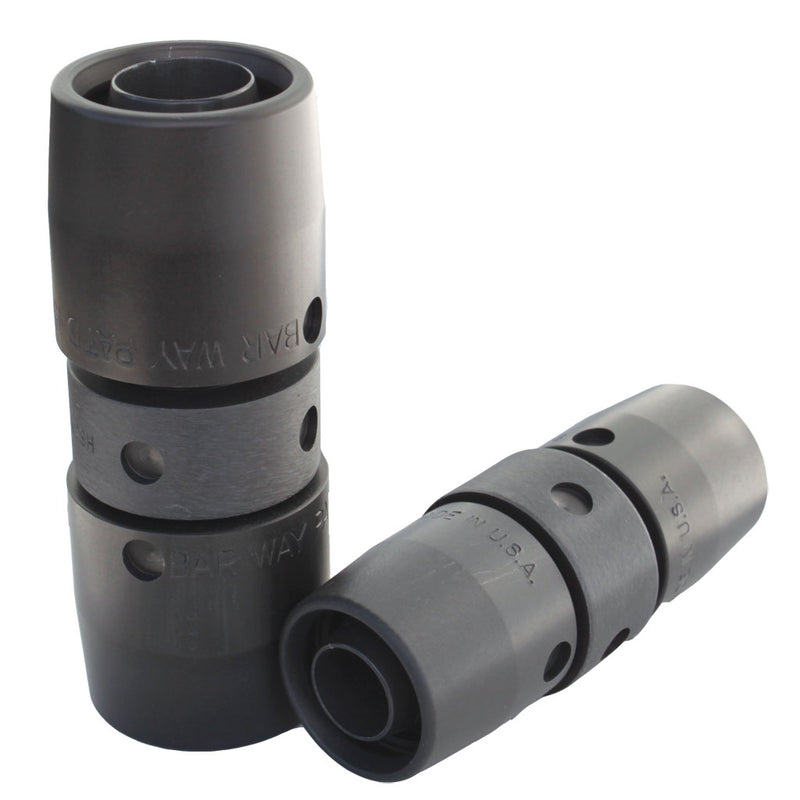

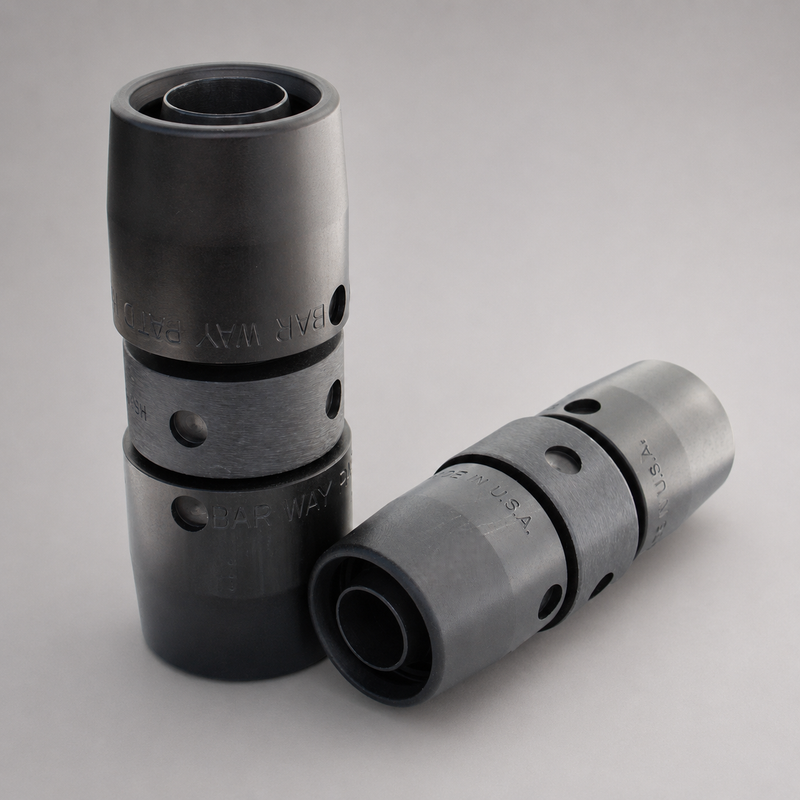

Red Head Brass Aluminum Bar-Way Booster Hose Couplings
Red Head Brass Aluminum Bar-Way Booster Hose Couplings are heavy-duty, reusable hole-type couplings designed for high-pressure booster hose. Their Bar-Way construction incorporates a threaded insert into the hose waterway, while the outer shell covers and protects the end of the hose.
These lightweight couplings are machined from seamless 6061-T6 aluminum extrusions and hardcoat anodized in accordance with MIL-A-8625 Type III, Class 1. Multiple hose-bowl diameters are available for 3/4-inch and 1-inch hose, with 1-inch NH or NPSH thread options.
Key Features
- Designed for high-pressure booster hose
- Heavy-duty and reusable Bar-Way construction
- Hole-type shell for use with the appropriate installation tooling
- Threaded insert extends into the hose waterway
- Outer shell covers and protects the hose end
- Machined from lightweight 6061-T6 aluminum
- Hardcoat anodized per MIL-A-8625 Type III, Class 1
- Available with 1-inch NH or 1-inch NPSH threads
Available Configurations
| HOSE SIZE | HOSE BOWL | NH SKU | NPSH SKU |
| 3/4 in. | 1-3/16 in. | 11659NH | 11659NPSH |
| 3/4 in. | 1-1/4 in. | 11644NH | 11644NPSH |
| 1 in. | 1-7/16 in. | 11647NH | 11647NPSH |
| 1 in. | 1-1/2 in. | 11648NH | 11648NPSH |
| 1 in. | 1-9/16 in. | 11649NH | 11649NPSH |
| 1 in. | 1-19/32 in. | 11650NH | 11650NPSH |
Ordering Information
The hose-bowl measurement is critical when selecting a coupling. Measure the outside diameter of the hose carefully and select the corresponding hose bowl. A tolerance of 1/32 inch is allowed.

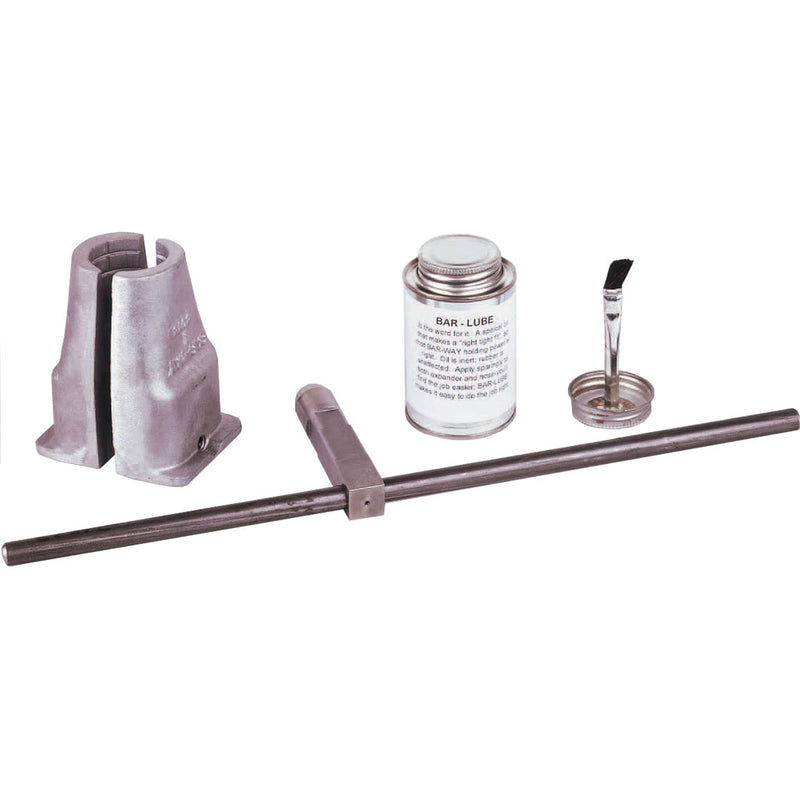

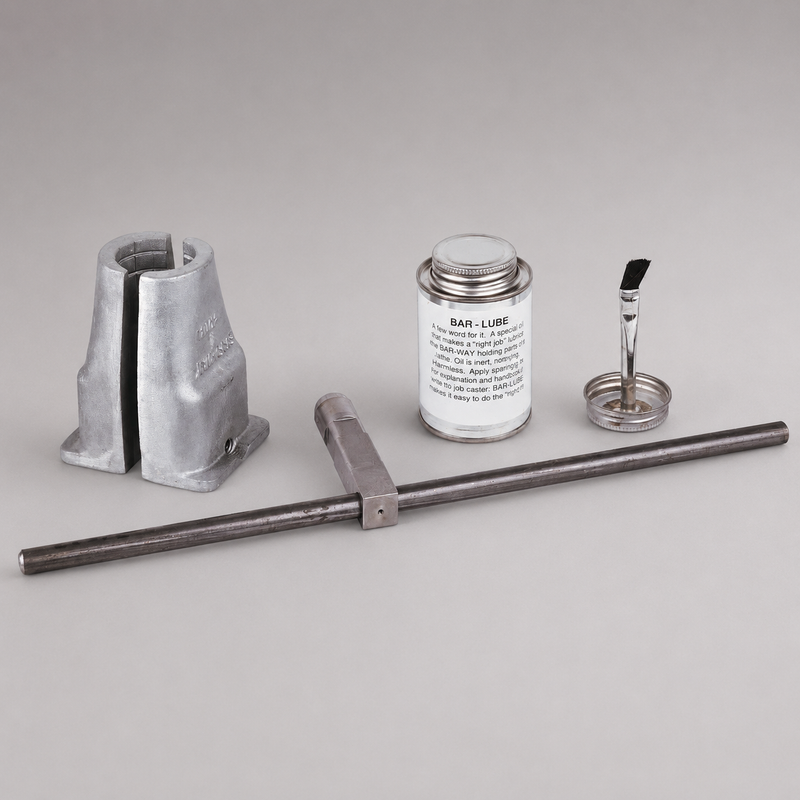

Please note: Special tooling is required to install Bar-Way booster hose couplings. The Booster Hose Coupling Installation Kit is sold separately.
