NIEDNER REEL Lightweight Booster Hose – 1 in.
![]()
NIEDNER REEL is a lightweight, single-jacket booster hose designed for hose reels and wildland firefighting. Previously listed here as ALTRA REEL and formerly known as REELTEX, it offers a lighter alternative to traditional hard rubber hose.
Features
- Polyester construction with red ENCAP™ treatment and helical reinforcement.
- Resists abrasion, punctures, kinking, ozone and mildew.
- Suitable for compressed air foam (CAF) systems.
- Supplied coupled with reattachable, field-replaceable couplings.
1-Inch Hose Specifications
| Specification | Details |
|---|---|
| Hose Diameter | 1 in. (25 mm) |
| Lengths | 50 ft. or 100 ft. |
| Thread Options | 1 in. NH or 1 in. NPSH |
| Color | Red |
| Weight, 50 ft. | 12 lb with aluminum couplings |
| Weight, 100 ft. | 23 lb with aluminum couplings |
| Service Test Pressure | 300 PSI |
| Minimum Bend Radius | 6 in. |
| Minimum Reel Drum Size | 12 in. |
| Temperature Range | −60°F to 140°F |
Available Configurations
| Part Number | Threads / Length |
|---|---|
| 11676X50NH | 1 in. NH / 50 ft. |
| 11676X100NH | 1 in. NH / 100 ft. |
| 11676X50NPSH | 1 in. NPSH / 50 ft. |
| 11676X100NPSH | 1 in. NPSH / 100 ft. |
Ordering and Application Notes

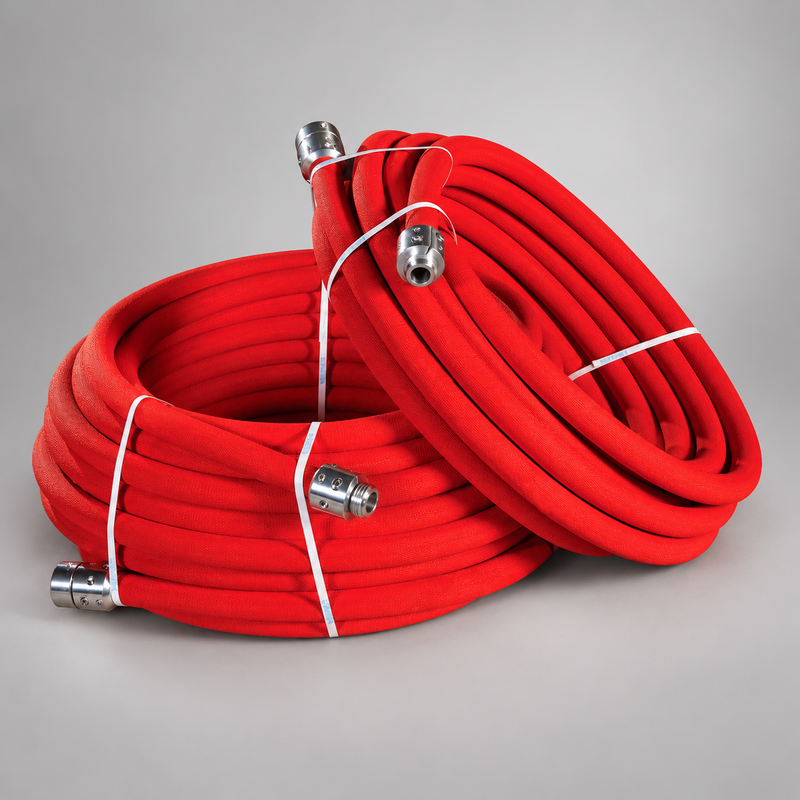

Select the thread type and length required for your equipment. Product imagery shows representative hose coils; your order is for the selected configuration.
When used with foam eductor systems, normal hose-lay limits may change. For custom-length pricing and orders, call 800-654-7049.
