Cascade High Performance Water Ejectors
Cascade High Performance Water Ejectors extend the drafting capabilities of fire pumps by using pressurized water and venturi action to draw additional water from natural or portable water sources. They are especially useful where conventional suction drafting is limited by elevation, distance, or access.
Manufactured by Cascade Fire Equipment from cast aluminum, each ejector is anodized for increased wear and corrosion resistance. Depending on operating pressure and setup, Cascade ejectors can obtain water from sources as much as 70 feet below the pump and from water supplies located several hundred feet away.
FEATURES
- Manufactured by Cascade Fire Equipment
- Cast aluminum construction
- Anodized for increased wear and corrosion resistance
- Venturi design uses pressurized water to draw in additional water
- Extends drafting capability beyond conventional suction drafting
- Capable of operating at lifts up to 70 ft. under appropriate operating conditions
- Available with NH or NPSH inlet configurations
- Standard and high-volume models available
SPECIFICATIONS

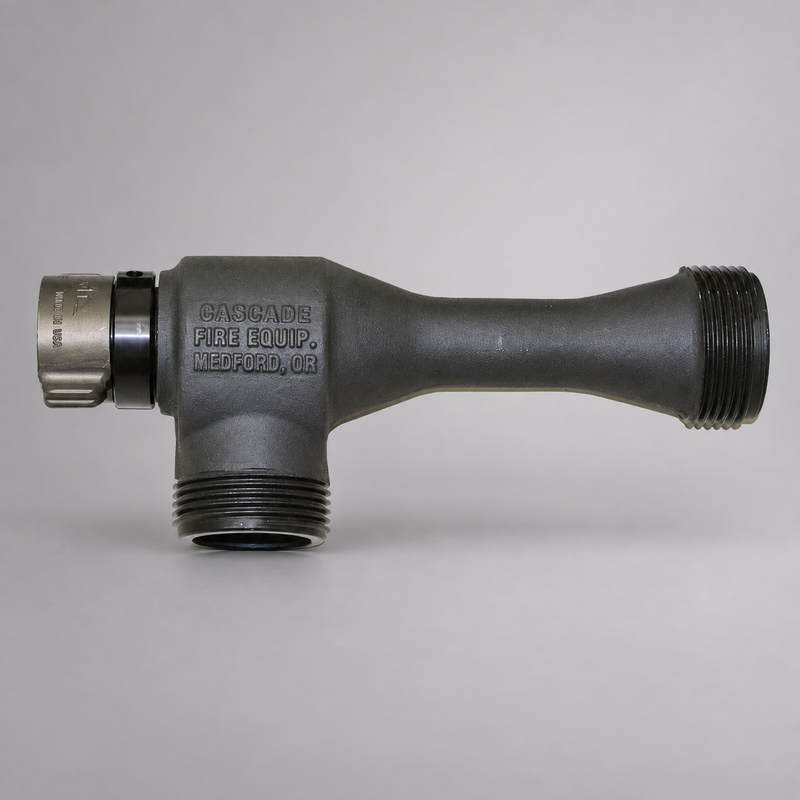

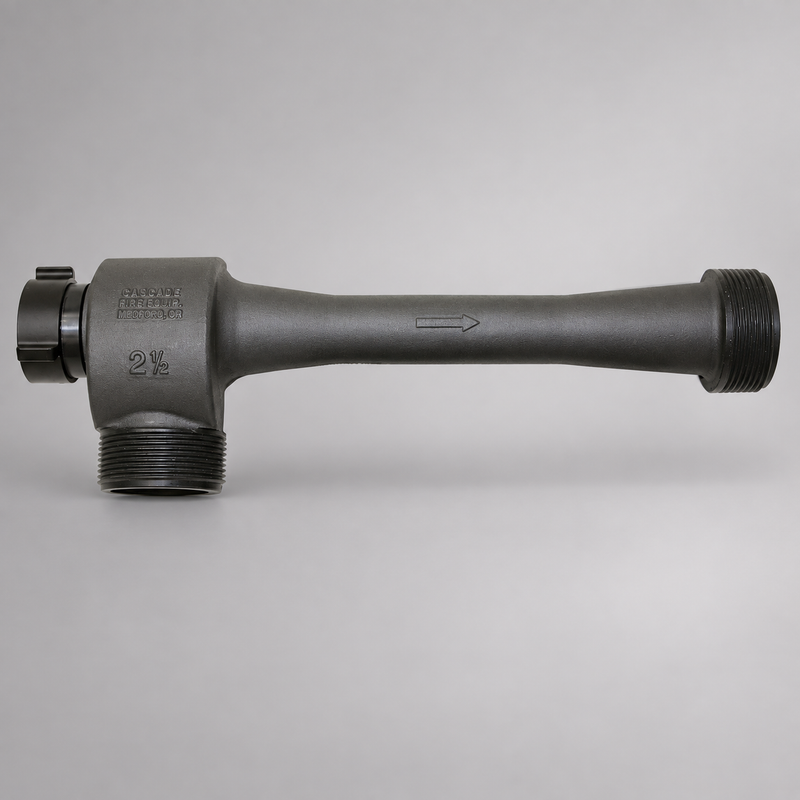

| MODEL | 14726 | 14726NH | 14727 |
|---|---|---|---|
| Inlet | 1 in. NPSH | 1 in. NH | 1-1/2 in. NH |
| Suction | 1-1/2 in. | 1-1/2 in. | 2-1/2 in. |
| Discharge | 1-1/2 in. | 1-1/2 in. | 2-1/2 in. |
| Dimensions | 9-1/2 x 2-1/2 x 3-1/2 in. | 9-1/2 x 2-1/2 x 3-1/2 in. | 18-1/4 x 4-1/2 x 5-1/2 in. |
| Weight | Approx. 1-1/4 lb. | Approx. 1-1/4 lb. | Approx. 4-3/4 lb. |
PERFORMANCE — 14726 / 14726NH
| INLET PRESSURE | INLET GPM | PICKUP GPM | DISCHARGE GPM | LIFT |
|---|---|---|---|---|
| 100 PSI | 24 | 43 | 67 | 25 ft. |
| 140 PSI | 28 | 43 | 71 | 35 ft. |
| 180 PSI | 32 | 43 | 75 | 60 ft. |
| 200 PSI | 34 | 43 | 77 | 70 ft. |
PERFORMANCE — 14727 HIGH-VOLUME EJECTOR
| INLET PRESSURE | INLET GPM | PICKUP GPM | DISCHARGE GPM | LIFT |
|---|---|---|---|---|
| 100 PSI | 76 | 133 | 209 | 25 ft. |
| 140 PSI | 88 | 133 | 221 | 35 ft. |
| 180 PSI | 100 | 133 | 233 | 60 ft. |
| 200 PSI | 107 | 133 | 240 | 70 ft. |
HOW EJECTOR DRAFTING WORKS

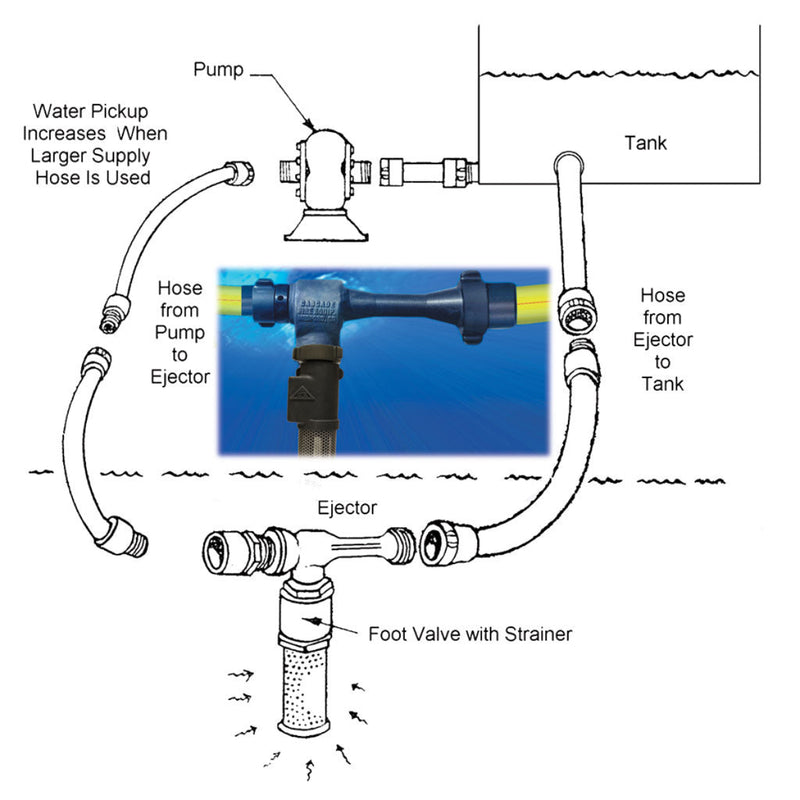

A water ejector combines a nozzle with a venturi to create suction. Pressurized water from the fire pump passes through the ejector and creates a low-pressure area that draws additional water into the system from a natural or portable water source.
This allows ejector drafting to reach water sources at greater vertical lifts and longer distances than conventional suction drafting alone.
APPLICATIONS
- Drafting from remote ponds, creeks, pools, and other static water sources
- Obtaining water from sources below the practical lift of conventional suction drafting
- Filling apparatus or portable tanks from distant water sources
- Wildland firefighting water supply operations
- Removing water from basements and other difficult-to-access areas
RECOMMENDED ACCESSORY
Cascade recommends attaching a compatible Foot Valve & Strainer to the ejector suction port. The foot valve helps maintain prime while the strainer helps prevent debris and foreign material from entering the water supply. Foot Valve & Strainer sold separately.
