Cascade Gravity Sock – 1½" NH
The Cascade Gravity Sock – 1-1/2 in. NH provides a simple, portable way to collect water from an elevated stream, spring, or other flowing water source for wildland firefighting operations.

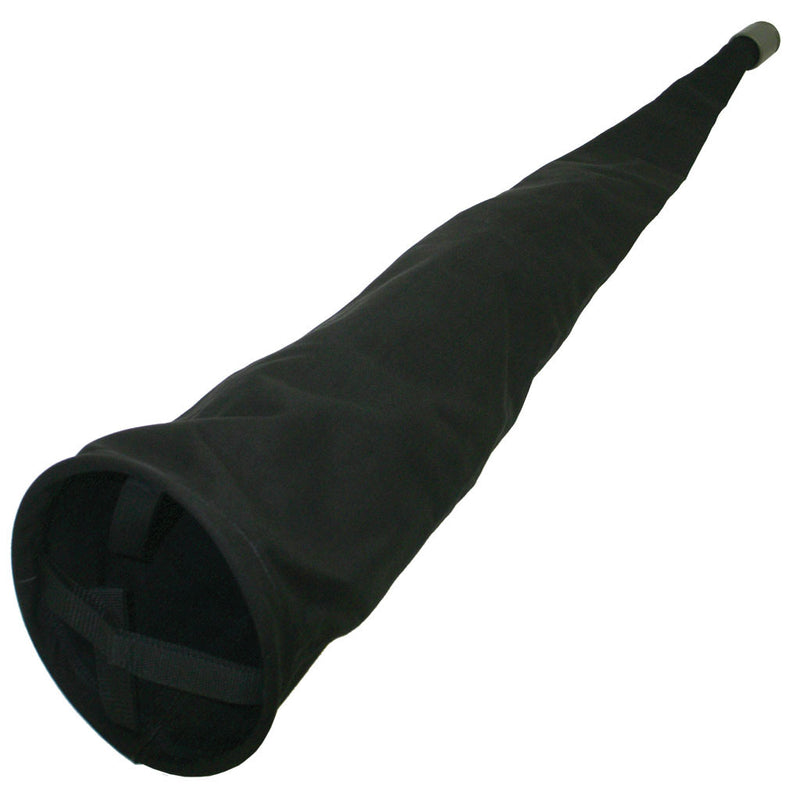

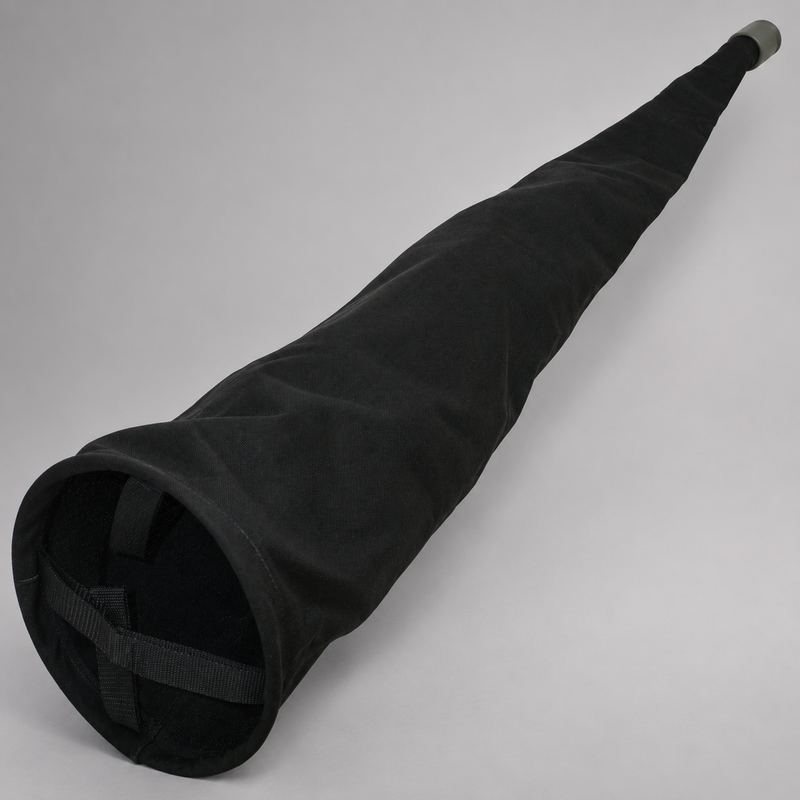

Constructed from heavy-duty treated canvas duck, the tapered sock is positioned in the water source and secured with stakes, rocks, or rope. A 1-1/2 in. NH hose line attaches to the outlet, allowing gravity to deliver water downhill toward the fire or operating area.
FEATURES
- Manufactured by Cascade Fire Equipment
- Heavy-duty treated canvas duck construction
- Designed for gravity-fed water delivery
- 9 in. diameter intake
- 42 in. overall length
- 1-1/2 in. NH male hose connection
- Can be secured at the water source with stakes, rocks, or rope
- Compact solution for utilizing naturally elevated water sources
SPECIFICATIONS
| SPECIFICATION | CASCADE GRAVITY SOCK |
|---|---|
| SKU | 11156 |
| Diameter | 9 in. |
| Length | 42 in. |
| Hose Connection | 1-1/2 in. NH male |
| Material | Heavy-duty treated canvas duck |
HOW IT WORKS
Position the wide end of the Gravity Sock in a flowing water source above the operating area and secure it with stakes, rocks, or rope. Attach a compatible 1-1/2 in. NH hose line to the outlet and use the available elevation to gravity-feed water downhill.
Cascade recommends locating the gathering point at least 100 feet above the fire when terrain and water-source conditions allow.
APPLICATIONS
- Wildland firefighting
- Remote water supply
- Streams and springs
- Gravity-fed hose operations
- Areas where pump access is limited
