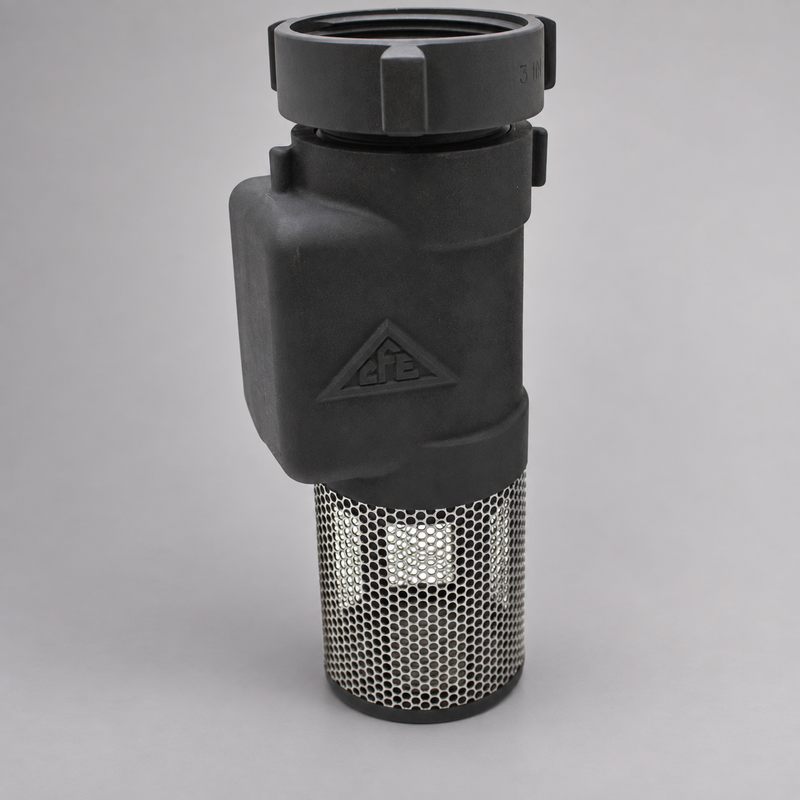

Cascade Foot Valve & Strainer
The Cascade Foot Valve & Strainer is designed for fire pump drafting applications where maintaining prime and protecting the suction system from debris are critical. Installed on the submerged end of a suction hose, the full-flow clapper valve helps prevent backflow and keeps the suction line primed when the pump is shut down.

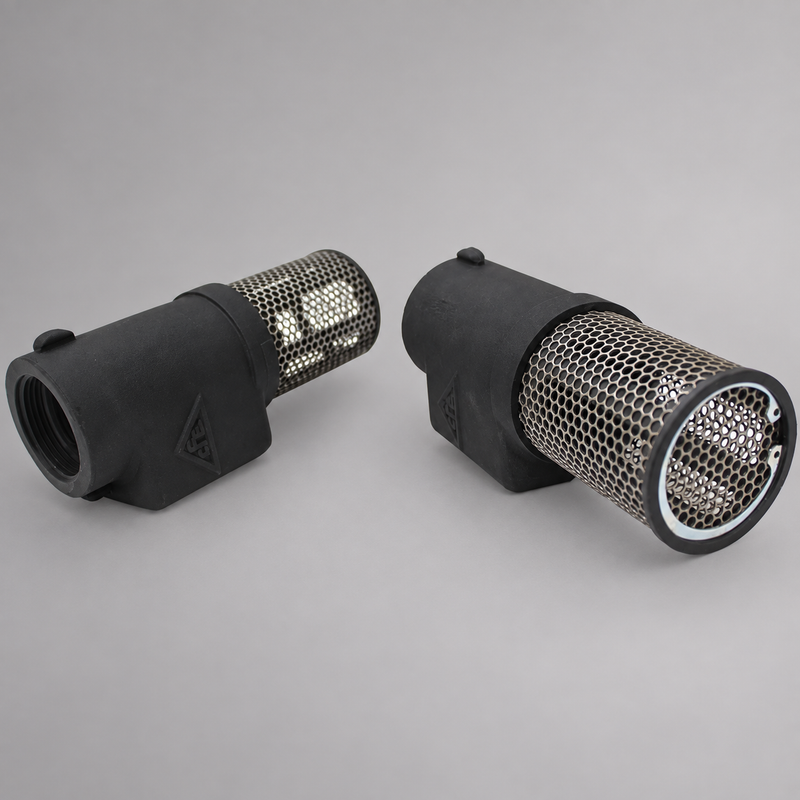

Manufactured from hard-anodized aluminum, the Cascade Foot Valve & Strainer features a reinforced stainless steel screen that helps prevent rocks, vegetation, and other debris from entering the suction hose and pump.
FEATURES
- Manufactured by Cascade Fire Equipment
- Hard-anodized aluminum construction
- Full-flow clapper valve helps maintain pump prime
- Reinforced stainless steel strainer screen
- Helps prevent debris from entering the suction hose and pump
- Available in multiple NH and NPSH thread configurations
- Recommended for use with Cascade High Performance Water Ejectors
SPECIFICATIONS
| SIZE | DIMENSIONS | WEIGHT |
|---|---|---|
| 1-1/2 in. | 7-1/2 x 3-1/2 in. | 1.6 lb. |
| 2 in. | 8-1/2 x 3-1/2 in. | 1.65 lb. |
| 2-1/2 in. | 10 x 2-1/2 in. | 3.05 lb. |
| 3 in. | 11-15/16 x 4-1/2 in. | 3.85 lb. |
AVAILABLE CONNECTIONS
- 1-1/2 in. NH
- 2 in. NPSH
- 2-1/2 in. NH
- 3 in. NH
- 3 in. NPSH
APPLICATIONS
- Fire pump drafting
- Portable tank operations
- Drafting from ponds, streams, and other static water sources
- Wildland firefighting water supply
- Cascade High Performance Water Ejector systems

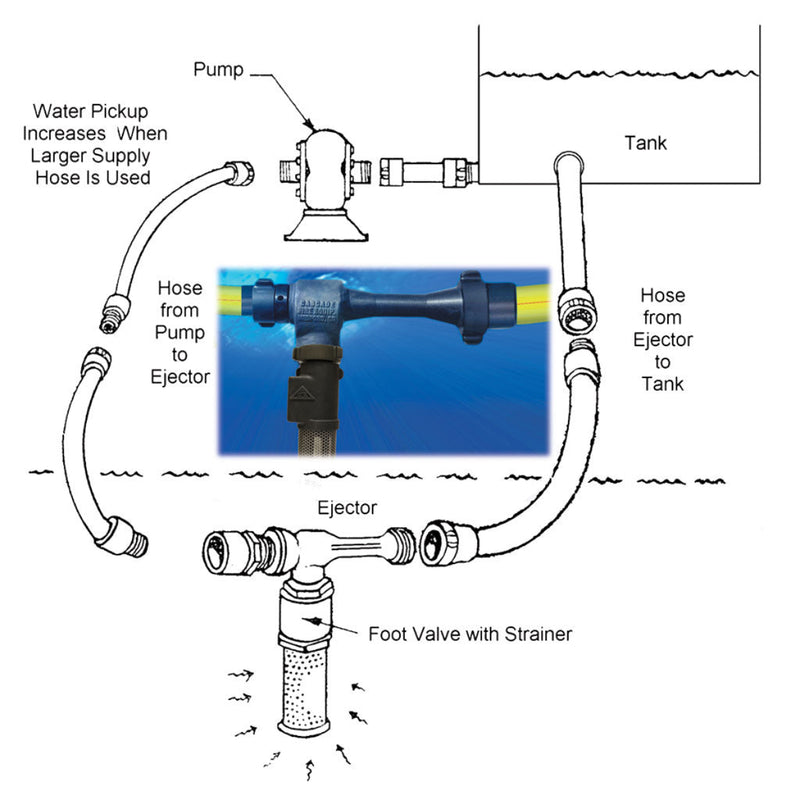

USE WITH CASCADE WATER EJECTORS
Cascade recommends attaching a compatible Foot Valve & Strainer to the suction port of a Cascade High Performance Water Ejector. The foot valve helps maintain prime while the strainer helps prevent foreign material from entering the water supply.
