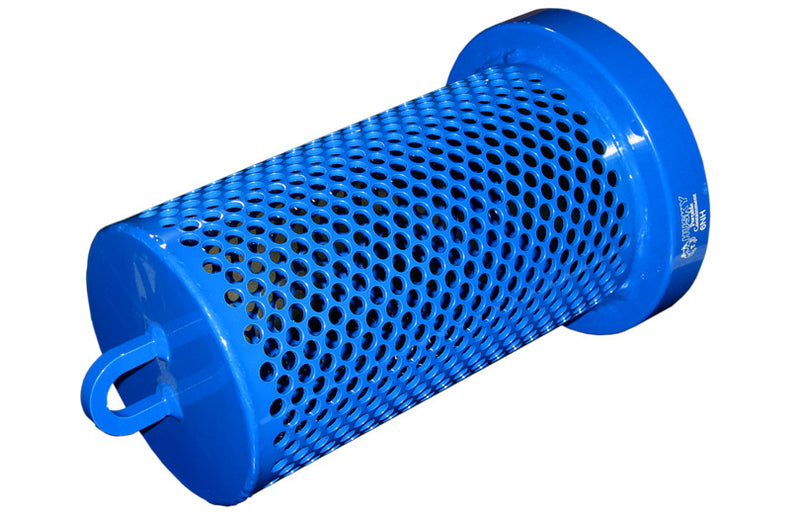

Husky Aluminum Barrel Strainer
The Husky® Aluminum Barrel Strainer provides a lightweight, durable solution for fire pump drafting from ponds, streams, portable tanks, and other static water sources. The cylindrical strainer attaches directly to hard suction hose and helps prevent rocks, vegetation, and other debris from entering the suction line and pump.
Constructed from aircraft-quality 6061-T6 aluminum, the Husky Barrel Strainer combines high strength with reduced weight for easier handling in the field. A powder-coated NFPA Blue finish provides additional corrosion resistance, while the integrated eye allows a rope or cable to be attached for positioning and retrieval.
FEATURES
- Manufactured by Husky Portable Containment
- Aircraft-quality 6061-T6 aluminum construction
- Lightweight and durable design
- Powder-coated NFPA Blue finish for added corrosion resistance

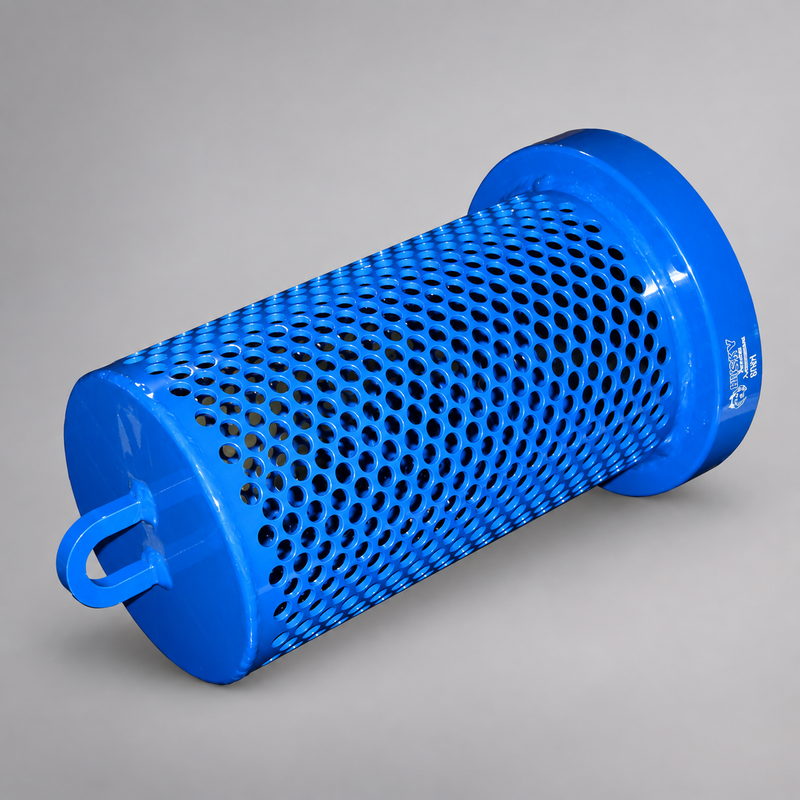

- Integrated eye for attaching a rope or cable
- Threads directly onto hard suction hose
- Designed for high-flow fire pump drafting
- NH thread configurations available
- Storz and Camlock configurations available from the manufacturer
SPECIFICATIONS
| SPECIFICATION | HUSKY BARREL STRAINER |
|---|---|
| Manufacturer | Husky Portable Containment |
| Material | 6061-T6 aluminum |
| Finish | Powder-coated NFPA Blue |
| Standard Connection | NH thread |
| Manufacturer Size Range | 2, 3, 4, 4-1/2, 5 and 6 in. |
| Optional Connections | Storz or Camlock |
| Retrieval Point | Integrated rope/cable attachment eye |
HOW TO USE
Thread the barrel strainer onto the end of a compatible hard suction hose and place the strainer into the water source. A rope or cable may be attached to the integrated eye to help position the strainer at the desired depth and retrieve it after use.
APPLICATIONS
- Fire pump drafting
- Portable tank operations
- Ponds and lakes
- Streams and creeks
- Static water sources
- Municipal and wildland firefighting
