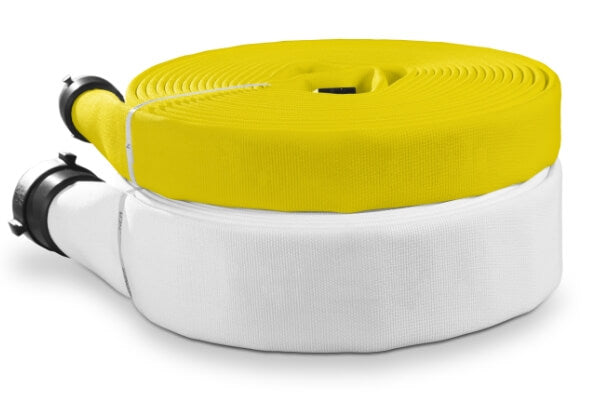

Niedner R800 Hose
PROVEN PERFORMANCE
Fire departments and emergency response teams across North
America rely on our field-proven firefighting hose technology to
combat small to large-scale fires. NIEDNER R800 is a 100%
polyester double jacket hose, lined with EPDM rubber liner for
increased durability, kink resistance and GPM flow. With a service
test pressure rating of 400 PSIG (2800 kPa), it is a popular attack line
choice and often selected for high-rise packs. The thin, heat
resistant, EPDM liner makes it lighter and more compact than most
of its rubber-lined competitors. It also has a third less bulk than
rubber-covered hoses. The ENCAP™ treated outer jacket improves
durability, reduces water absorption up to 40%, increases chemical
resistance and allows for color options.
HIGHEST LEVEL OF QUALITY
NIEDNER maintains the highest levels of quality in the design,
manufacturing, and testing of all our hose products. As a result, our
solutions exceed the recognized international standards.
UNIQUE SERVICES
Our solutions have many advantages; quality, design, and
engineering support, which is second to none.
• Abrasion and puncture resistant high pressure
performance
• Increased kink resistance and GPM flow
• Ozone, age, mildew and bacteria resistant
• Increased chemical resistance
• Made of 100% polyester
• Lined with a TPU elastomer
• ENCAP™ treated outer jacket• Lighter and more compact than most of its rubber-lined
competitors
• Reduced water absorption up to 40%
| Diameter (ID) | Spec # | Weight per 50 ft w/ couplings | Flat Width | Thickness | Coil Diameter | Coupling Bowl Size | Coupling Diameter |
|---|---|---|---|---|---|---|---|
| 1 1/2" | 4515 | 14 lb (6.35 kg) | 2.875 in (7.30 cm) | 0.30 in (0.76 cm) | 21 in (53.34 cm) | 1-15/16 in (49.2 mm) | 1-23/32 in (43.7 mm) |
| 1 3/4" | 4517 | 14.5 lb (6.58 kg) | 3.125 in (7.94 cm) | 0.33 in (0.84 cm) | 21 in (53.34 cm) | 2-1/16 in (52.4 mm) | 1-7/8 in (47.6 mm) |
| 2" | 4520 | 18 lb (8.16 kg) | 3.375 in (8.57 cm) | 0.33 in (0.84 cm) | 21 in (53.34 cm) | 2 5/16 in (58.7 mm) | 2-1/16 in (52.4 mm) |
| 2 1/2" | 4525 | 23 lb (10.43 kg) | 4.5 in (11.43 cm) | 0.33 in (0.84 cm) | 22 in (55.88 cm) | 3 in (76.2 mm) | 2-13/16 in (71.4 mm) |
| 3" | 4530 | 30 lb (13.61 kg) | 5.5 in (13.97 cm) | 0.35 in (0.89 cm) | 22 in (55.88 cm) | 3-1/2 in (88.9 mm) | 3-5/16 in (84.1 mm) |
Service Test Pressure: 400 PSI (2,800 kPa) for all sizes.
Available Colors: White, Green, Red, Orange, Blue, Beige-Tan, Purple, Yellow.
