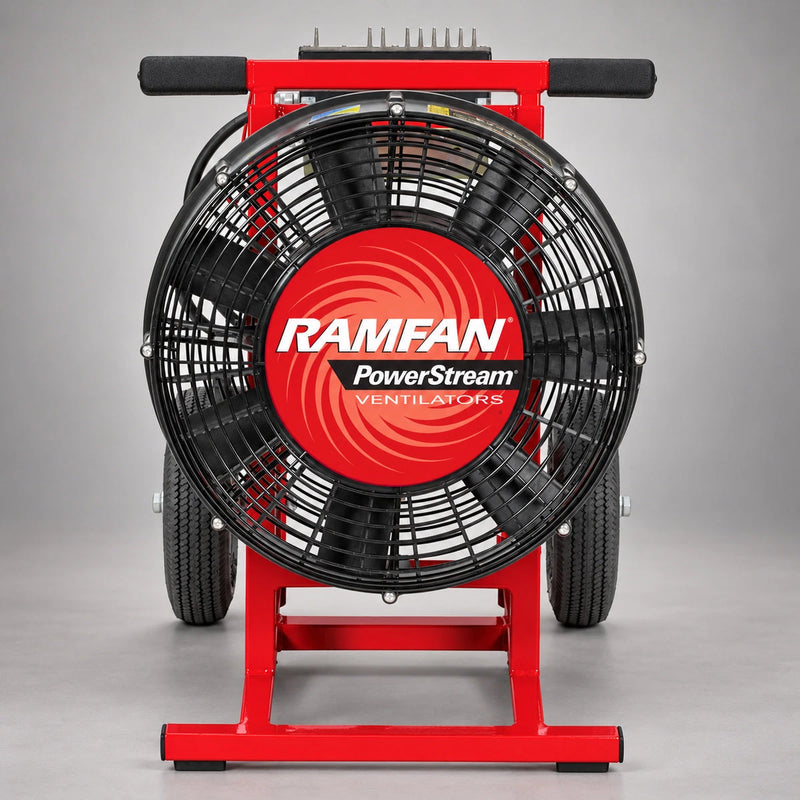

RAMFAN EX400 16" Variable-Speed Electric PPV Fan
Original price
$4,655.00
-
Original price
$4,655.00
Original price
$4,655.00
$4,655.00
-
$4,655.00
Current price
$4,655.00
SKU EB80600
The RAMFAN EX400 is a 16-inch electric positive-pressure ventilation fan with adjustable speed and PowerStream® air straighteners. Selectable 15A or 20A operation accommodates different power sources.
Features
- IntelliSense™ water-resistant speed controls adjust airflow from zero to maximum.
- PowerStream® air straighteners focus the discharge air.
- Precision-balanced TurboForce™ impeller.
- Retractable transport handle and WIDE-Trac semi-pneumatic tires.
- Adjustable 0–20° tilt.
Specifications
| Specification | Details |
|---|---|
| Model / part number | EX400 / EB80600 |
| Fan size | 16 in. (40 cm) |
| Motor | 1.5 hp / 1.1 kW |
| Electrical supply | 115V, single phase, 60Hz |
| Selectable running current | 15A or 20A |
| Impeller | 7 blades |
| Dimensions (H Ă— W Ă— D) | 22.6 Ă— 17.4 Ă— 18.5 in. (57 Ă— 44 Ă— 47 cm) |
| Weight | 68 lb. (31 kg) |
Power Options
The dual-current switch supports operation from a 20A GFCI apparatus circuit, a 15A building circuit or a 2kW generator, as specified by RAMFAN. Select the appropriate setting for the power supply.
