Hand Rail

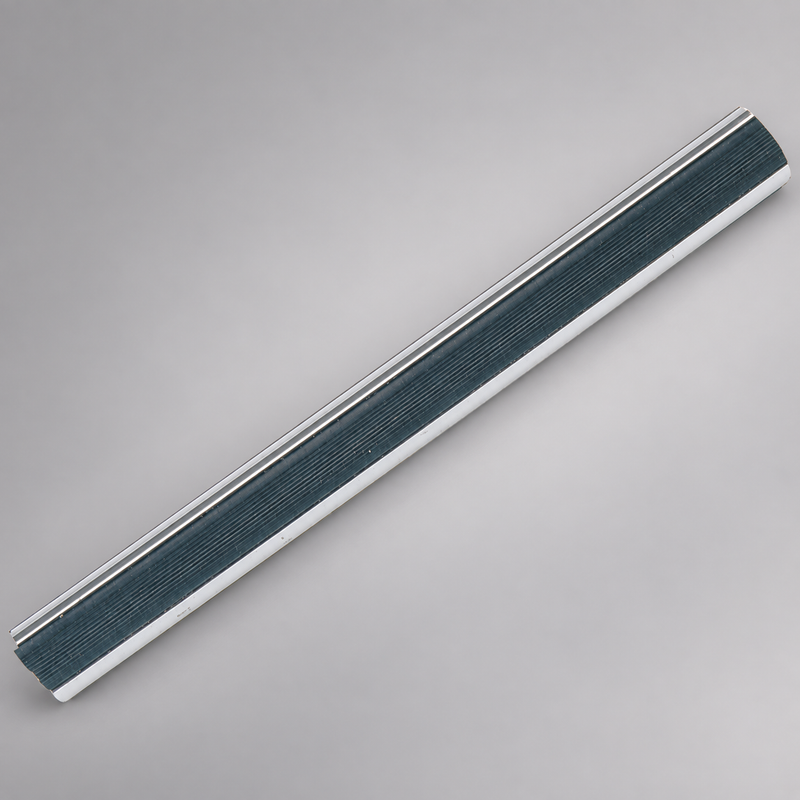

The Moore Industrial 1-1/4 in. Fire Apparatus Hand Rail provides a durable, easy-to-grip handhold for fire apparatus, rescue vehicles, utility bodies, and other emergency vehicle applications.
Constructed from extruded polished aluminum, the rail features a rubber insert that provides an improved gripping surface while maintaining a clean, professional apparatus-ready appearance. The 1-1/4 in. outside diameter is designed for use with compatible fire apparatus grab rail mounting brackets.
FEATURES
- Extruded aluminum construction
- Polished aluminum finish
- Rubber grip insert
- 1-1/4 in. outside diameter
- Designed for fire apparatus and emergency vehicle applications
- Available in lengths from 1 ft. through 6 ft.
- Compatible with standard 1-1/4 in. O.D. grab rail brackets
SPECIFICATIONS
| SPECIFICATION | HAND RAIL |
|---|---|
| Manufacturer | Moore Industrial Hardware |
| Cascade Catalog SKU | 10368 |
| Material | Extruded aluminum |
| Finish | Polished aluminum |
| Grip | Rubber insert |
| Outside Diameter | 1-1/4 in. |
| Available Lengths | 1, 2, 3, 4, 5, or 6 ft. |
| Maximum Length | 6 ft. |

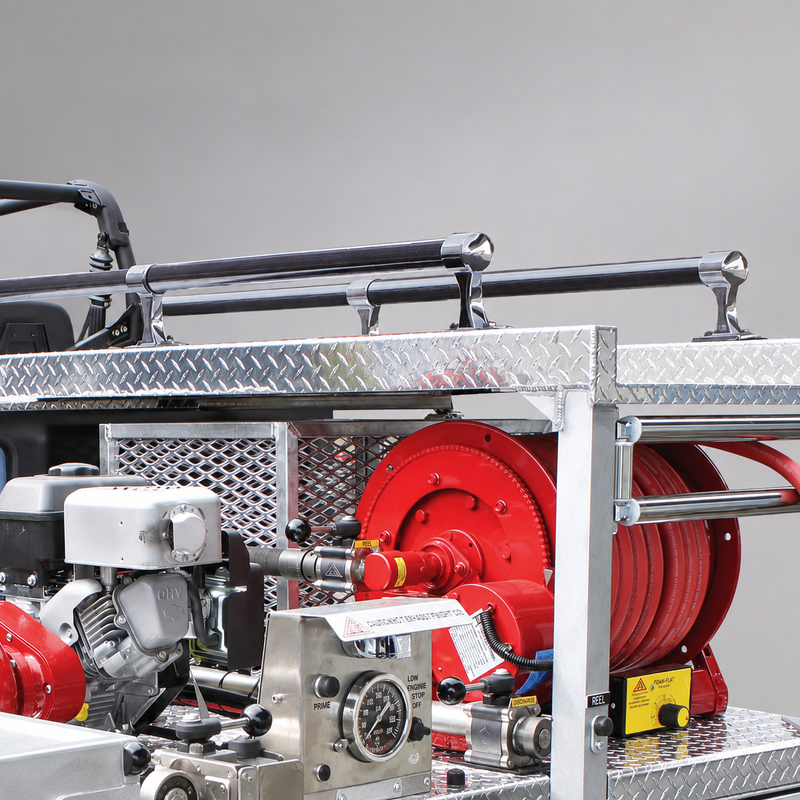

FIRE APPARATUS APPLICATIONS
Hand rails provide firefighters and apparatus operators with a secure gripping surface when accessing compartments, steps, walkways, hose beds, and other areas of an emergency vehicle. Select the appropriate rail length and compatible mounting brackets for the installation.
COMPATIBLE BRACKETS
This 1-1/4 in. O.D. hand rail is compatible with grab rail brackets designed for standard 1-1/4 in. outside-diameter rail, including the South Park ZRB57 center-mount and end-mount brackets offered by Cascade Fire Equipment.
