RESQTEC RAVE Automatic Vehicle Stabilization Strut
Original price
$2,695.00
-
Original price
$2,695.00
Original price
$2,695.00
$2,695.00
-
$2,695.00
Current price
$2,695.00
SKU RAVE

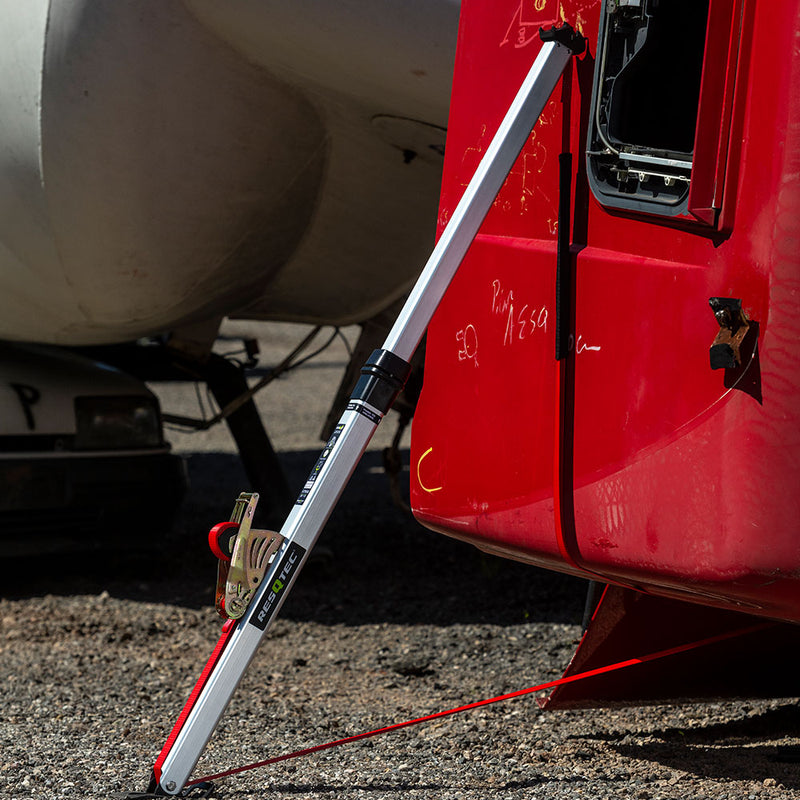

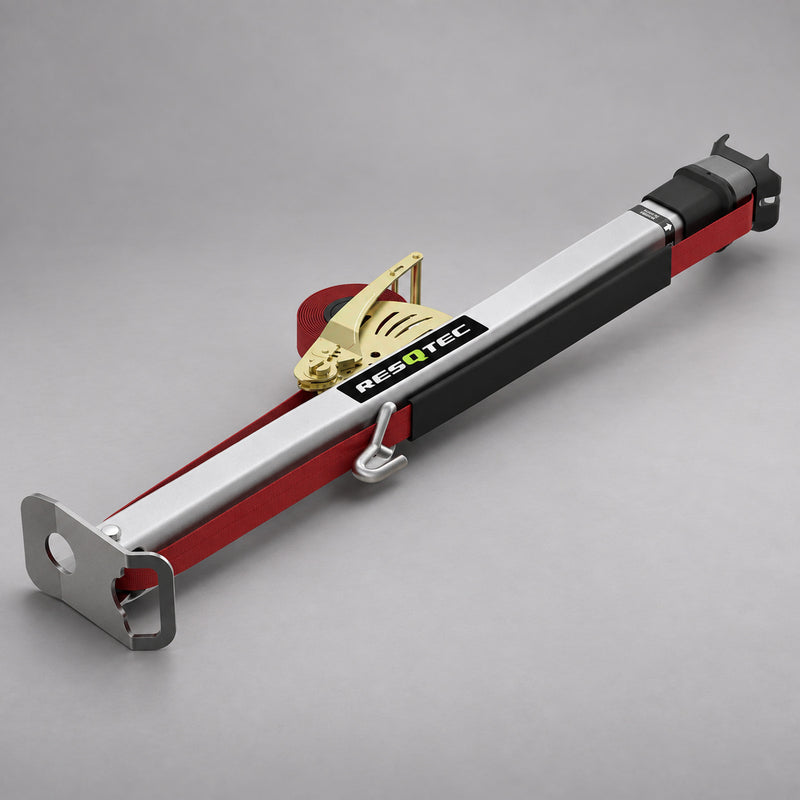

The RESQTEC RAVE Strut is an automatic-locking vehicle stabilization strut with a rotating multi-function head and an integrated retracting ratchet strap. Its compact stored size and quick extension help crews position stabilization equipment efficiently.
Features

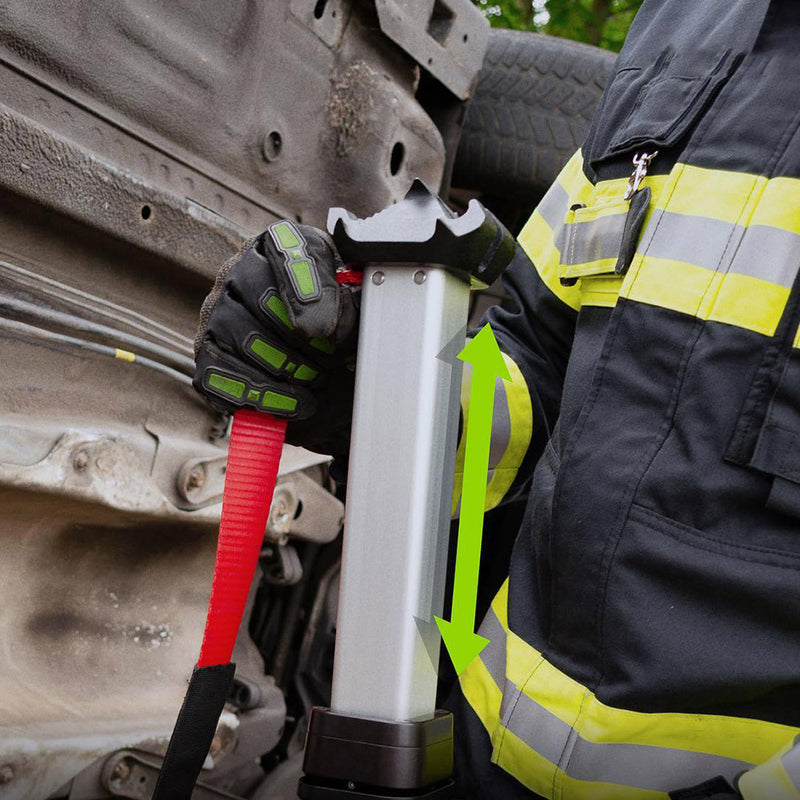

- Automatic locking as the strut extends.

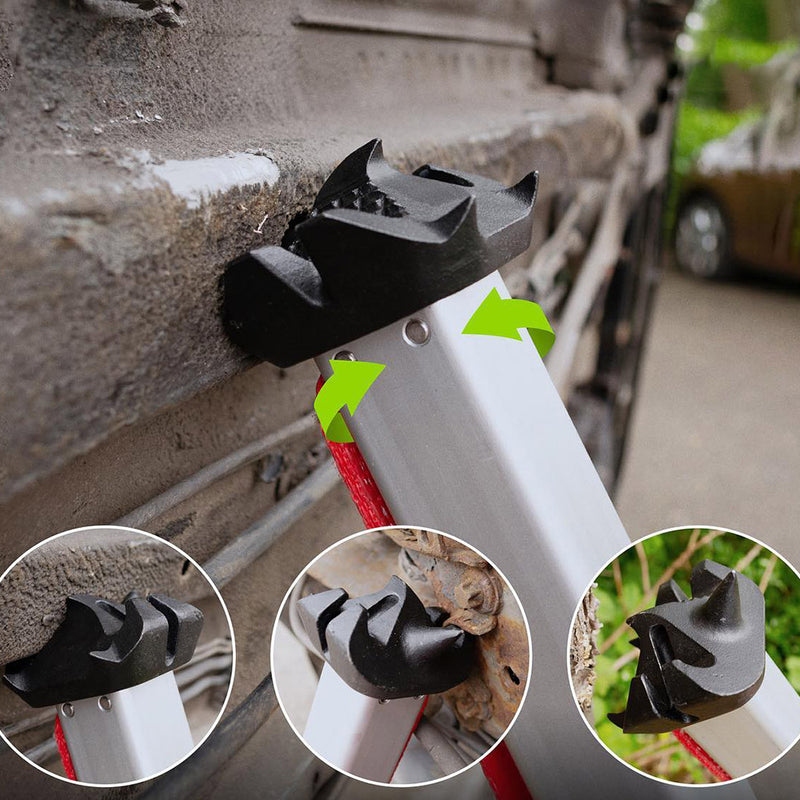

- Four head functions in one rotating head.
- Integrated auto roll-up ratchet strap.
- Protective heat sleeve for the strap.

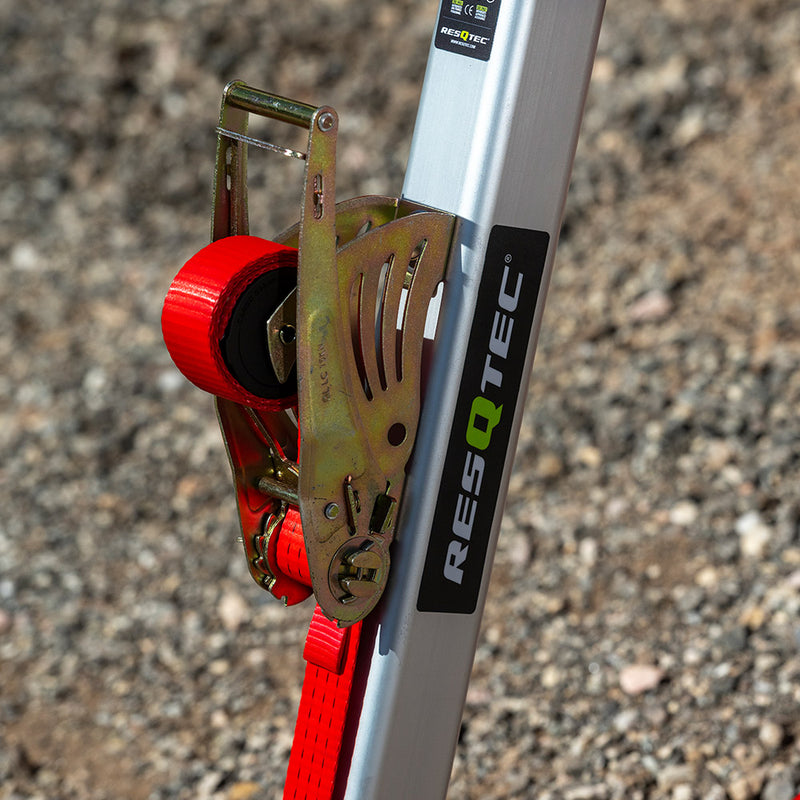

- Easy-release mechanism.

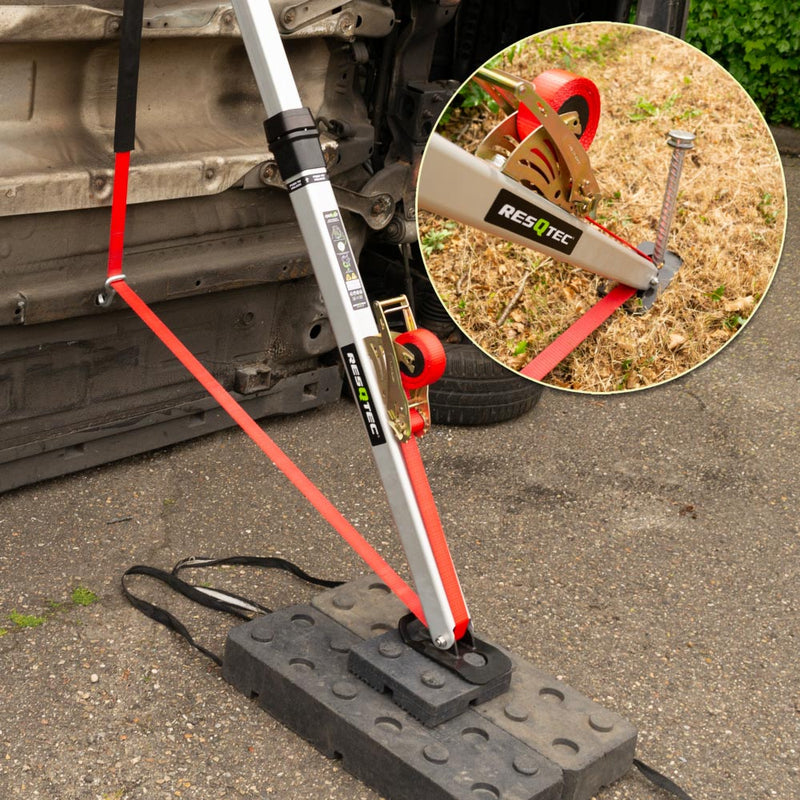

- Base integrates with compatible Cribblocks and earth nails.
- Compatible with the RESQTEC ProFix Max system.
Specifications
| Specification | RAVE Strut |
|---|---|
| Weight | 19 lb (8.6 kg) |
| Stored dimensions (L × W × H) | 41 × 8.7 × 4.3 in. (1,045 × 220 × 110 mm) |
| Extension span | Approximately 40–71 in. (1,020–1,810 mm) |
| Rated capacity at 90° | 5,511 lb (2,500 kg), with a 2:1 safety factor |
| SKU | RAVE |
Configuration
Load capacity depends on installation angle and setup; follow the rating and instructions supplied with the strut. Cribblocks and earth nails shown in application photos are accessories. Contact us to confirm the supplied configuration.
