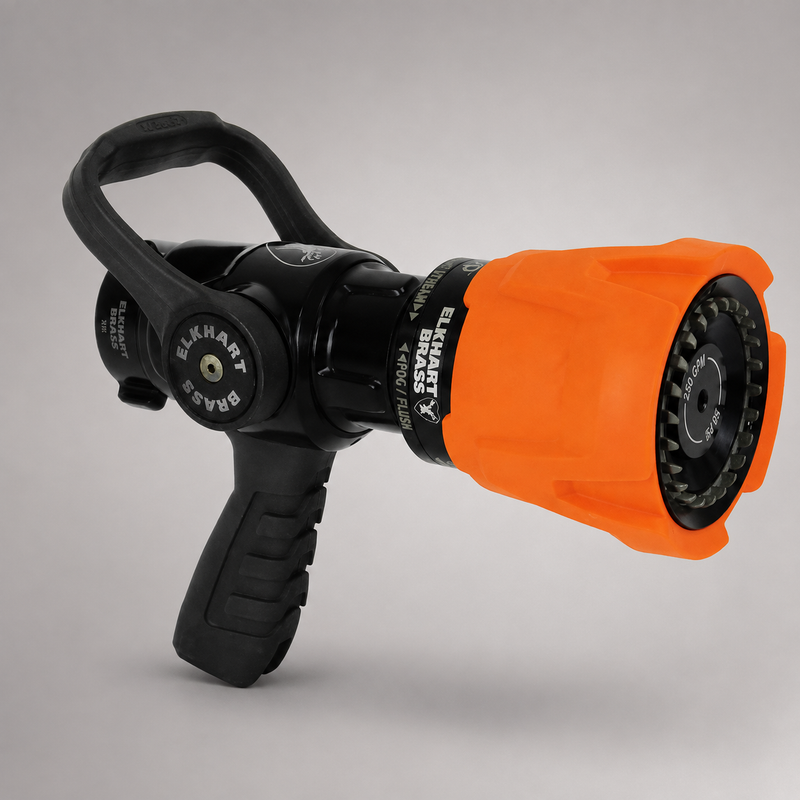

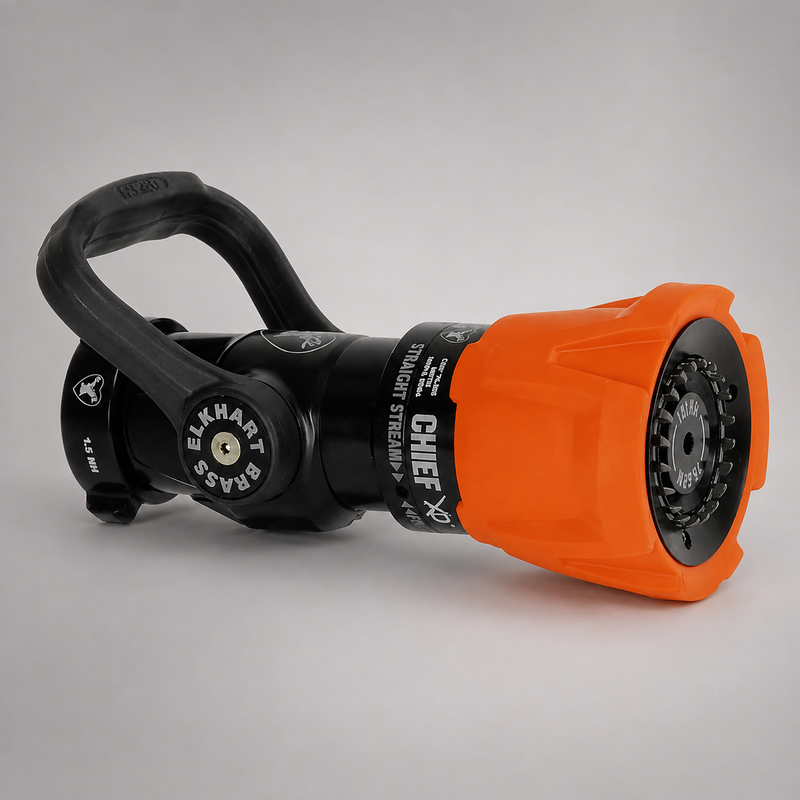

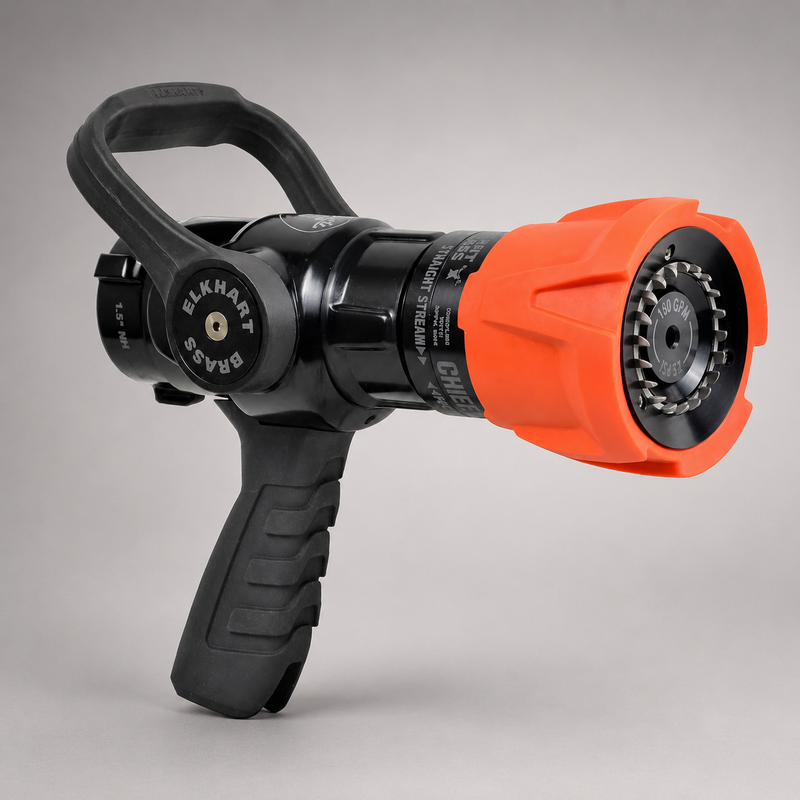

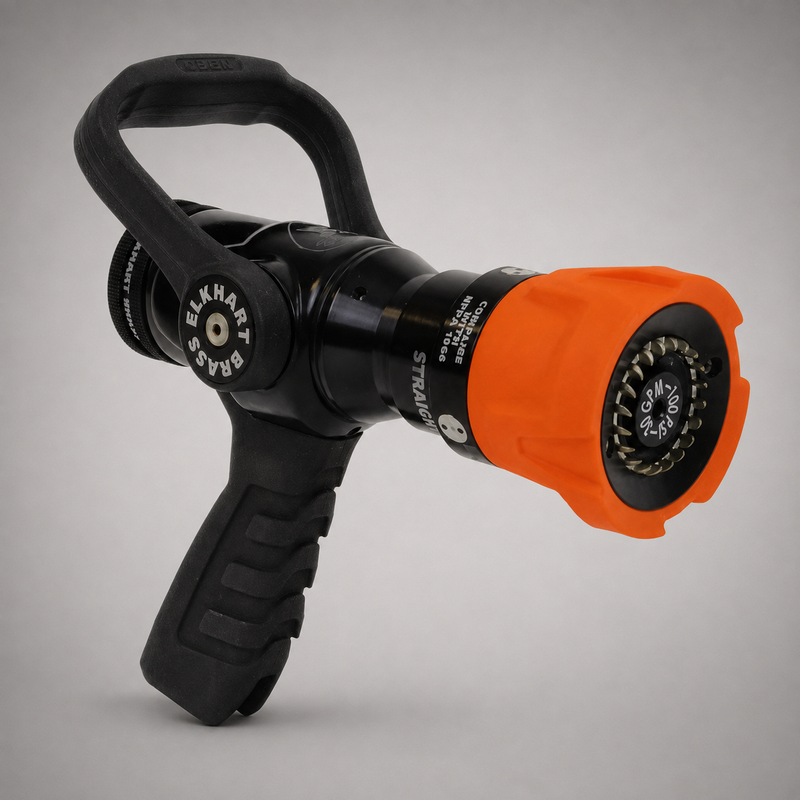

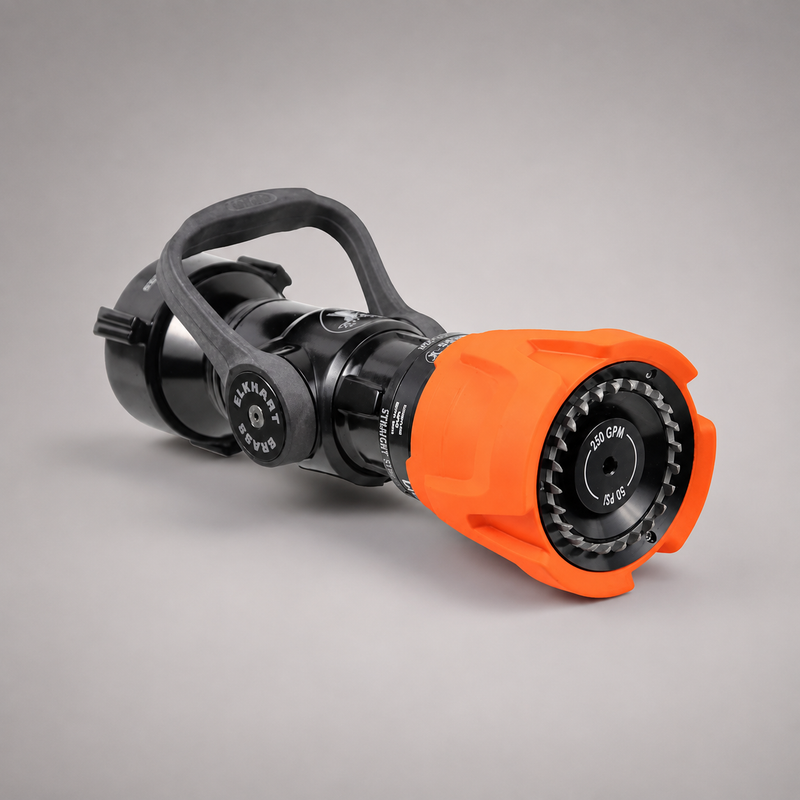

Elkhart Brass Chief XD® Nozzles
Original price
$1,068.00
-
Original price
$1,349.00
Original price
$1,068.00
$1,068.00
-
$1,349.00
Current price
$1,068.00
SKU
Elkhart Brass Chief XD® fixed-flow handline nozzles combine a shutoff with a fog nozzle tip. Select the inlet and waterway configuration, pistol-grip option, and rated flow/pressure combination for your setup.
FEATURES
- Forged metal bale handle
- Free-swivel inlet
- Options with or without a pistol grip
- Permanent markings instead of adhesive labels
INLET & WATERWAY OPTIONS
| RANGE | INLET | WATERWAY |
|---|---|---|

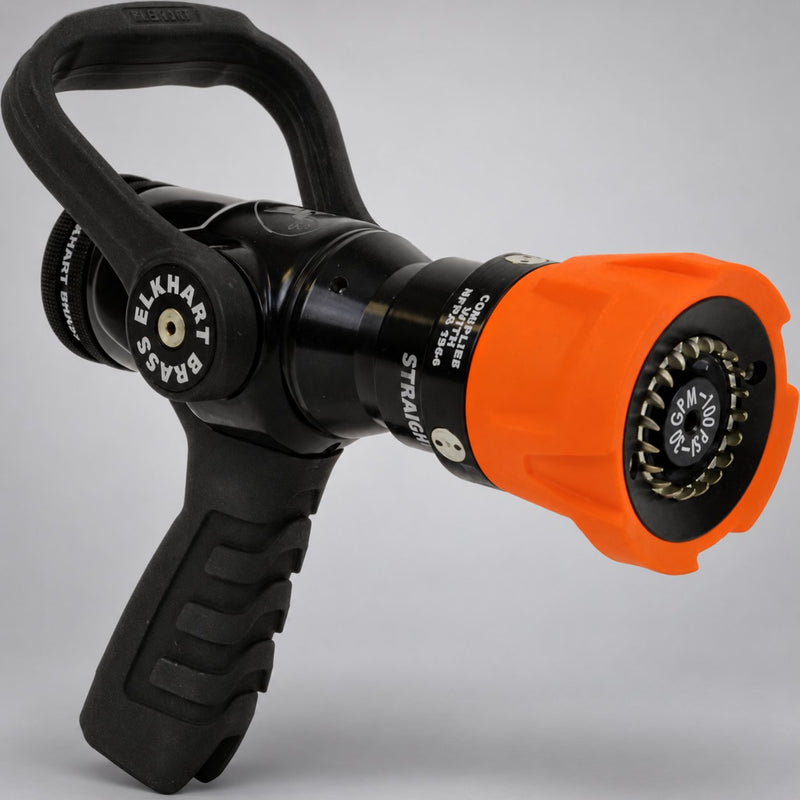

| Low-range | 1 in. | 1 in. |
| Mid/low-range | 1½ in. | 1 in. |

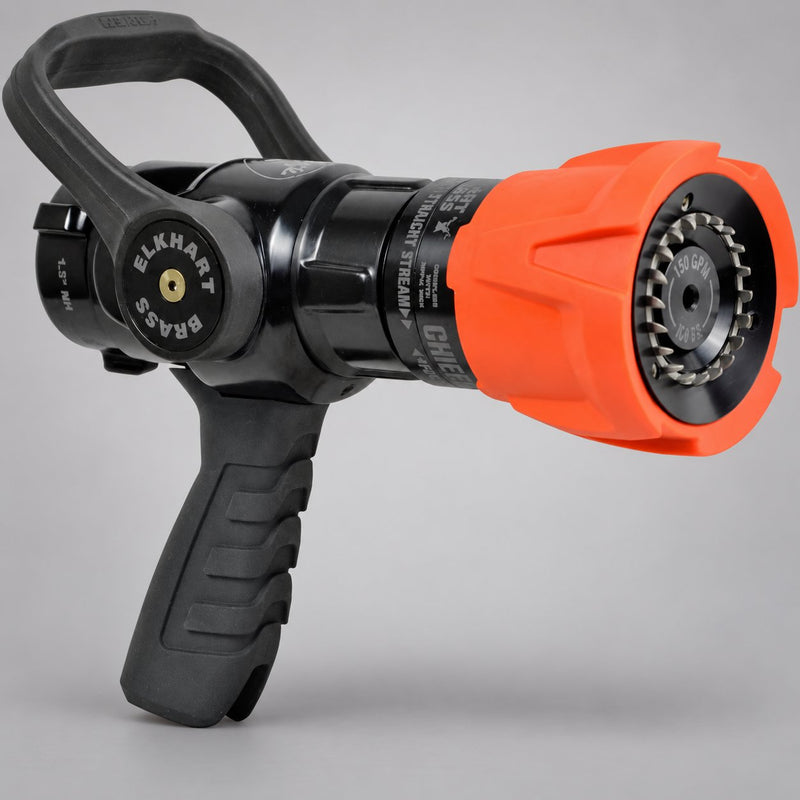

| Mid-range | 1½ in. | 1⅜ in. |

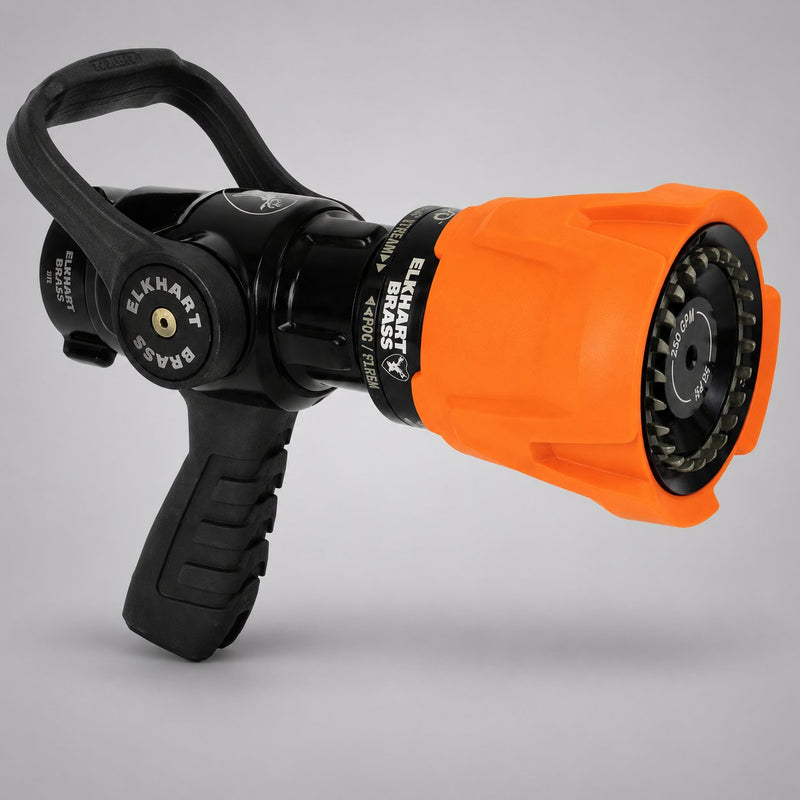

| High-range | 1½ in. | 1⅜ in. |

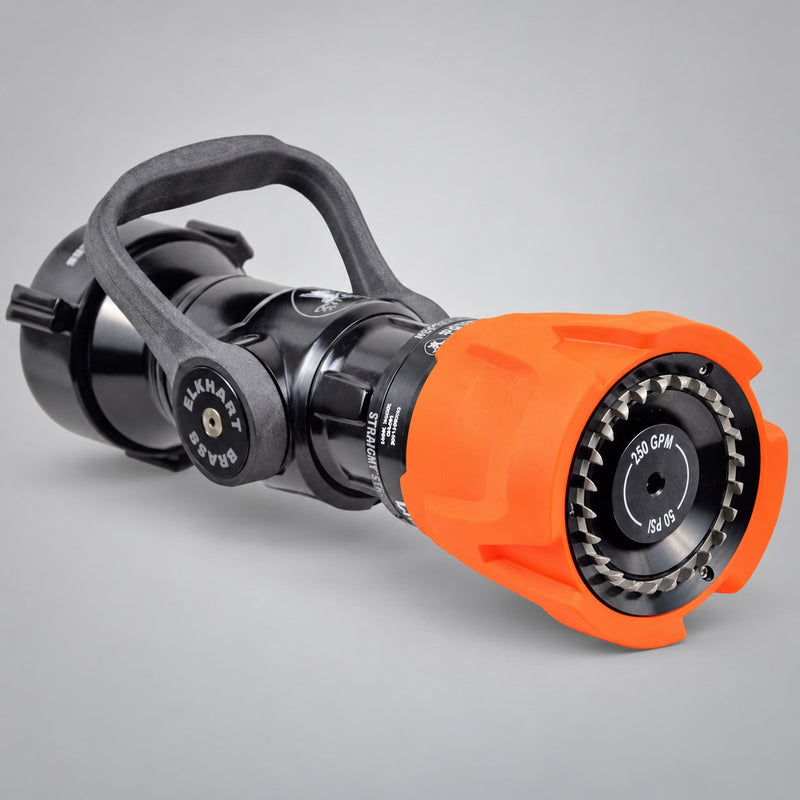

| High-range | 2½ in. | 1⅜ in. |
FLOW & PRESSURE OPTIONS
| RANGE | 50 PSI (GPM) | 75 PSI (GPM) | 100 PSI (GPM) |
|---|---|---|---|
| Low-range | — | — | 15, 30, 45, 60 |
| Mid/low-range | — | 125 | 95, 125, 150 |
| Mid-range | 150, 160, 175 | 125, 150, 175, 185 | 95, 125, 150, 175 |
| High-range (both inlets) | 185, 210, 250, 265 | 250, 300 | 250 |
Values above reflect the options listed on this page. Each nozzle has a fixed rated flow at its specified nozzle pressure.
