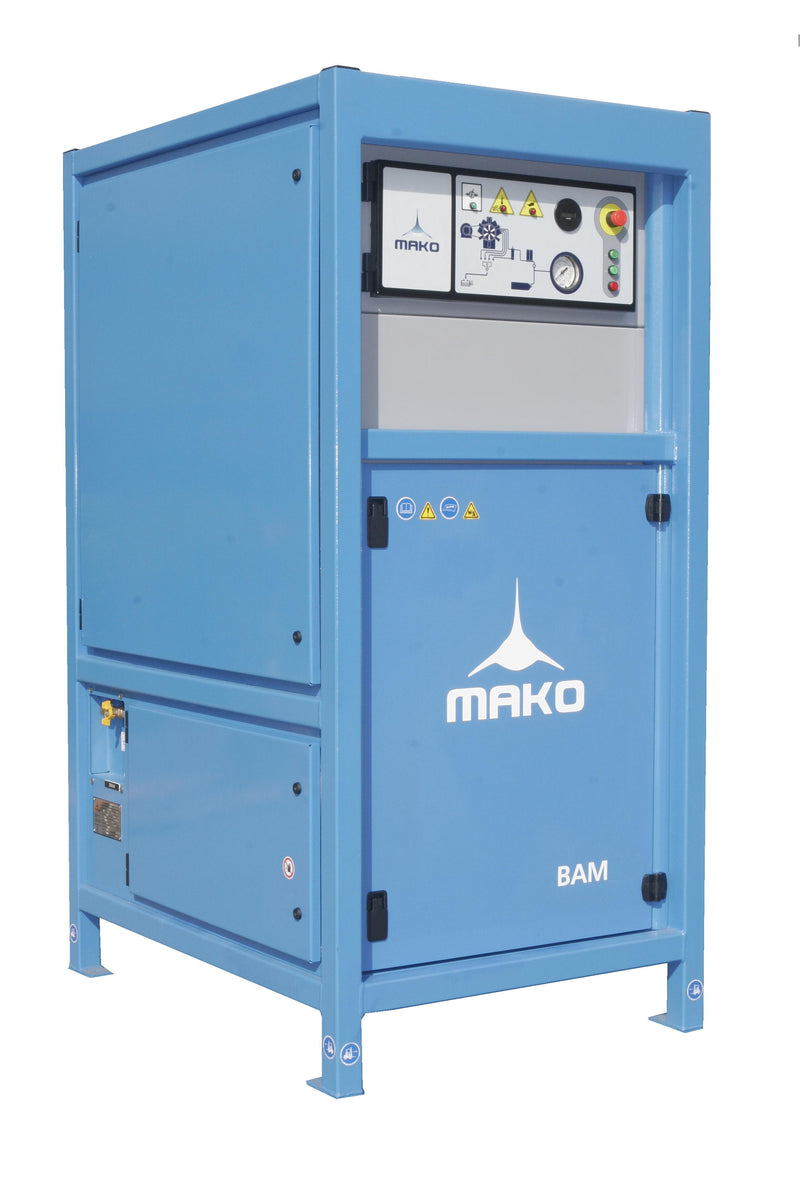

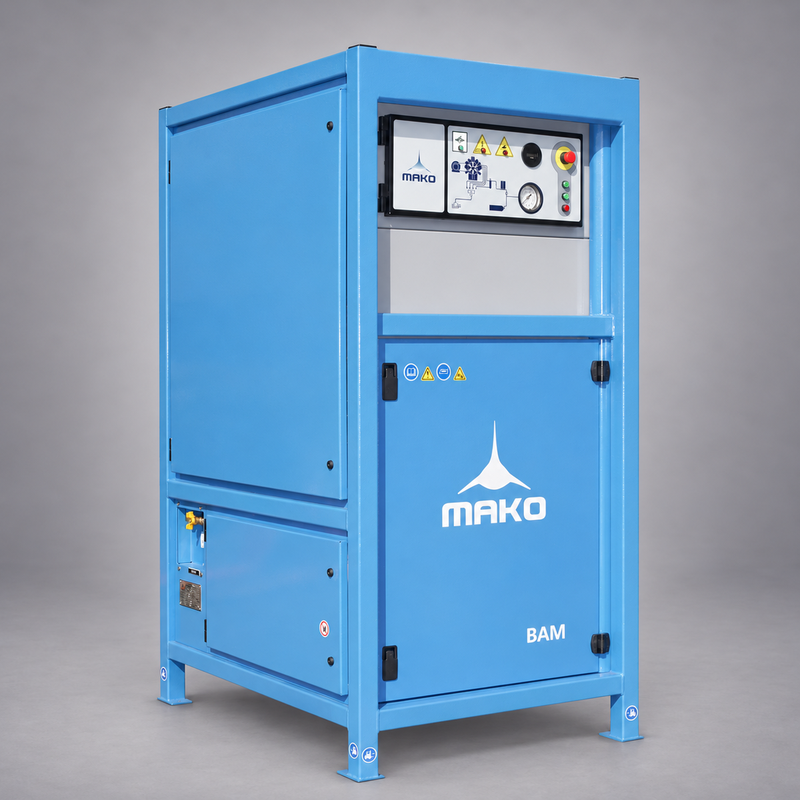

The MAKO Breathing Air Module (BAM) is a stationary, sound-attenuated breathing-air compressor series designed for high-capacity SCBA and SCUBA cylinder filling. Its vertical, modular enclosure can be installed against a wall, while multiple service doors provide access to internal components for inspection and maintenance.
Key Features
- Industrial-duty three- or four-stage compressor block, depending on model
- Fully enclosed, sound-attenuating cabinet with a heavy-duty powder-coated finish
- Fully automatic control system with interstage and final-stage pressure gauges
- Automatic condensate drain with muffler and collection reservoir
- UL-listed NEMA 12 electrical enclosure
- MAKO breathing-air purification system sized by model
- Integrated or wall-mounted carbon monoxide and moisture monitoring available
Available Models
| Model | Specifications |
|---|---|
| BAM04 | 5,000 psi; 3 stages; 5.8 CFM; 5 HP; 1,017 lb; 69 dBA |
| BAM05 | 5,000 psi; 3 stages; 8.6 CFM; 7.5 HP; 1,039 lb; 70 dBA |
| BAM06X | 6,000 psi; 4 stages; 10.2 CFM; 7.5 HP; 1,070 lb; 72 dBA |
| BAM06H | 6,000 psi; 4 stages; 14 CFM; 10 HP; 1,160 lb; 72 dBA |
| BAM07H | 6,000 psi; 4 stages; 20.7 CFM; 15 HP; 1,193 lb; 74 dBA |
| BAM08H | 6,000 psi; 4 stages; 27 CFM; 20 HP; 1,270 lb; 76 dBA |
| BAM09H | 6,000 psi; 4 stages; 33.2 CFM; 25 HP; 1,305 lb; 78 dBA |
Dimensions & Purification
| Configuration | Details |
|---|---|
| BAM04–BAM07H dimensions | 31.25 × 42 × 65.75 in. (W × D × H) |
| BAM08H–BAM09H dimensions | 31.25 × 50 × 65.75 in. (W × D × H) |
| Standard purification | MK2C on BAM04–BAM06H; MK5C on BAM07H–BAM09H |
| Purification upgrades | MK5C or MK10C on BAM04–BAM06H; MK10C on BAM07H–BAM09H |
Configuration & Ordering
Motor voltage, phase, purification, monitoring, pressure, and accessory requirements vary by installation. Contact Cascade Fire Equipment to configure the correct MAKO BAM system and request a quote.
Important: Installation, operation, air-quality testing, and maintenance must follow the current MAKO instructions and all applicable workplace and respiratory-protection requirements.
